HIQ-3416 on hiQview.com:
HIQ-3416

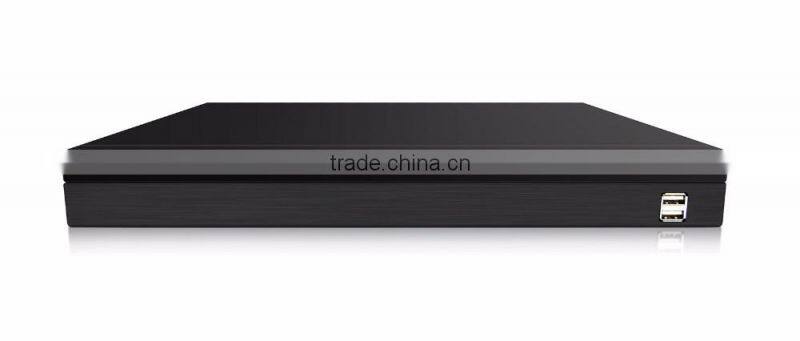

Local Display 16 Channel PoE Network Video Recorder
FEATURES:
* Max. 16CH live view & playback
* 8 PoE ports with max. 72W power output
* Max. 8Mp for each channel
* Max. 76Mbps throughput
* Max. internal storage 18TB (6TB x 3)
* SATA III x 3 or SATA III x 2 + eSATA x 1
* RAID 1, 5 (optional)
* Max. 10 online users
* Support dual monitors via VGA & HDMI
* Support USB keyboard and mouse
* Support multi-stream with dynamic display
* Support DHCP server/client
* Support Apple Mac Safari browser
* Support S.M.A.R.T HDD detection
* IP Camera smart search
* Playback smart search
* Manual, schedule or alarm trigger recording
* Manual or schedule backup to Samba/FTP
* Plug & play for easy installation
* Export playback videos as AVI
* Two-way audio, G.711, G.726, AAC, PCM
* Free CMS
| System | |
| Operation System | Embedded Linux |
| Client Reqirement | Windows IE 11 or above / Chrome / Firefox / Mac Safari |
| Max. Online Users | 10 |
| LEDs | Power / REC / Event / Alarm / Channel 1~8 |
| Power Input | AC100~240V |
| Dimensions | 36cm x 4.4cm x 30.1cm (W x H x D), 1U |
| Weight | 2.2kg |
| Operating Temp. | 0 - 45 ℃ / 32~113 F |
| Remote APP | iOS / Android |
| CMS Software | Free |
| Storage & Backup | |
| HDD | SATA III x3 or SATA III x2 + eSATA x1 |
| RAID | RAID 1, 5 (optional) |
| External Backup Device | Locol USB backup, Remote backup via web browser, Samba, FTP, Google Drive, Dropbox |
| Connectors | |
| WAN Ethernet | 10/100/1000 Mbps x1 |
| LAN Ethernet / PoE | 10/100 Mbps x8, Max. 72W power output |
| Video | HDMI output x1, VGA output x1 |
| Audio | 3.5∅ Stearo Jack, Audio in x1 / out x1 |
| USB | USB2.0 x3 |
| Alarm | 4 Alarm in / 1 Relay out |
| RS485 | D+, D- |
| IP Camera | |
| Adding Cameras | Manual or Smart Camera Search |
| Max. Channels | 16 |
| ONVIF | Suport ONVIF Profile S |
| Support Brands | hiQview / Aeromax / Asoni / Axis / Certis / Dahua / D-Link / DynaColor / Etrovision / Hikvision / IQInvision / Qihan / Sony / Vivotech / Zavio |
| Video / Audio | |
| Video Format | H.264 / MPEG4 / MJEPG |
| Video Resolution | Up to 8 Megapixel |
| Audio Format | G711 / G726 / AAC / PCM |
| Max. Throughput | 76Mbps |
| Live View | |
| Control | Manual recording, OSD, Snapshot, Image Process, Backup |
| Split Screen | 1 / 4 / 9 / 10 / 13 / 16 |
| Display Mode | Full Sreen / Auto Scan / Actual Size |
| PTZ Support | Digital PTZ / Preset point / Patrol / Auto Pan |
| Recording and Playback | |
| Recording Mode | Continuous / Manual / Schedule / Event (GPIO/ Motion/ System) |
| Pre-alarm Recording | 5-60 sec. |
| Playback Search | Smart search / Time search / Event search |
| Export Format | AVI |
