HIQ-5183

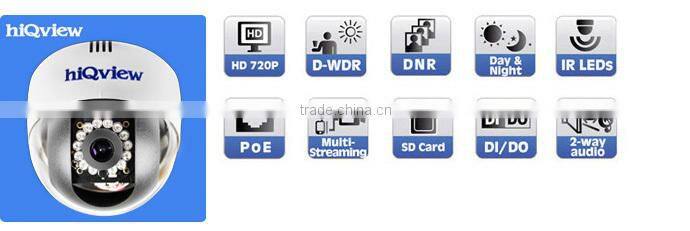

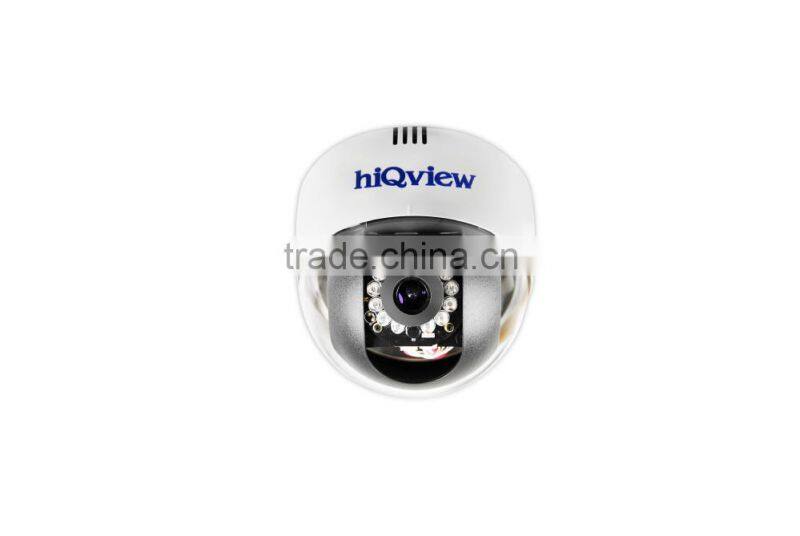

Megapixel IR-15M Dome IP Camera
Features
* Max. Resolution: 1280 X 800
* High definition 30 fps @ 720p real-time
* IR Distance: 15M, 14pcs IR LEDs
* 2.8mm F1.8 fixed lens
* Digital Wide Dynamic Range (D-WDR)
* 3D and 2D Digital Noise Reduction (DNR)
* Day & Night Switch Time Control Manually
* Power over Ethernet
* Mechanism IR Cut filter for day & night
* H.264/ M-JPEG Compression
* Triple Streaming
* Shutter Speed and Sense Up Adjustable
* SD card backup
* Support mobile phone remote monitoring
* Free bundled 64 CH recording software
Specifications
| Camera | |
| Image Sensor | 1 / 4” Megapixel CMOS sensor |
| Sensor Resolutions | Megapixel |
| Max. Resolutions | 1280*800 |
| Sensitivity | Color : 0.2 Lux (AGC ON), B / W: 0.1 Lux (AGC ON) |
| Lens Type | 2.8mm @ F1.8 |
| Shutter Speed | 1/5 ~ 1/10000s |
| ICR | Mechanism IR Cut Filter |
| LED | 14 pcs IR LEDs, 850nm |
| IR Distance | 15M |
| Angle of View | Horizontal:77.79° |
| Veritical:49.55° | |
| Video/Audio | |
| Compression Format | H.264/M-JPEG |
| Video Profile | 1280*800/ 1280*720/ 640*480/ 320*240/ 176*144 |
| Frame Rate | 30fps @ 1280*800 |
| 30fps @ 1280*720 | |
| 30fps @ 640*480 | |
| 30fps @ 320*240 | |
| 30fps @ 176*144 | |
| Triple Streaming | Yes |
| Image Snapshot | Yes |
| Full Screen Monitoring | Yes |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness, AGC, Shutter Time, Sense-up, D-WDR, Anti Fog, Lens Distortion Correction, Flip, Mirror, |
| Day&Night adjustable, Red Gain and Blue Gain, Denoise | |
| Video Bitrates Adjust | CBR, VBR |
| Audio | N/A |
| SD Card | |
| RecordingTrigger | Motion Detection, IP check, Network break down(wire only), Schedule |
| Video Format | AVI, JPEG |
| Video Playback | Yes |
| Delete Files | Yes |
| Software | |
| Search & Installation | IP Installer |
| Bundled NVR Program | Free Bundle 64 Channel Recording Software |
| Firmware Upgrade | HTTP mode, can be upgraded remotely |
| Network & Security | |
| Ethernet | 10 / 100 M Base-T |
| Support Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE 802.1X, RTSP, TCP/ IP, |
| UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour | |
| Simultaneous Connection | Up to 10 |
| Power over Ethernet | Yes |
| Security | Password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based |
| authentication for network protection, QoS/DSCP | |
| System Integration | |
| Triggered Action | Mail, FTP, Save to Micro SD card, SAMBA |
| Motion Detection | Yes, 3 different areas |
| Private Mask | Yes, 3 different areas |
| General | |
| CPU | Multimedia SoC |
| RAM | 128MB |
| Flash | 16MB |
| I/O | N/A |
| Video Out | N/A |
| Power Consumption | DC 12V Max: 2.76W (IR ON); 2.04W (IR Off) |
| PoE Max: 802.3af, 3.84W (IR ON); 2.88W (IR Off) | |
| Operation Temperature | 0°C ~ 45°C (32℉ to 113℉) |
| Dimension | 110mm (∅) x 90mm (H) |
| Weight | 380g |
| View System Requirements | |
| OS | Windows 7, 2000, XP, 2003 |
| Browser | Microsoft IE 6.0 or above, Chrome, Safari, Firefox |
| Hardware Suggested | Intel Dual Core 2.53G, RAM: 1024MB, Graphic card:128MB |
Product Intoduction of HIQ-5183
hiQview HIQ-5183 is an indoor bullet camera, which is equipped with1 / 4” Megapixel CMOS sensor and has an all-IP architecture. The built-in web server open platform provides remote users with the real time video through Internet browser.
l Megapixel high resolution
The images of HIQ-5183 can be compressed into two formats: H.264 and MJPEG. Multiple resolutions are available: 1280*800/ 1280*720 / 640*480 / 320*240 / 176*144. Under HD resolution, HIQ-5183 can create supreme quality images: 30 fps @ 720p real-time. Users can choose the suitable streaming format to meet different indoor environmental conditions.
l Clear images in bad light condition
The Wide Dynamic Range (WDR) feature of HIQ-5183 stands out in monitoring strong backlight or dim light environment. For example, if the camera faces the sun, and a man is standing in front of the camera, usually, because of the strong backlight, the man’s face would be too dark to identify. The WDR technology would use different exposures for different objects, making the light contrast much lower, and thus reveal the clear features of the man’s face.
l The power of Digital Noise Reduction (DNR)
Image noise can be caused by many factors, such as power interference, heat, and dim light source, resulting in ineffective surveillance work. HIQ-5183 removes image noises by applying DNR technology. It not only makes clearer images, but also reduces video file size.
l Night time monitoring
When the sun goes down, it is difficult for typical outdoor cameras to create any clear images. The built-in 14pcs, 15M light source IR LEDs enables creating clear images under bad light condition. HIQ-5183, an IR camera, is capable of generating valuable pictures in dark environments. IR technology can detect heat emit from objects, making it a powerful tool to identify essential elements at night, such as people and vehicles.
l Network Deployment
The network deployment of HIQ-5183 is very simple. It provides the installation tool for searching for devices that are already connected to the Internet. This feature alleviates the inconvenience of complex network settings.
l Power Over Ethernet (PoE) cuts cost sharply
PoE technology enables power and internet connection to be provided by the same cable. Therefore, not only that power outlets are no longer needed, but more importantly, the space to place the IP surveillance system is saved, and the cost is reduced sharply.
l Free Bundled with VMS ( Video Management System) “hiQview Vision”
HIQ-5183 is bundled with powerful VMS software, which supplies users with omni-bearing video management and surveillance. “hiQview Vision” is free bundled with our IP cameras, and it could manage up to 64 IP cameras.
l Indoor Applications
This camera is made with day/night dual-purpose, and is suitable for monitoring indoor environments such as ATMs, retail and department stores, classrooms and offices.
