HIQ-5373 on hiQ:
/pro/detail.php?pid=285
HIQ-5373
1080p Full HD 2-Megapixel Mini Vandalproof IP
Dome Security Camera

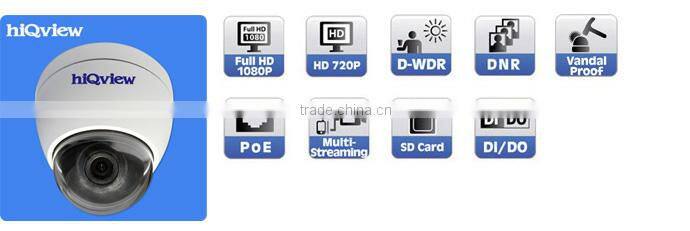

Features
*1/3.2" 5 Megapixel CMOS sensor
*Max. resolution: 1920X1080
*Full HD 25 fps @ 1080p
*H.264 / JPEG / MPEG-4 multi-codec and multi-streaming
*Triple streaming
*3.6mm F1.6 fixed lens
*Digital Wide Dynamic Range (D-WDR)
*3D and 2D Digital Noise Reduction (DNR)
*Sense-Up adjustment
*Support Vandal Proof
*Power over Ethernet
*Micro SD card backup
*Support DI/DO
*Support mobile phone remote monitoring
*SD card backup for easy storing and playback image / video
*Free recording software bundle
Specification
| Camera | |
| Image Sensor | 1/3.2" CMOS |
| Sensor Resolution | 5 Megapixel |
| Max Video Resolution | 1920*1080 |
| Sensitivity | Color :1.0 lux (AGC on) , B/W : 0.5 lux (AGC on) |
| Lens Type | Fixed lens 3.6mm F1.6 |
| Electronic Shutter | 1/5~1/10000s |
| Video / Audio | |
| Compression Format | H.264, JPEG and MPEG-4 |
| Video Profile | 1920*1080/ 1280*720/ 640*480/ 320*240/ 176*144 |
| Frame Rate | 25fps @ 1920*1080 25fps @ 1280*720 30fps @ 640*480 30fps @ 320*240 30fps @ 176*144 |
| Triple Streaming | Yes |
| Image Snapshot | Yes |
| Full Screen Monitoring | Yes |
| Zoom | Yes |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness, AGC, Exposure, Shutter Speed adjustment, Sense-Up, D-WDR, Flip, Mirror, DNR |
| Video Bitrates Adjust | CBR, VBR |
| 3GPP Cell Phone | 3GPP mobil surveillance |
| Micro SD Card management | |
| RecordingTrigger | Motion Detection, IP check, Network break down(wire only), Schedule, DI |
| Video Format | AVI, JPEG |
| Video Playback | Yes |
| Delete Files | Yes |
| Software | |
| Search & Installation | IP Installer |
| Bundled NVR Program | Free Bundle 64 Channel Recording Software |
| Firmware Upgrade | HTTP mode, can be upgraded remotely |
| Network & Security | |
| Ethernet | 10 / 100 M Base-T |
| Support Protocol | HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE 802.1X, RTSP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour |
| Simultaneous Connection | Up to 10 |
| Security | Password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection, QoS/DSCP |
| Power over Ethernet | Yes |
| System Integration | |
| Triggered Action | Mail, FTP, Save to SD card, DO, SAMBA |
| Pre / Post Alarm | Yes |
| Motion Detection | Yes, 3 different areas |
| Private Mask | Yes, 3 different areas |
| General | |
| CPU | ARM 9, 32 bit RISC |
| RAM | 256MB |
| Flash | 16MB |
| I / O | DI / DO |
| Power | DC 12V |
| Operation Temperature | -10°C to 45°C (14°F to 113°F) |
| Humidity | 85%RH |
| Dimension | 80 mm (φ) x 67 mm (H) |
| Weight | 310g |
| View System Requirements | |
| OS | Windows 7, 2000, XP, 2003, Vista |
| Browser | Microsoft IE 6.0 or above, Chrome, Safri, Firefox |
| Hardware Suggested | Intel Dual Core 2.53G, RAM: 1024MB, Graphic card:128MB |
Product Intoduction of HIQ-5373

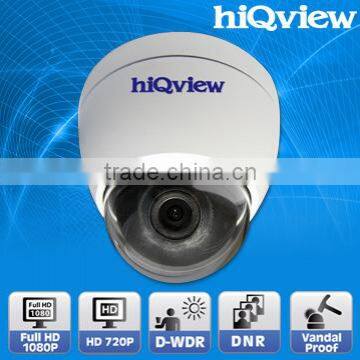

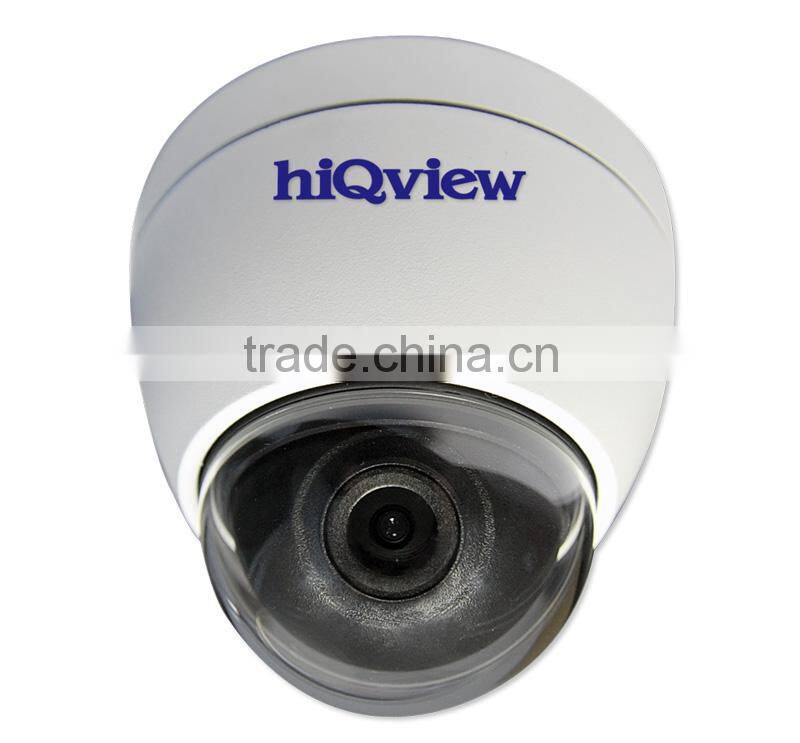

hiQview HIQ-5373 is a vandal proof dome camera, which is equipped with 1/3.2” 5 Megapixel CMOS image sensor and has all-IP architecture. The built-in web server open platform provides remote users with the real time video through Internet browser.
The images can be compressed into three formats: H.264 / MPEG4 / MJPEG and multiple resolutions: Full HD / HD / VGA / QVGA / QCIF. Under Full HD resolution, HIQ-5373 is capable of outputting excellent images: 25fps@1080p real-time. Users can choose the suitable streaming format to meet different environmental concerns.
HIQ-5373 has a body design and thus possesses artistic and undetectable appearance. The vandal-proof housing makes it even more robust and reliable.
The network deployment of HIQ-5373 is uncomplicated and quick. It provides the installation tool, which can search for the device that is already connected to the Internet. This feature alleviates the inconvenience of the complex network settings. HIQ-5373 also supports built-in 802.3af Power over Ethernet. Users don’t need to additionally install the power lines. Consequently, the total power line cost is reduced sharply.
HIQ-5373 provides surveillance functions, including Micro SD card local storage. The GUI design is based on the principle of user-friendly and easy manipulation.
The NVR software is freely provided with HIQ-5373. It supplies users with omni-bearing video management and surveillance.
The characteristic of vandal-proof makes HIQ-5373 suitable to monitor ATM, elevator, and indoor environments.
