Specifications
1. Brightly colored and never faded.2. Durable, heat-resisting, heatroof.
3. Anti-corrosion.
4.Eco-friend material
Technical parameters of color stone metal tile
Ⅰ Product Introduction:
Using special high corrosion of aluminum and zinc coated steel plate as the base material of color stone metal tiles, with high quality water-based acrylic resin as binder, high weathering of natural the color stone particles or inorganic pigment dyeing natural gravel for the level, and a special processing technology made as a new generation of metal roofing materials. It is innovative, composite, environmental protection high-tech products.
Color stone metal tiles with traditional clay tile natural sounding excellent decorative performance, but also has a modern metal watt lightweight, sturdy, durable good use performance the international mainstream roofing materials.
Color stone metal tile is suitable for a variety of styles and various types of structure (wood structures, steel structures, concrete structures) pitched roof building roofing project, also applies to flat buildings to pitched, the renovation of the old roofing and building local decoration, etc.
Reference images as follows:
ⅡPerformance:
Acrylic glazing layers --- improve the brightness and semi-precious adhesion to prevent the infiltration of rainwater into the color stone
Color stone layer --- block UV light and reduce rain noise, improve decorative
Acrylic adhesive layer - adhesive on the lower structure to provide protection for the underlying
Protection layer --- protect the galvalume layer, enhanced corrosion resistance and painted
Galvalume layer ---high corrosion resistance, heat-reflective rate, extend product life and energy efficiency
Steel grassroots ---cold-rolled high strength steel
Galvalume layer --- high corrosion resistance, heat-reflective rate, extend product life and energy efficiency
Protective layer --- protect the galvalume layer, enhanced corrosion resistance
The advantages of color stone metal tile:
Anti rainstorm: color stone metal tile unique waterproof design can effectively prevent roof leakage may be formed when heavy rains.
Noise reduction: the surface of the particle structure can be formed when it rains roofing noise is reduced by 20% or more.
Wind resistance: vertical and horizontal lap nailed solid install roofing system can withstand strong typhoons, hurricanes and tornadoes.

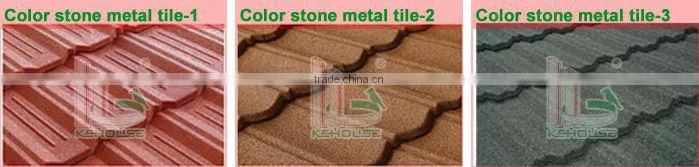

Ⅲ Products:

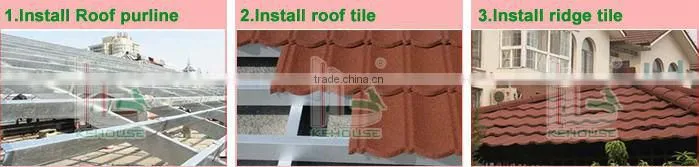

IV Installation Instructions:
FOSHAN KEHOUSE LIGHT STEEL HOUSE CO.,LTD
ENGINEERING DEPARTMENT
