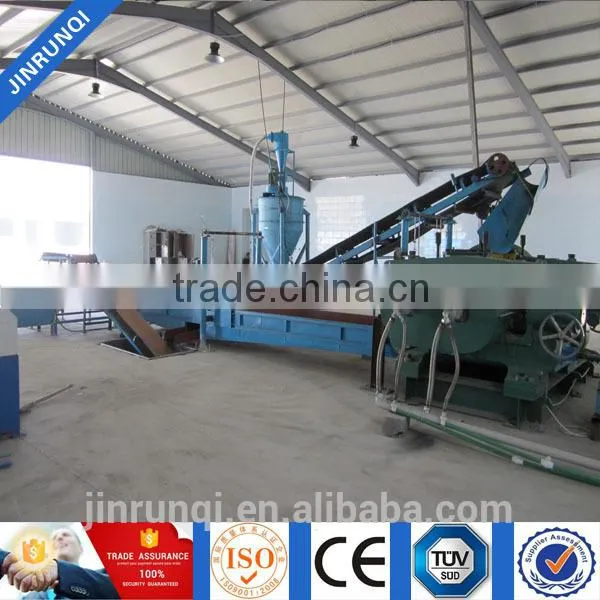

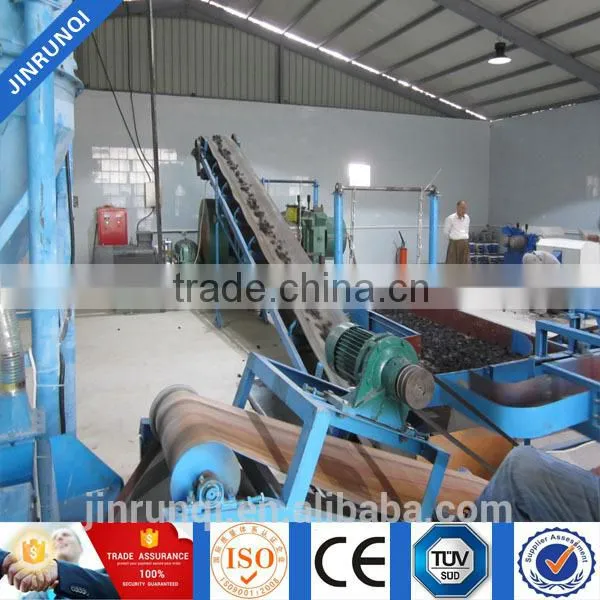

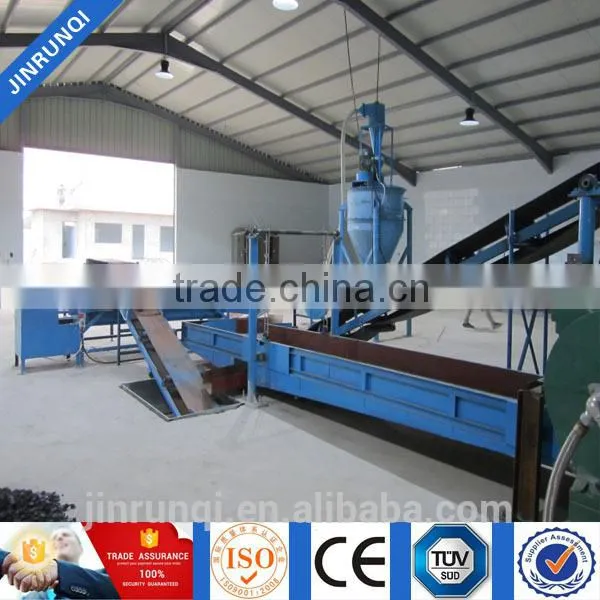

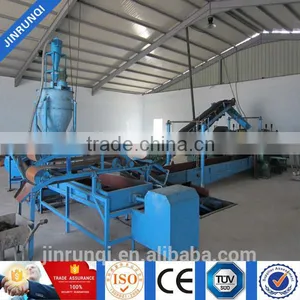

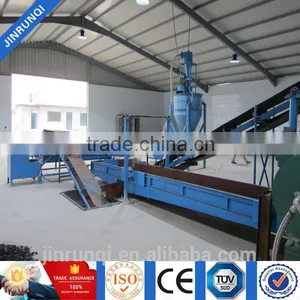

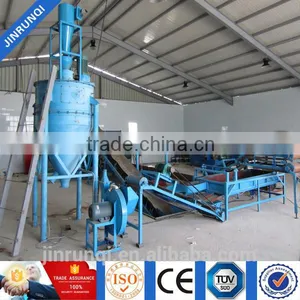

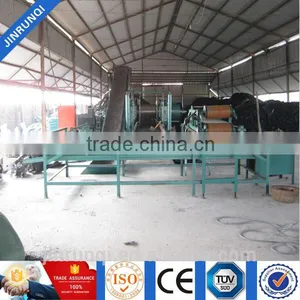

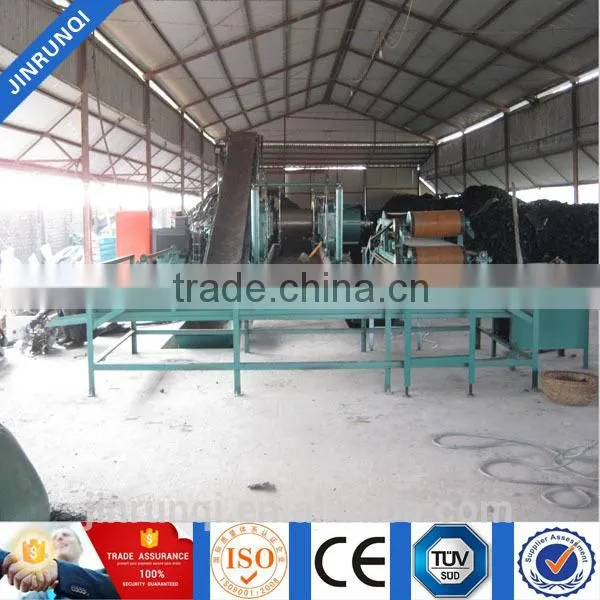

Help Center2016 Low Investment High Profit Business Waste Tire Recycling Line / Rubber Powder Making Machine / Reclaimed Rubber Machine
Related Products
-
Waste Tyre Rubber Powder Making/breaking MachineUS$ 2,000 - 15,000MOQ: 1 Set -
Four Columns Rubber Plate Vulcanizing Presses 100T 600*600*2US$ 1,230 - 4,000MOQ: 1 Unit
-
High Quality Pneumatic Vulcanizing Machine of ChinaUS$ 1,400 - 5,000MOQ: 1 Set
-
Belt Press For Sale/Plate Vulcanizing Press for Textile BeltUS$ 1,300 - 11,500MOQ: 1 Set
-
Frame Structure Conveyor Belt Vulcanizing Machine of QINGDAOUS$ 1,600 - 12,000MOQ: 1 Set
Welcome to our 100% real factory
Qingdao JINRUNQI Rubber Machinery Co.,Lt
Our non-standard Rubber Vulcanizing Press and Rubber Powder Production Line will meet your requirement ,don't hesitate, my friends.
8:00-20:00(China time) from Mon to Sat: Reply in 30 minutes
High quality rubber tile making machine
Specifications
Rubber Granules Making Machine
Rubber floor vulcanizing machine/rubber tile making machine:
1-make 500x500mm or 1000x1000mm tiles.
2-has 20 year experience.
RUBBER FLOOR Tile VULCANIZING MACHINE / RUBBER TILE MAKING MACHINE
Specifications
Rubber Granules Making Machine
1. This kind of vulcanizing machine is multi-functional beacuse it is suitable to be used for top opening double or triple mold plates.
2. High force employs dual pressure , and each oil system is designed seperately which
makes it stable ,quiet and low frequency of malfunction when working. Two sides can be operated simultaneously.
3. The electric system adopt PLC programming control , which is easy to be operated.
4. Automatic in/out mold and ejector device, low labor strength.
5. Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption.
Technical parameter of four column structure
Type |
XLB-DQ400*400*2 |
XLB-DQ660*600*2 |
XLB-DQ750*750*2 |
XLB-DQ1200*1200*2 |
Total pressure(MN) |
0.50 |
1.00 |
3.00 |
3.15 |
Plate size(mm) |
400x400 |
600x600 |
750x750 |
1200x1200 |
Working layer nuber |
2 |
2 |
2(4) |
2(4) |
Piston stroke(mm) |
250 |
250 |
250(500) |
250(500) |
Plate pressure(Mpa) |
3.1 |
2.8 |
5.3 |
2.2 |
Motor power(kw) |
2.2 |
3 |
5.5 |
5.5 |
|
||||
Weight (kg) |
1300 |
3500 |
8000 |
9500 |
Technical parameter of frame structure
Type |
XLB-DQ1200×1200×2 |
XLB-DQ1300×2000×1 |
XLB-Q1200×2500×1 |
XLB-Q1500×2000×1 |
Total pressure(MN) |
315t |
560t |
750t |
1000t |
Plate size(mm) |
1200×1200 |
1300×2000 |
1200×2500 |
1500×2500 |
Daylight(mm) |
200 |
400 |
400 |
400 |
Layer |
2 |
1 |
1 |
1 |
Piston stroke(mm) |
400 |
400 |
400 |
400 |
Plate unit area pressure (kg/ cm2) |
22 |
21.5 |
25 |
33.5 |
Main motor power(KW) |
3 |
8 |
9.5 |
11 |
Overall dimension (L×W×H)(mm) |
1685×1320×2450 |
2000×1860×2500 |
2560×1700×2780 |
2810×1550×3325 |
Weight (kg) |
9500 |
17000 |
20000 |
24000 |
1. Pre-sales Service:
Freely provide Technical data, Professional suggestions, Best quotation
2. Medium-sales Service:
Provide the purchasing, shipping, installing and training
3. After-sales service:
1 years quality guarantee, Life-long Maintenance
The company is located in West Coast Economic and Technological Development Zone, Convenient location, Only 40km away from Qingdao International Airport. Just 20 kilometers from Qingdao container terminals, closes Tongsan highway and 204 National Road only 1km, traffic is extremely convenient.
The company has passed the ISO9001:2008 Quality System Certification.
The company has a professional technology R&D institutions. Market as the wizard, can meet requirements come from different customers. The company is particularly specializes in the design and production of non-standard products. Expect ordinary rubber machinery includes open type rubber mixing mill, rubber kneader, rubber extruder, rubber injection molding machine, solid tire vulcanizing press, our company also focus on the R&D and production of the large type plate vulcanizing machine, fabric conveyor belt production line and wire rope conveyor belt production line. To constant exploration and innovation gained rich experience and results for many years.
Basic information
Business Type: manufacturer
Main Products: Plate vulcanizing press,Rubber tile hydraulic press,waste tyre recycling machine,rubber mixing mill,conveyor belt production line
tire crushers, shredders, magnetic separator, screening machine, waste tire rubber powder production line, waste rubber and plastic pyrolysis oil production line.
Number of employmees: 51-100 people
Market
1.special manufacturer that has professional producing team and technical support
level sale teams to communicate with clients by email,telephone,face to face.
fessional explanation to clients about machines(techonogy,apply,using guide and so on)
4.best after sale---follow the whole producing situation,provide photos of machines loaded into containers, track the operating and using situation of client in case of any problems occur and reply you within 12 hours.
5.reasonable price and flexible delievery time
6.more than 30 years of experience of exporting ability
If you are interested in our machines,pls feel free to let me know,we will do our best to service for you.thanks!
