Whole Line Crumb Rubber Making Production Line For Tire Recycling Machine

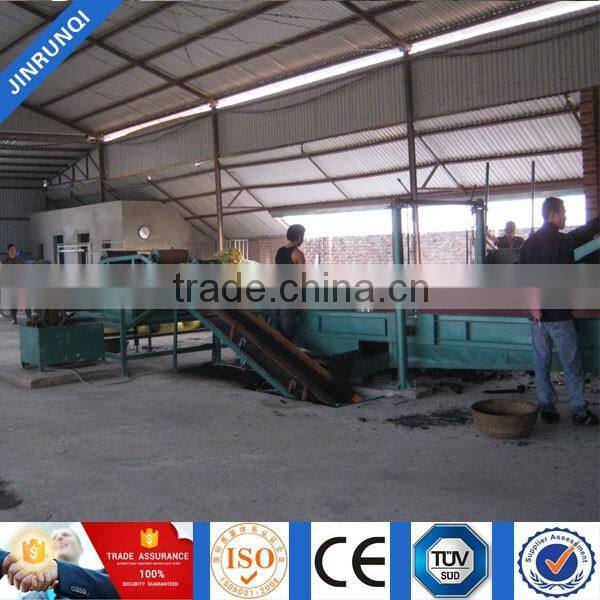

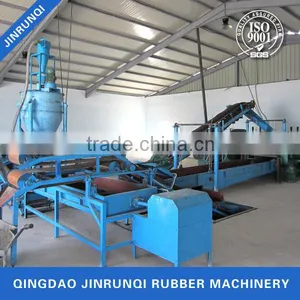

This production is used for recycle waste tires (600mm-1200mm) to make rubber particle or rubber powder. The size of final particle is from 5 meshes to 120 meshes. Finally you can also get steel wire and fiber powder.

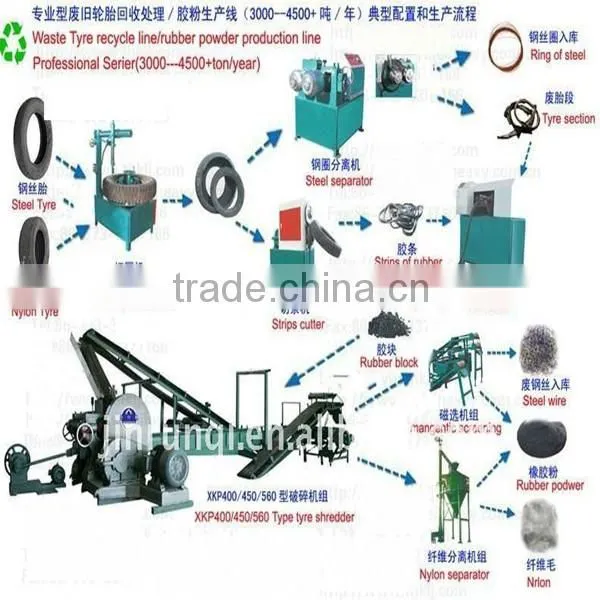

Wasted Tire Recycling includes the following machines:
| Waste tire pretreating: Get 30*30mm or 40*40mm blocks. | |||
| 1 | Ring cutter | QQJ-20 | 1 |
| 2 | Loop machine | YQJ-285 | 1 |
| 3 | strip cutter | QTJ-380 | 1 |
| 4 | block cutter | QKJ-45 | 1 |
| Rubber powder treatment:5-30 meshes rubber powder. Separate steel wire and fiber from rubber powder. | |||

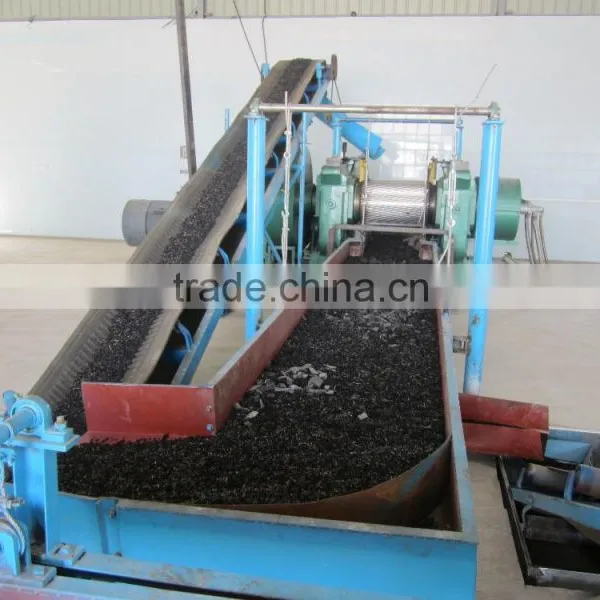

| 5 | Two roll rubber crusher | XKP-400 | 1 |
| XKP-450 | |||
| XKP-560 | |||

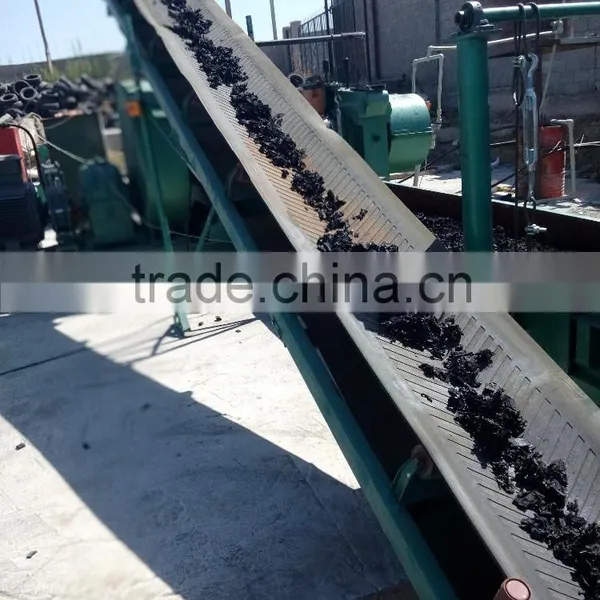

| 6 | Main conveyor | BCL-8 | 1 |
| 7 | Small conveyor | BCL-3 | 1 |
| 8 | Double-deck magnetic separator | BMS-22 | 1 |
| 9 | Single-deck Magnetic | SMS-1 | 1 |
| 10 | Main vibrating sieve | BSS-8 | 1 |
| 11 | Small vibrating sieve | SSS-3 | 1 |
| 12 | Fiber Processing Equipment | FS-1100 | 1 |
NOTE:
1) PAYMENT: 30% DEPOSIT, 70% T/T BEFORE DELIVERY.
2) WARRANTY: 1 YEAR WARRANTY. LIFE TIME MAINTANCE.
3) DELIVERY TIME: ABOUT 60 DAYS AFTER DEPOSIT.
Production capacity and energy consumption
NO |
MODEL |
Total Power(KW/h) |
Production Capacity (kg/h) |
1 |
XKP-400 line |
About 103.2kw |
100-200kg for around 10-30 mesh rubber powder. |
XKP-450 line |
About 113.2kw |
300-400kg for around 10-30 mesh rubber powder |
|
XKP-560 line |
About 132.2KW |
500-600kg for around 10-30 mesh rubber powder. |
|
Floor space:About 300-400 m2, Workers needed:3 operator and 1 maintainer | |||

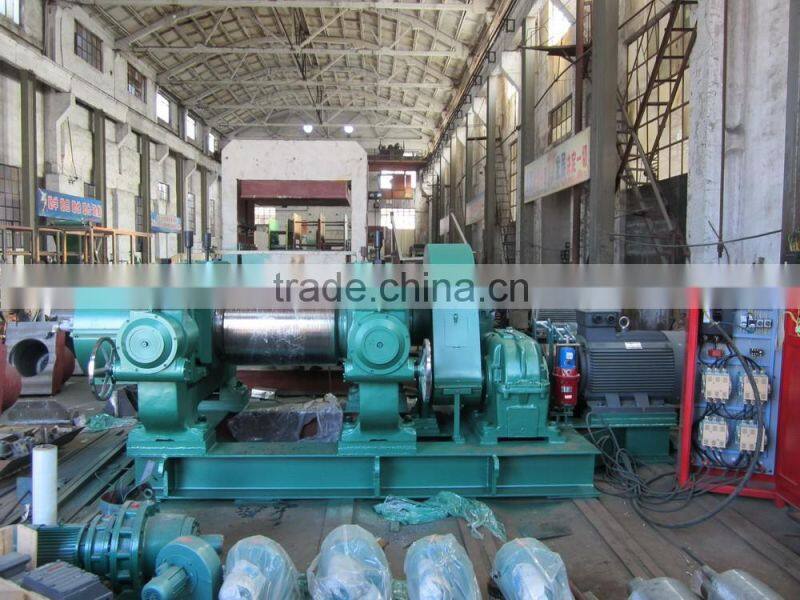

Rubber Crusher Main Technical Parameter:
| Model | XKP-400 | XKP-450 | XKP-560 |
| Working diameter of F.Rollers(mm) | 400 | 450 | 560 |
| Working diameter of B.Rollers(mm) | 400 | 450 | 510 |
| Working length of rollers(mm) | 600 | 650 | 800 |
| Linear speed of F.Rollers(m/min) | 18.65 | 24.5 | 25.16 |
| Linear speed ratio of F&B.Roller(m/min) | 1:1.27 | 1:1.27 | 1:1.28 |
| Max roller gap(mm) | 10 | 10 | 15 |
| Output(kg/h) | 200-400 | 400-600 | 2000 |
| Main motor power(KW) | 37 | 55 | 75 |
| Speed reducer | Ordinary type or Hardend-gear speed reducer | ||
| Overall size(L×W×H)(mm) | 3850 | 4650 | 4750 |
| 1800 | 2000 | 2300 | |
| 1550 | 1550 | 1750 | |
Detailed introduction of each machine

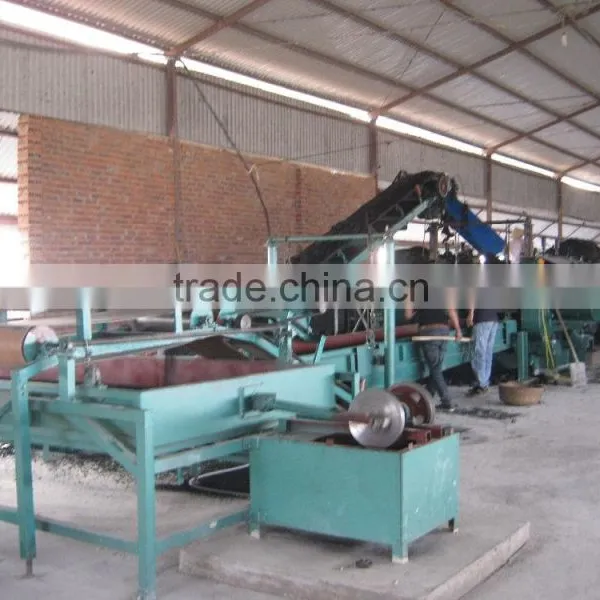

Waste tire pretreating system includes Ring cutter, Loop machine, strip cutter and block cutter.

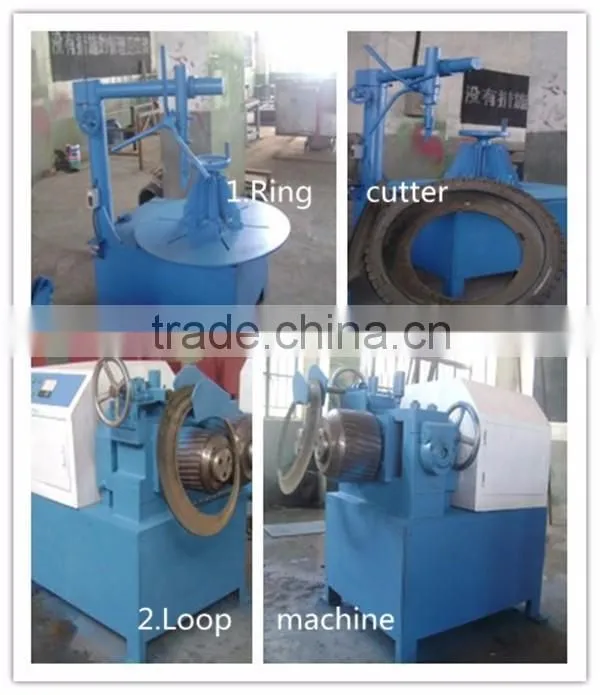

1-1. Ring cutter 1 set
Item |
Specification |
Motor power |
5.5 KW |
Speed of main screw |
46.8 r/min |
MAX Diameter of tyre |
1200mm |
Dimension |
1100*900*1700mm |
1-2. Loop machine 1 set
Item |
Specification |
Motor power |
15 KW |
Linear speed of front roller |
15.5 m/min |
Ratio of speed |
1.1 |
Dimension |
1520*1150*12101mm |

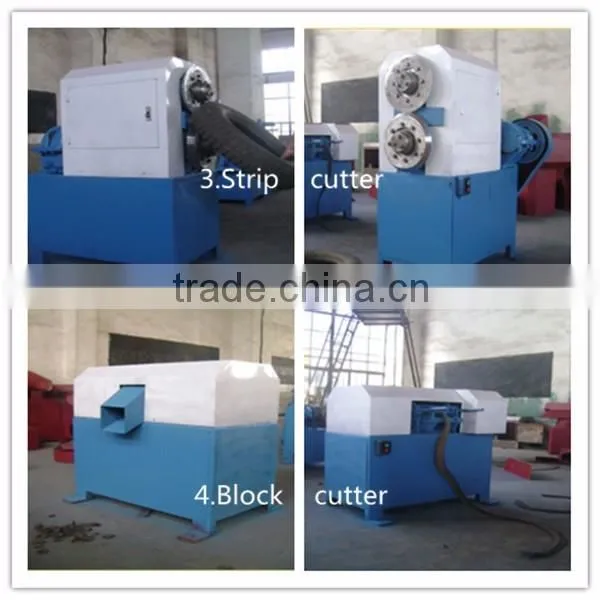

1-3.Strip cutter 1 set
Item |
Parameter |
Motor Power |
5.5kw |
Disc Diameter |
380mm |
Rotate Speed |
18.4r/min |
Dimension |
1290*870*1550 |
1-4. Block cutter 1 set
Item |
Specification |
Motor power |
11kw |
Speed of main screw |
420 r/min |
Out diameter of cutter |
200mm |
Dimension |
1130*830*1100 |

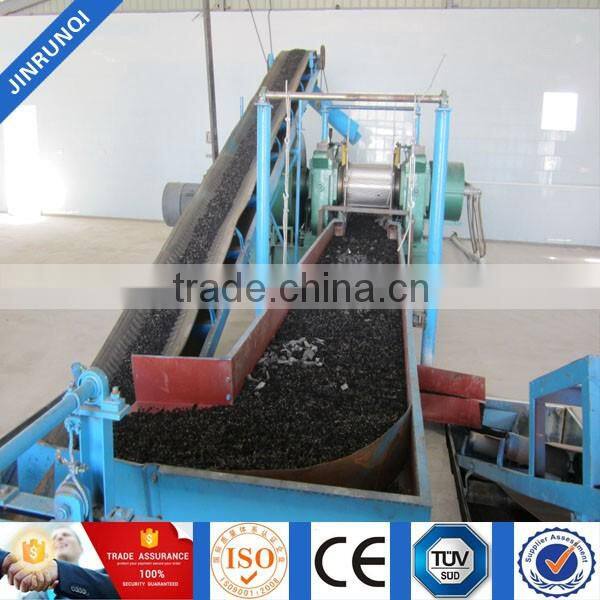

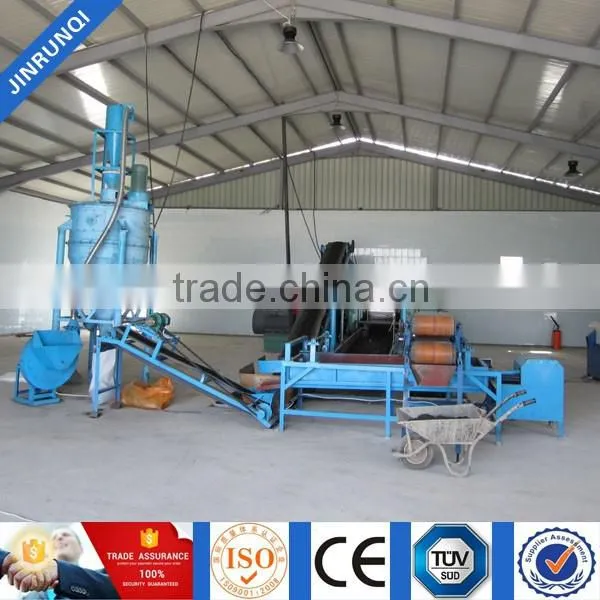

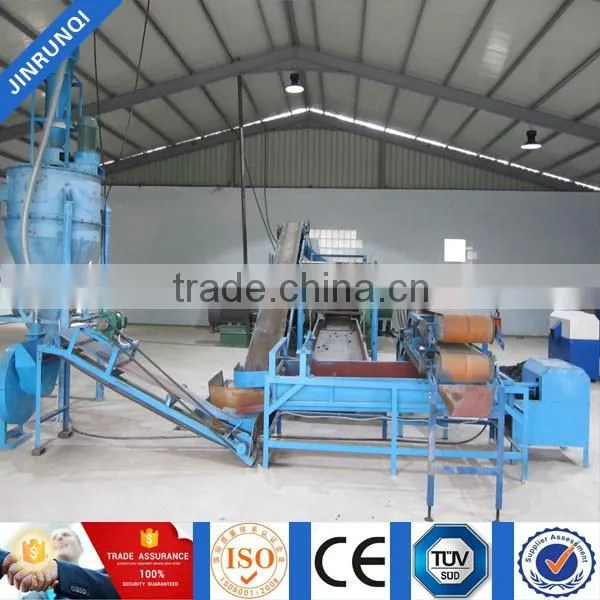

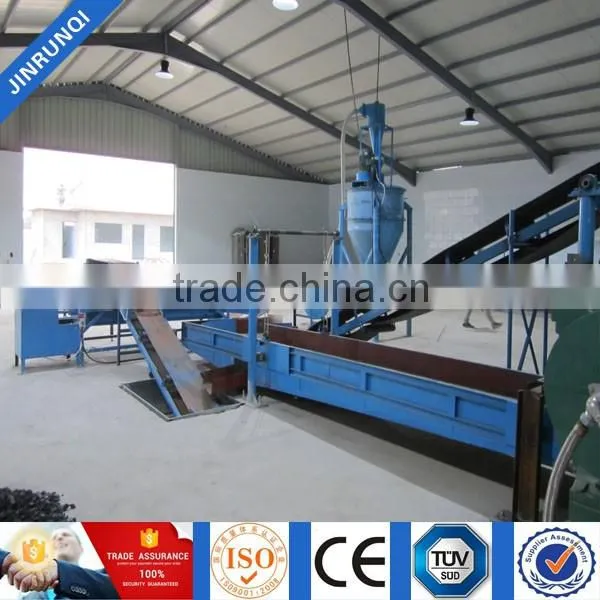

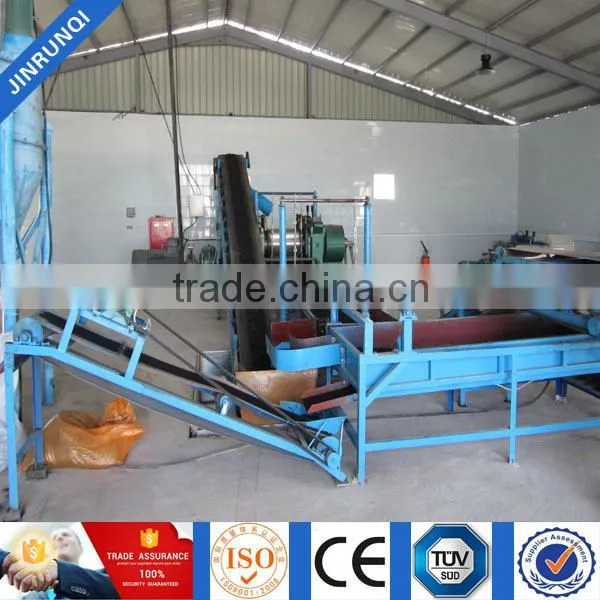

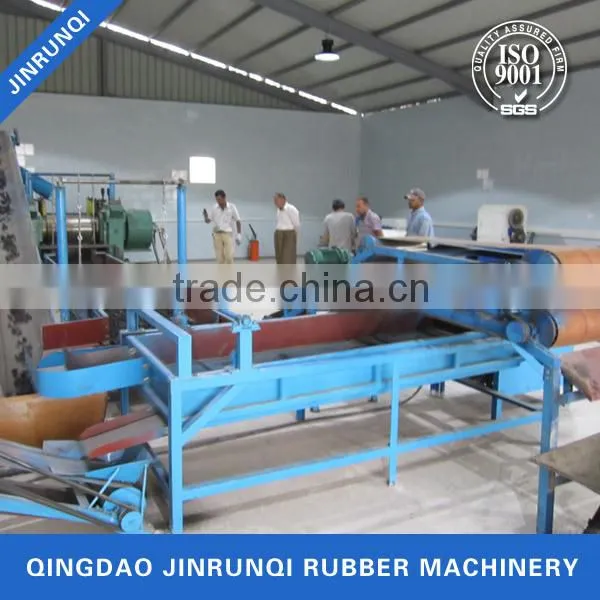

Rubber powder treatment system includes rubber crusher, Main conveyor, Small conveyor, Double-deck magnetic separator, Single-deck Magnetic, Main vibrating sieve, Small vibrating sieve and Fiber Processing Equipment.
Qingdao Jinrunqi Rubber Machinery
1.Double Automatic Vulcanzing Press,Automatic Vacuum Vulcanizing Press,Rubber Injection Molding Machine,Solid Tire Vulcanizing press,Frame Type Plate vulcanizing press,Large plate vulcanizing press,Doplex"C" type vulcanizing press,sidewall /textile core/steel core conveyor belt production line
2.Rubber tiles vulcanizing press, Semi/auto waste tire recycling line,Reclaimed rubber production line
3.rubber kneader,rubber mixing mill, rubber calender,rubber crushing mill, Rubber refining mill,rubber extruder,Batch off cooler and so on.
To Watch Video and Certificate Verified by TüV SüD, You Can Visit
https://jinrunqi.en.china.cn/company_profile.html
USD $ 83,000 Trade Assurance Capital to Guarantee Business Safety.
If you interested in our products mentioned above. Kindly welcome to our factory for a visit and let us know by return email.
Whole Line Crumb Rubber Making Production Line For Tire Recycling Machine Whole Line Crumb Rubber Making Production Line For Tire Recycling Machine
