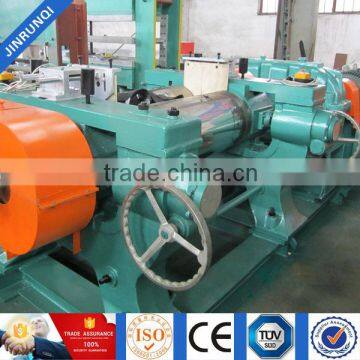

Help CenterRubber Open Mixing Mill XK-400
Related Products
-
Open Type Rubber Machine Mixing MillUS$ 5,000 - 100,000MOQ: 1 Set -
Rubber Mixing MachineUS$ 5,000 - 100,000MOQ: 1 Set
-
XK-450 Rubber Mixing MillUS$ 5,000 - 100,000MOQ: 1 Set
-
Two Roll Open Type Rubber Mixing MillUS$ 5,000 - 100,000MOQ: 1 Set
-
XK-400 Rubber Mixing MillUS$ 5,000 - 100,000MOQ: 1 Set

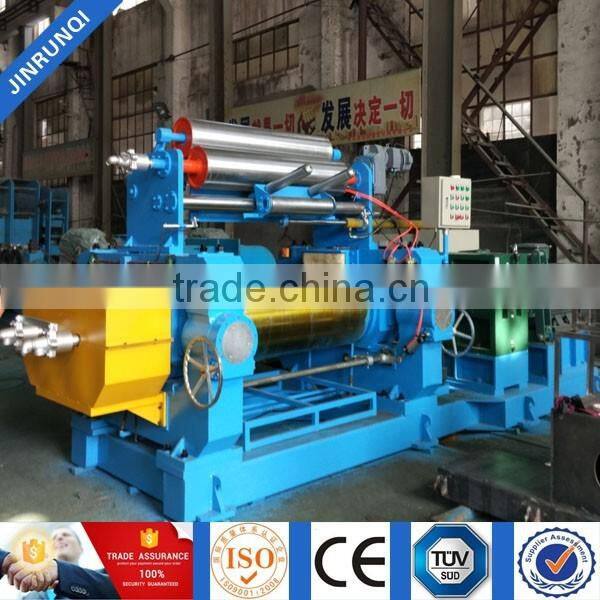

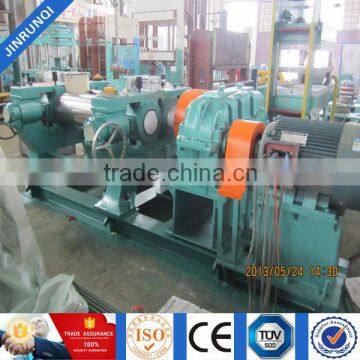

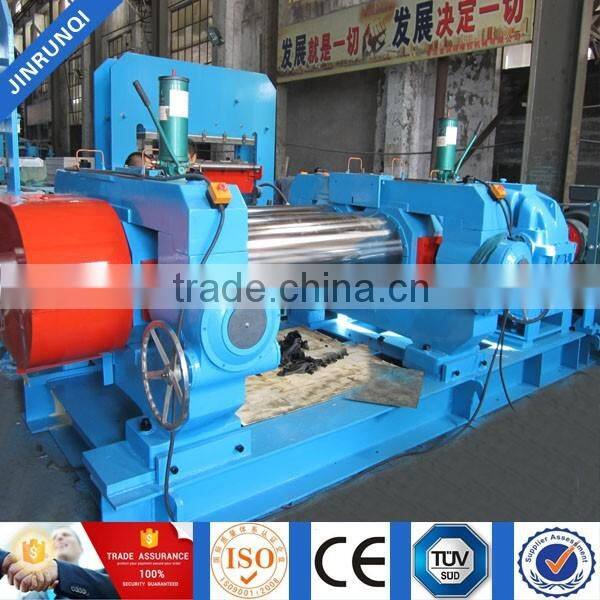

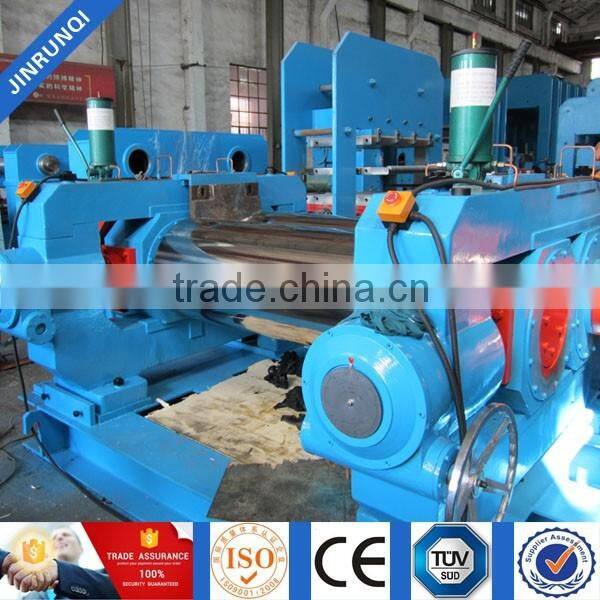

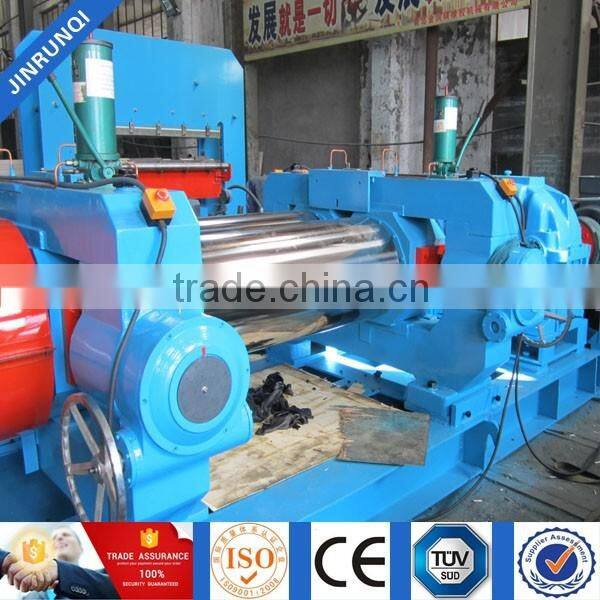

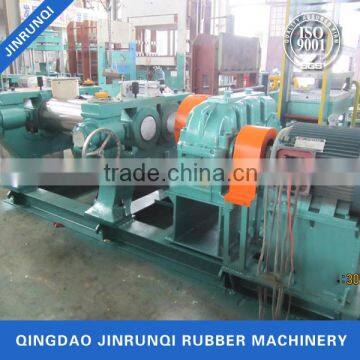

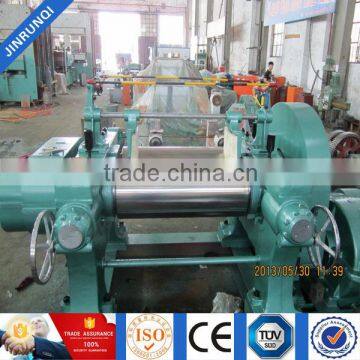

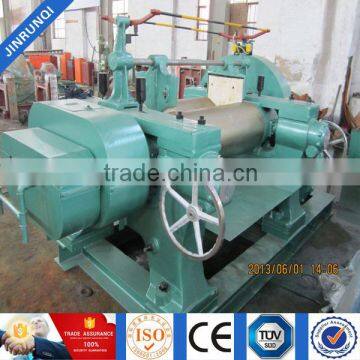

Rubber mixing mill
Description :
1. This machine is used for mixing and kneading raw rubber,synthetic rubber,thermoplastics or EVA with chemicals into even materials.
2. The evenmaterials can be fed to calender ,hot presses or other processing machinery for making rubber or plastic products.It adopts hollow center groove roller or drilling hole smooth roller against difference using scope as mixing,refining or press pieces etc.
3. This machine can be installed stock blender according to customer’s request to decrease the labor strength,also equipped with safety device.
Working Principle:
The Glue Stock on the two rollers rotating reversely with different linear speed is pulled in the nip of the two rollers by the frictional force,with the reduction of the friction surface through the rollers,it is cut and extruded strongly;
In the mean time,the chain scission and oxidation occurs under a certain temperature condition,increasing its plasticity,the aim of milling achieve.
Specification:
Model |
XK-150 |
XK-250 |
XK-300 |
XK-360 |
XK-400 |
XK-450 |
XK-560 |
|
Working diameter of rollers(mm) |
150 |
250 |
360 |
360 |
400 |
450 |
560 |
|
Working length of rollers(mm) |
280 |
620 |
750 |
900 |
1000 |
1200 |
1530 |
|
Working linear speed of front rollers(m/min) |
8 |
15.1 |
15.1 |
16.25 |
18.65 |
24.5 |
27.7 |
|
Friction ratio of front and rear roller |
1:1.4 |
1:1.17 |
1:1.27 |
1:1.25 |
1:1.27 |
1:1.27 |
1:1.12 |
|
Max distance of rollers(mm) |
10 |
10 |
10 |
10 |
15 |
15 |
15 |
|
Capacity (kg) |
1-2 |
10-15 |
15.20 |
20-25 |
18-35 |
25-50 |
50-65 |
|
Motor power(KW) |
7.5 |
18.5 |
22 |
30 |
37 |
55 |
95 |
|
Overall size (mm) |
L |
1080 |
3400 |
3580 |
3940 |
4250 |
5200 |
6120 |
W |
796 |
1350 |
1550 |
1780 |
1850 |
2380 |
2280 |
|
H |
1415 |
1500 |
1695 |
1740 |
1870 |
1770 |
2000 |
|
Weight(kg) |
1100 |
3500 |
5205 |
5670 |
7600 |
13000 |
22000 |
|
