Wireless Thermostat Electric Iron Thermostat
Feature:
1.Large setting range
2. Small size
3.Simple to mount
4. High switching perform

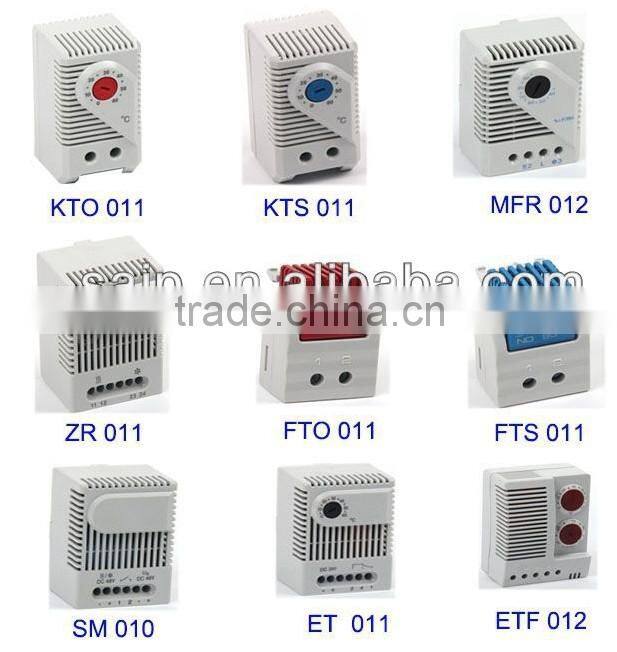

KTO 011: Thermostat(normally closed),contact breaker for regulating heaters.
KTS 011: Thermostat(normally open), contact maker forregulating offilter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.
Switch temperature difference |
7K (± 4K tolerance) |
Sensor element |
thermostatic bimetal |
Contact type |
snap-action contact |
Contact resistance |
< 10m Ohm |
Service life |
> 100 000 cycles |
|
Max. switching capacity
|
250VAC, 10 (2) A |
120VAC, 15 (2) A | |
DC 30W | |
EMC |
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
Connection |
2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |
Mounting |
clip for 35mm DIN rail, EN50022 (or for exit filter EF 118 Series) |
Casing |
plastic according to UL94 V-0, light grey |
Dimensions |
60 x 33 x 43mm |
Weight |
approx. 40g |
Fitting position |
variable |
Operating/Storage temperature |
-45 to +80°C (-49 to +176°F) |
Protection type |
IP20 |

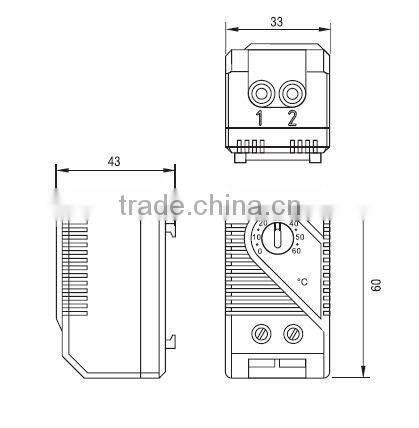

The drawing:

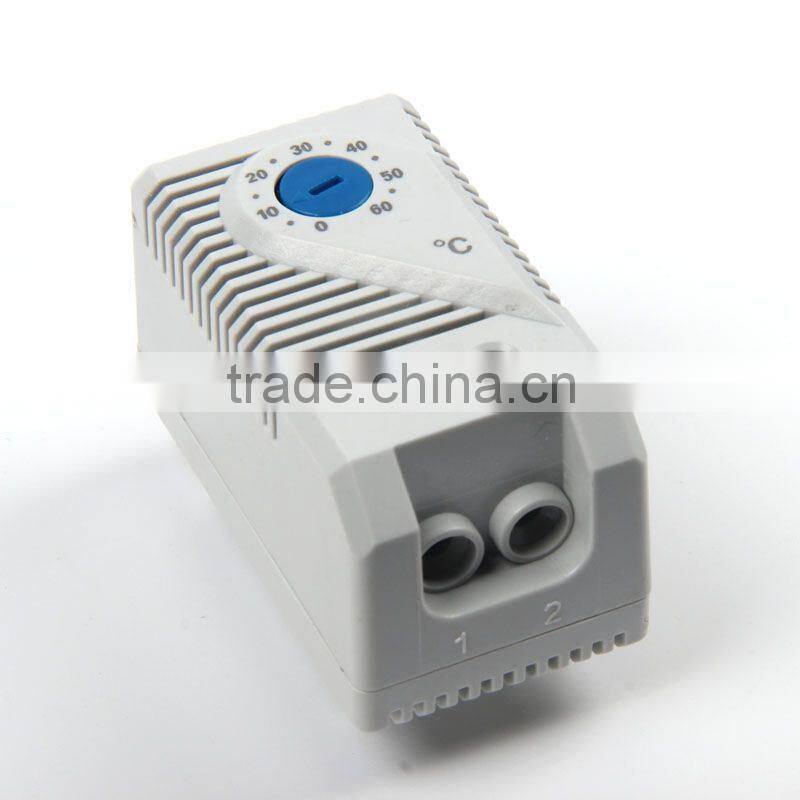

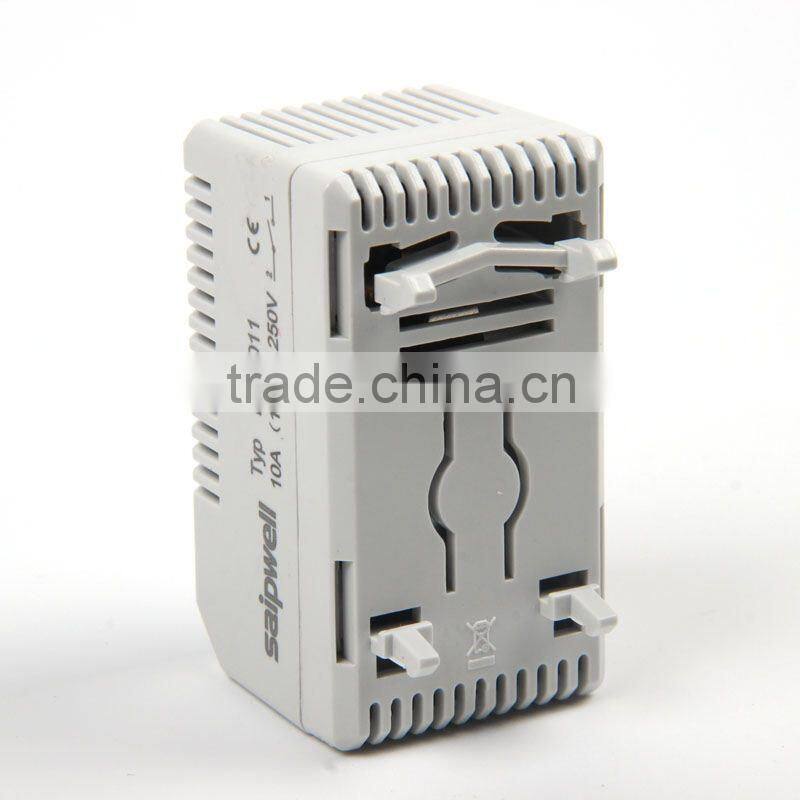

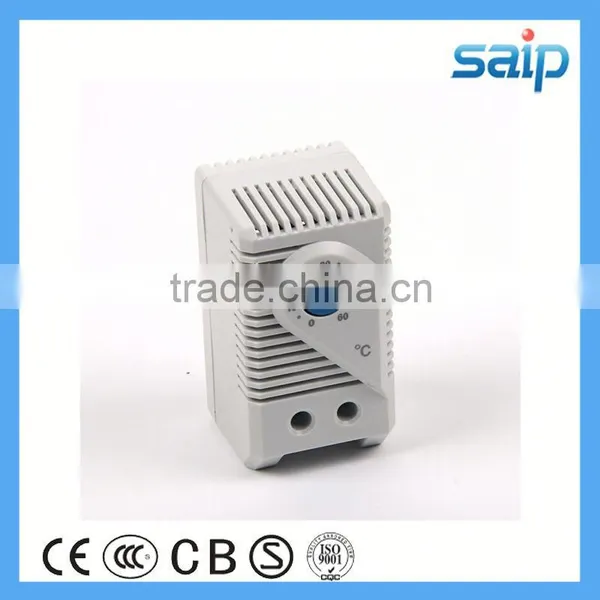

Product show:
