Incubator Thermostat Electronic Hygrostat
Feature:
1.adjustable relative humidity
2.hygrostat has change-over contact
3.hygrostat has high switching capacity
4.easily accessible terminals
5.clip fixing
Technical data:
| Switch difference | Approx. 4% RH @ 50% relative humidity |
| Permissible air velocity | 15m/sec |
| Contact type | change-over contact |
| Contact resistance | < 10mOhm |
| Service life | > 100 000 cycles |
| Min. switching capacity | 20V AC/DC 100 mA |
| Max. switching capacity | 250 VAC, 5 (1) A |
| DC 20W | |
| EMC | acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
| Connection | 3-pole terminal for 2.5mm², clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |
| Mounting | clip for 35mm DIN rail, EN50022 |
| Casing | plastic according to UL94 V-0, light grey |
| Dimensions | 67 x 50 x 38mm |
| Weight | approx. 60g |
| Fitting position | variable |
| Operarting/Storage temperature | 0 to +60°C (+32 to +140°F) / -20 to +80°C (-4 to +176°F) |
| Protection type | IP20 |

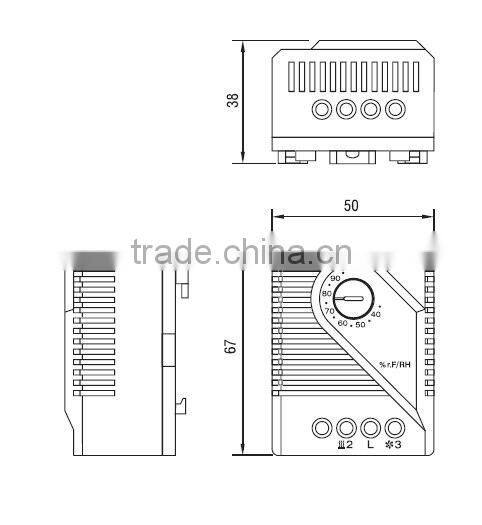

The drawing:

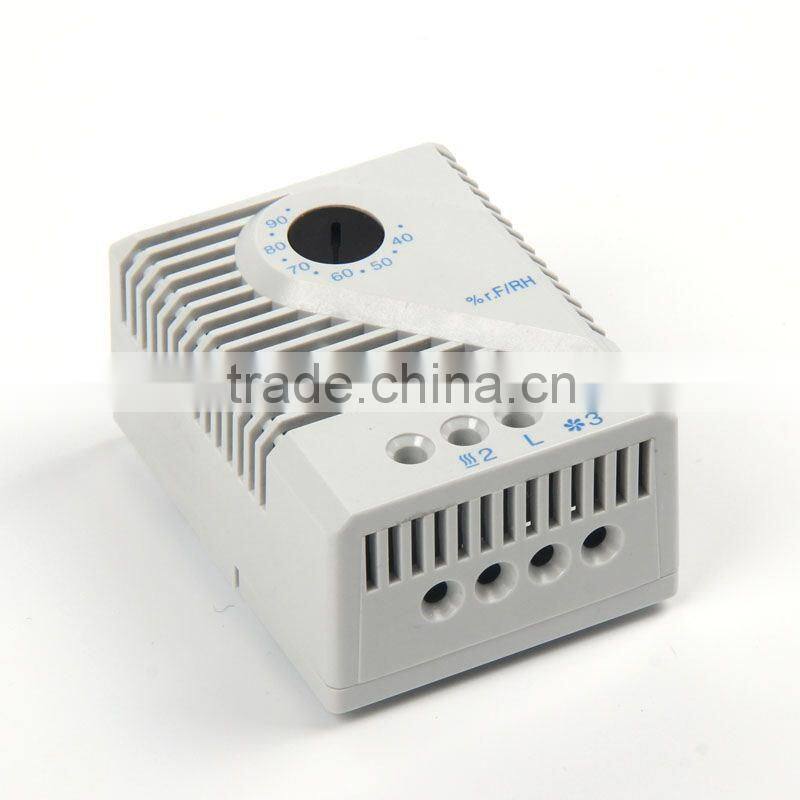

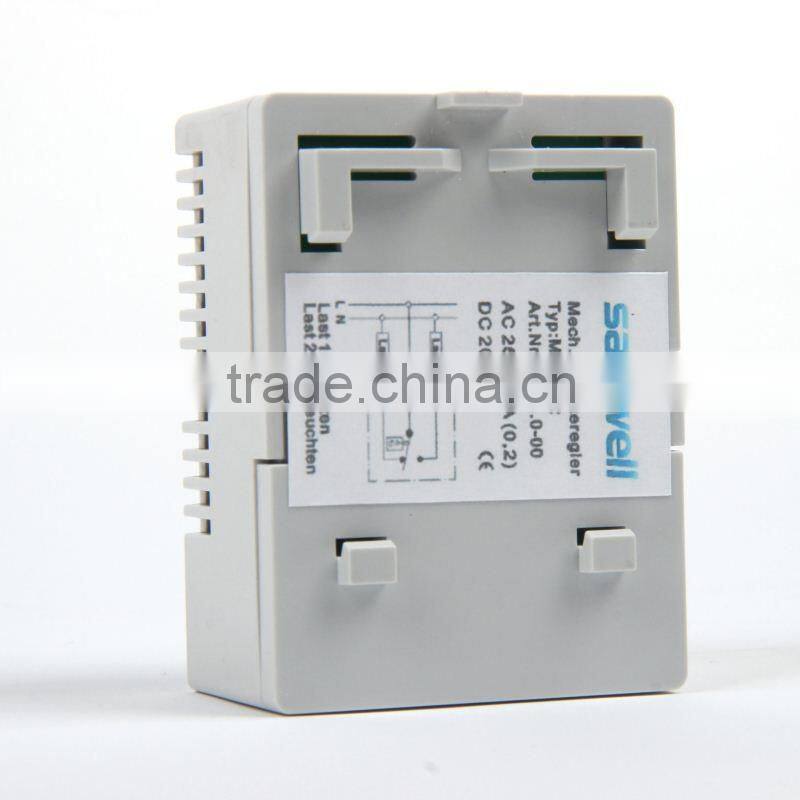

Product show:
