Specifications
thermostats for fan heaters1.Small size
2.Default temperature settigs
3.Easy to install

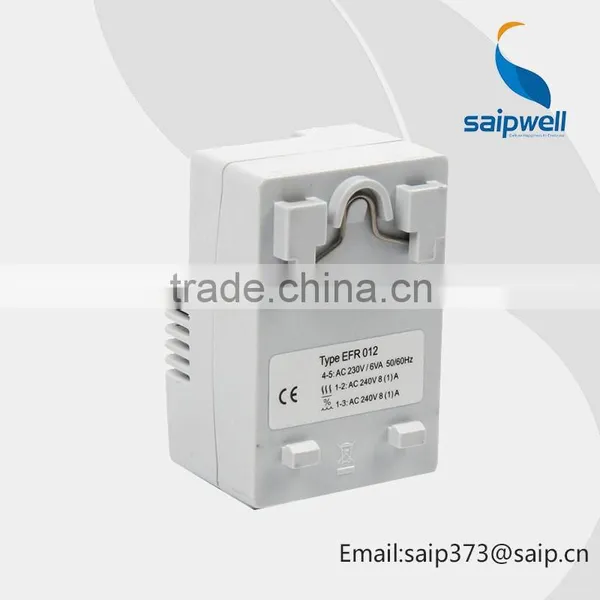

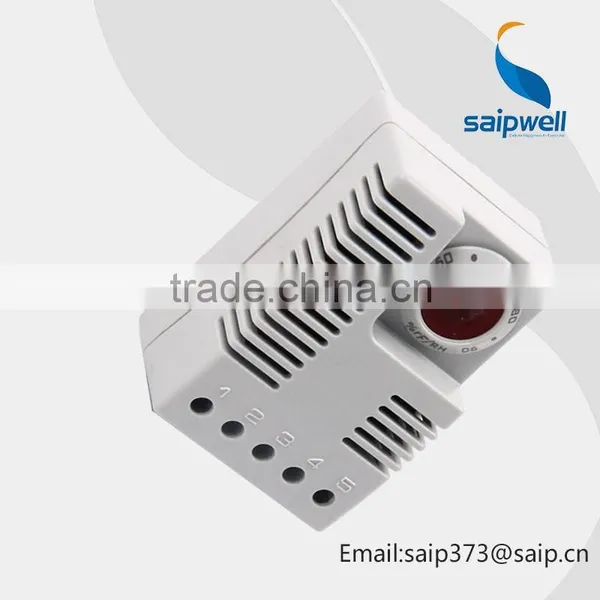

Thermostats For Fan Heaters Thermostat Temperature Range ( EFR 012)
Thermostat Temperature Range
Thermostats For Fan Heaters Feature
1.Temperature and humidity adjustable
2.Optical operating display (LED)
3.High switching capacity
4.Clip fixing
Product Description:
The electronic hygrotherm senses the ambient temperature and relative humidity in an enclosure with electric/electronic components, and turns on a heater (or alternatively, a fan) at either set point, helping prevent the formation of condensation in the enclosure. The LED integrated in the adjustment knob on the active controller is lit when the connected device is in operation.
Thermostats For Fan Heaters Paramaters
Thermostat Temperature Range
| Switch difference (temperature) | 2K (± 1K tolerance) at 25°C/77°F (50% RH) |
| Switch difference (humidity) | 4% RH (± 1% tolerance) at 25°C/77°F (50% RH) |
| Reaction time (humidity) | approx. 5 sec. |
| Contact type | change-over contact (relay) |
| Contact resistance | < 10m |
| Service life | NC: > 50,000 cycles |
| NO: > 100,000 cycles | |
| Max. Switching capacity (Relay output) | NC: 240VAC, 6 (1) A |
| NO: 240VAC, 8 (1.6) A | |
| NC: 120VAC, 6 (1) A | |
| NO: 120VAC, 8 (1.6) A | |
| 24VDC, 4A | |
| EMC | acc. To EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
| Optical indicator | LED |
| Connection | 5-pole terminal, clamping torque 0.5Nm max.: |
| rigid wire 2.5mm² | |
| stranded wire (with wire end ferrule) 1.5mm² | |
| Mounting | clip for 35mm DIN rail, EN50022 |
| Casing | plastic according to UL94 V-0, light grey |
| Dimensions | 77 x 60 x 43mm |
| Weight | approx. 0.20kg |
| Fitting position | vertical |
| Operating / Storage temperature | 0 to +60°C (+32 to +140°F) / -20 to +80°C (-4 to +176°F) |
| Protection type | IP20 |
| Art. No. | Operating voltage | Setting range temperature | Setting range humidity | Approval |
| 01230.0-00 | 230VAC, 50/60Hz | 0 to +60°C | 50 to 90% RH | VDE + UL File No. E164102 |
| 01230.9-00 | 120VAC, 50/60Hz | +32 to +140°F | 50 to 90% RH | UL File No. E164102 |
| 01230.9-01 | 120VAC, 50/60Hz | 0 to +60°C | 50 to 90% RH | UL File No. E164102 |
Thermostat Temperature Range
Thermostats For Fan Heaters Show
Thermostat Temperature Range
Thermostat Temperature Range
Thermostats For Fan Heaters Drawing
Thermostat Temperature Range
Thermostat Temperature Range
Thermostats For Fan Heaters Recommend
Thermostat Temperature Range
Thermostat Temperature Range
Certicificate
Thermostat Temperature Range
Thermostat Temperature Range
