Specifications
auto thermostat housing1.newly design
2.good quality
uld be customized(like size ,color, finish etc.
High Quality Auto Thermostat Housing Thermostat Hygrostat Controller(KTS 011)
Thermostat Hygrostat Controller
Auto Thermostat Housing Feature

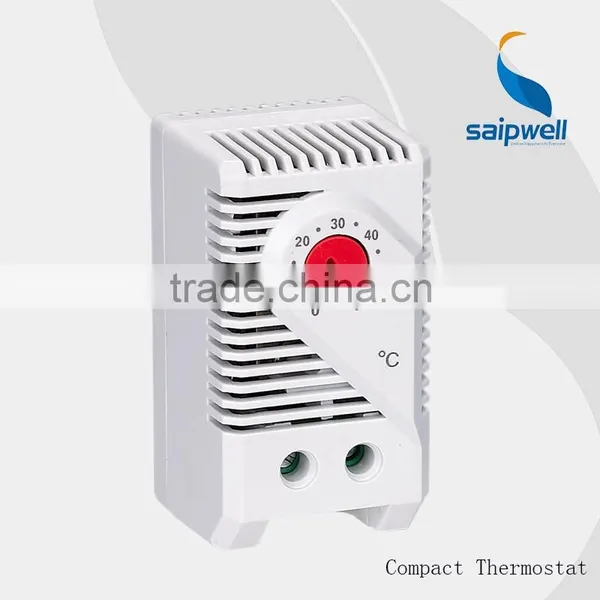

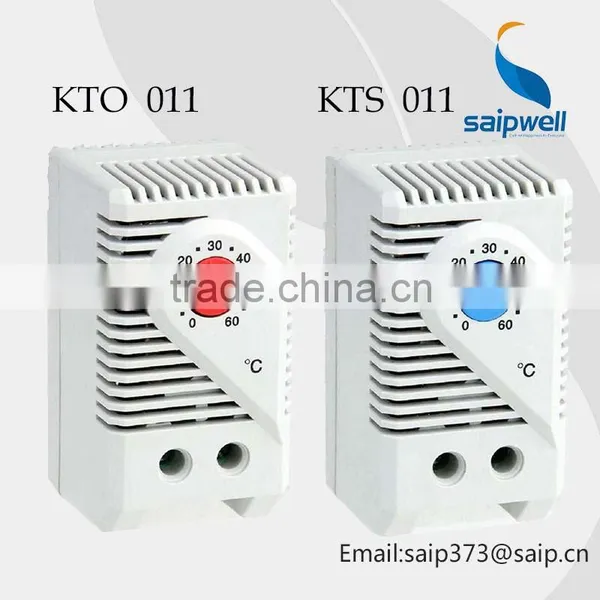

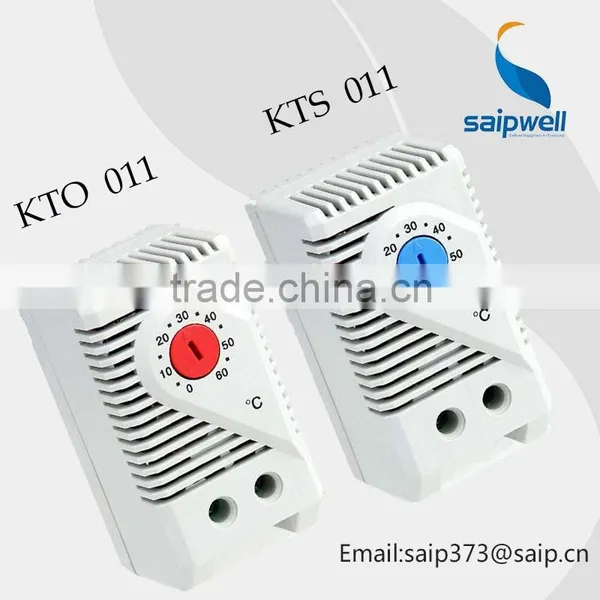

KTO 011/KTS 011 Small Compact Thermostat:
1.Large setting range
2.Small size
3.Simple to mount
4.High switching performance
5.CE&RoHS
Product Description:
KTO 011:Thermostat (Normally Closed),contact breaker for regulating heaters.
KTS 011:Thermostat (Normally Open),contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.
Auto Thermostat Housing Paramaters
Thermostat Hygrostat Controller
Switch Temperature Difference |
7K (± 4K tolerance) |
Sensor element |
thermostatic bimetal |
Contact type |
snap-action contact |
Service life |
> 100,000 cycles |
Max. Switching capacity |
250VAC, 10 (2) A |
|
120VAC, 15 (2) A |
|
DC 30W |
Connection |
2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm² |
Mounting |
clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series) |
Casing |
plastic according to UL94 V-0, light grey |
Dimensions |
60 x 33 x 43mm |
Weight |
approx. 40g |
Fitting position |
variable |
Operating / Storage temperature |
-45 to +80°C (-49 to +176°F) |
Operating / Storage humidity |
max. 90 % RH (non-condensing) |
Protection type |
IP20 |
Setting range |
Art. No. Contact Breaker (NC) |
Art. No. Contact Maker (NO) |
Approvals |
0 to +60°C |
01140.0-00 |
01141.0-00 |
CE |
-10 to +50°C |
01142.0-00 |
01143.0-00 |
CE |
+20 to +80°C |
01159.0-00 |
01158.0-00 |
CE |
+32 to +140°F |
01140.9-00 |
01141.9-00 |
CE |
+14 to +122°F |
01142.9-00 |
01143.9-00 |
CE |
0 to +60°C |
01146.9-00 |
01147.9-00 |
CE |
Thermostat Hygrostat Controller

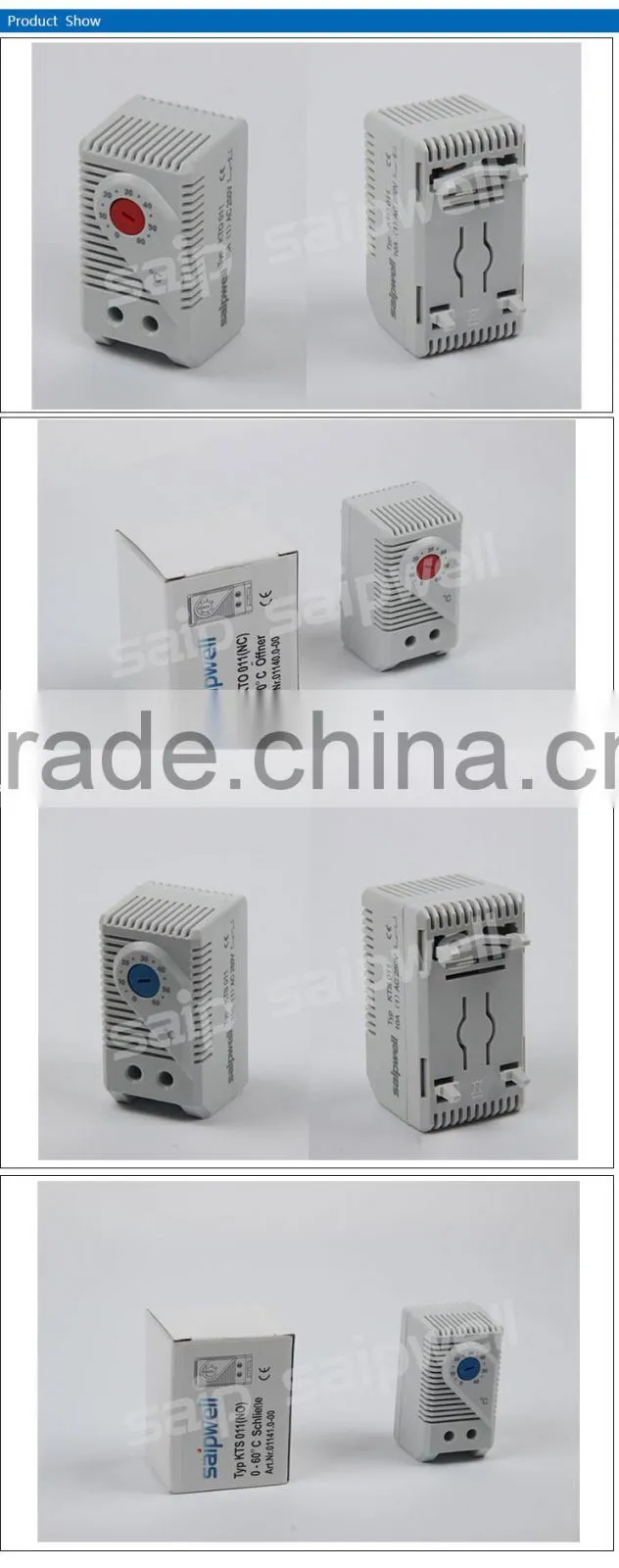

Auto Thermostat Housing Show
Thermostat Hygrostat Controller
Thermostat Hygrostat Controller

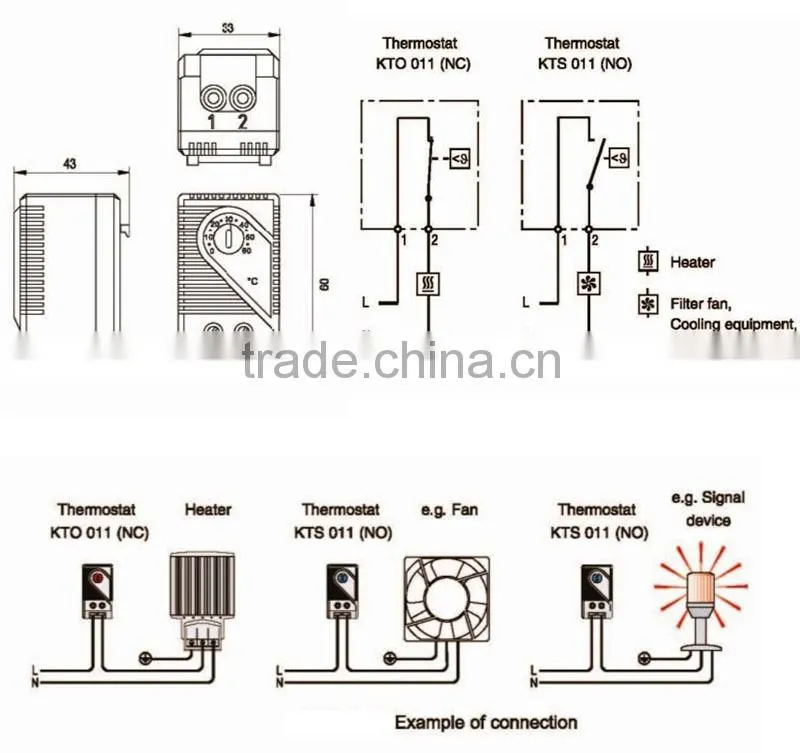

Auto Thermostat Housing Draing
Thermostat Hygrostat Controller
Thermostat Hygrostat Controller
