temperature controller pt100 FZK011
Product Features:
1. High DC breaking capacity
2. Adjustable temperature
3. Low hysteresis
4. Change-over contact
5. Clip fixing
Switch temperature difference |
4K (± 1.5K tolerance)* |
Sensor element |
thermostatic bimetal |
Contact type |
change-over snap-action contact |
Contact resistance |
< 10mOhm |
Service life |
> 100 000 cycles |
Max. switching capacity, NC |
250VAC, 10 (4) A |
|
DC 30W |
Max. switching capacity, NO |
250VAC, 5 (2) A |
|
DC 30W |
EMC |
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
Connection |
4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |
Mounting |
clip for 35mm DIN rail, EN50022 |
Casing |
plastic according to UL94 V-0, light grey |
Dimensions |
67 x 50 x 38mm |
Weight |
approx. 0.10kg |
Fitting position |
variable |
Operating/Storage temperature |
-20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F) |
Protection type |
IP20 |
Pictures:

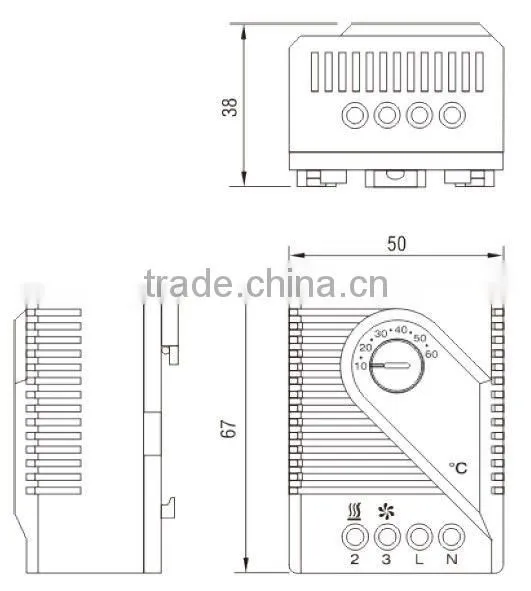

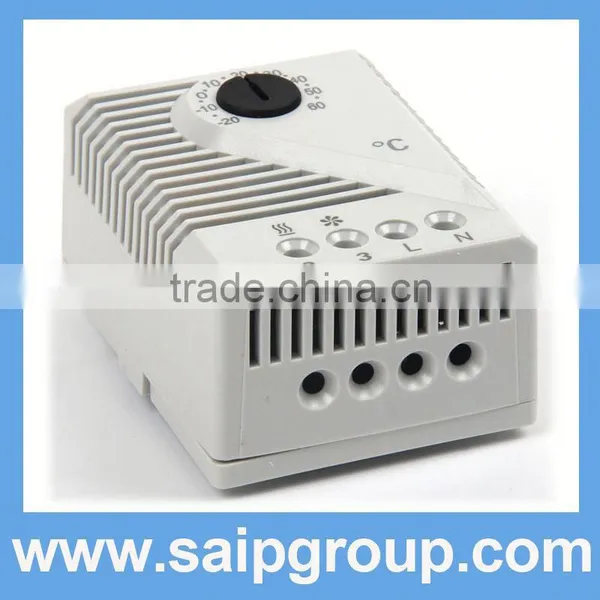

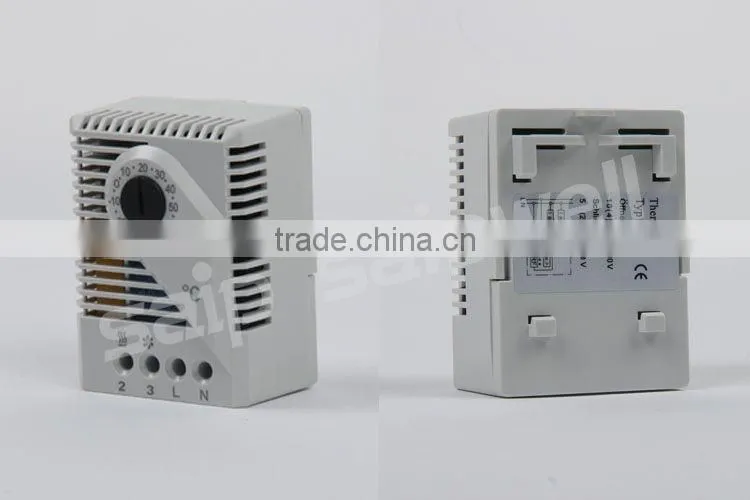

Appearance:
temperature controller pt100
temperature controller pt100

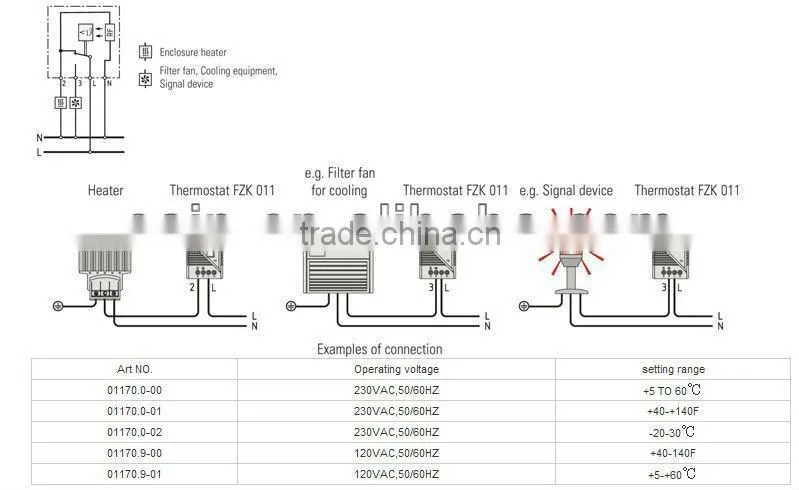

Connection:
temperature controller pt100
Certificate:
temperature controller pt100
Saip Company:
temperature controller pt100
