18 Inch 16 Inch Rubber Mixing Mill Machine, Open Mixing Mill
US$ 200,000 - 300,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Open Mixing Mill
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Port of Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lab Rubber Mixing MillUS$ 5,000 - 100,000MOQ: 1 Set -
High Quality XK-450 Open Rubber Mixing MillUS$ 5,000 - 100,000MOQ: 1 Set
-
Open Type Rubber Machine Mixing MillUS$ 5,000 - 100,000MOQ: 1 Set
-
Xk-560 Open Mixing Mill Machine With Stock-blenderUS$ 5,000 - 100,000MOQ: 1 Set
-
Rubber Mixing Mill Xk-450 Two Roll OpenUS$ 5,000 - 100,000MOQ: 1 Set
Condition
New
Type
Open Mixing Mill
Place of Origin
Shandong, China
Brand Name
JINRUNQI
Model Number
XKP-450
Voltage
380V/50HZ
Power(W)
55KW
Dimension(L*W*H)
5200x2380x1770mm
Weight
13000KG
Certification
CE ISO SGS
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas

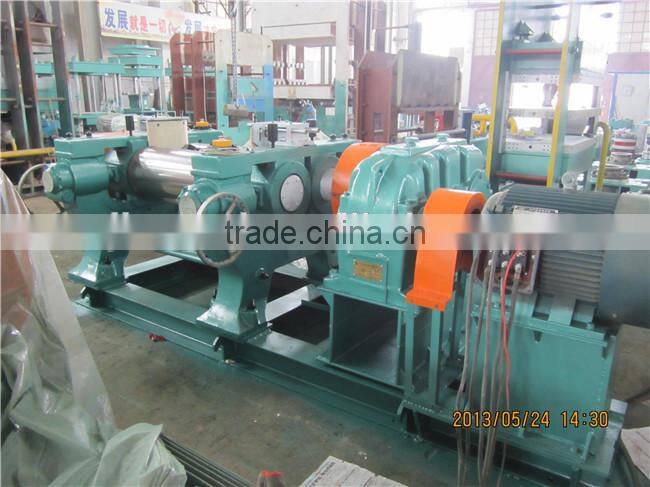

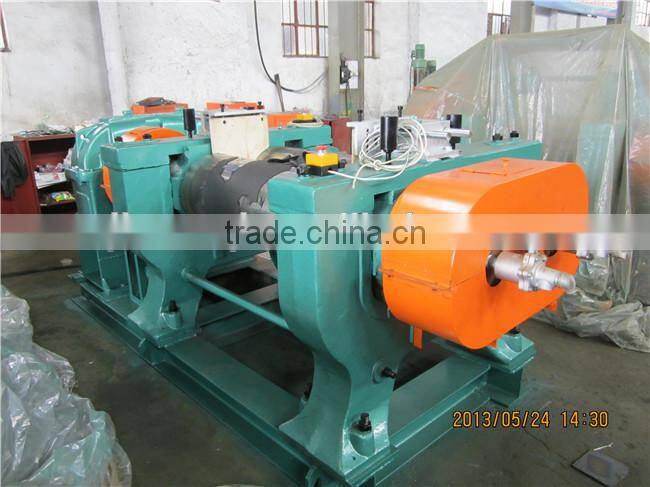

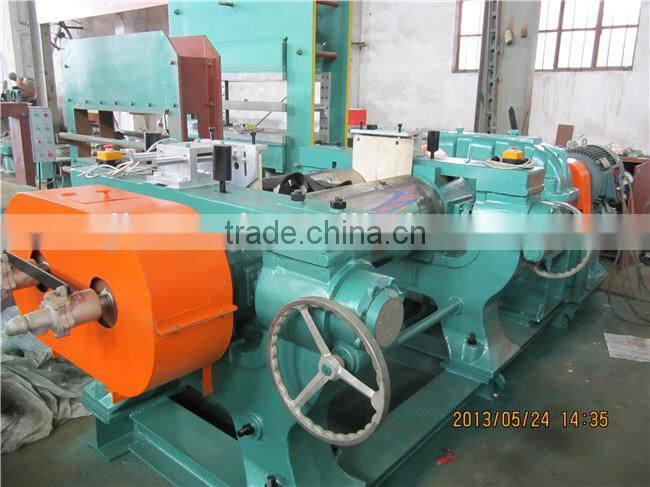

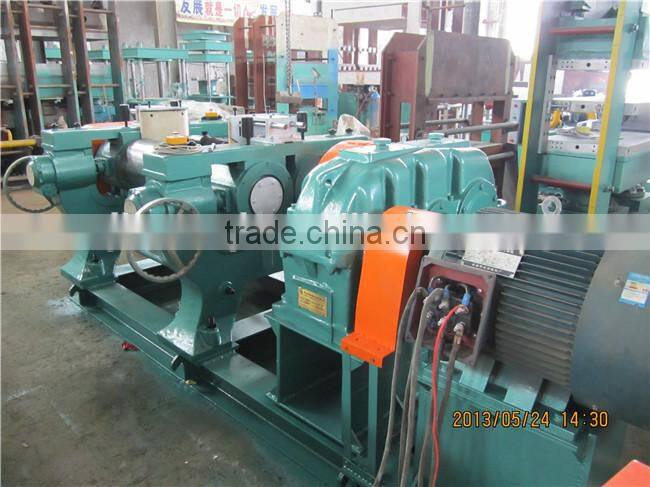

18 inch 16 inch Rubber Mixing Mill Machine, open mixing mill
Product Description
Structural Features:

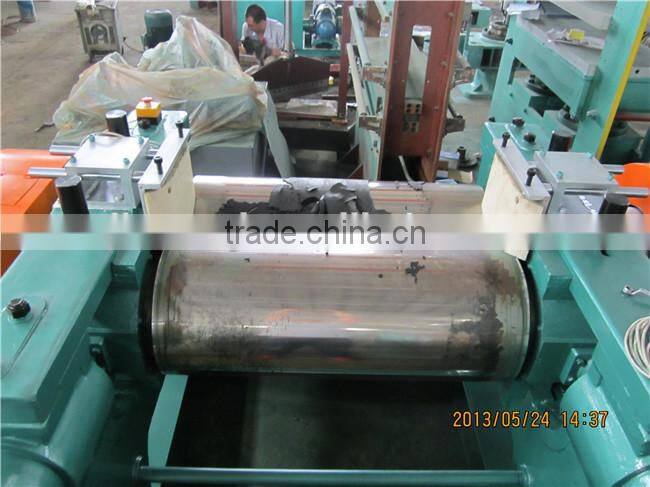

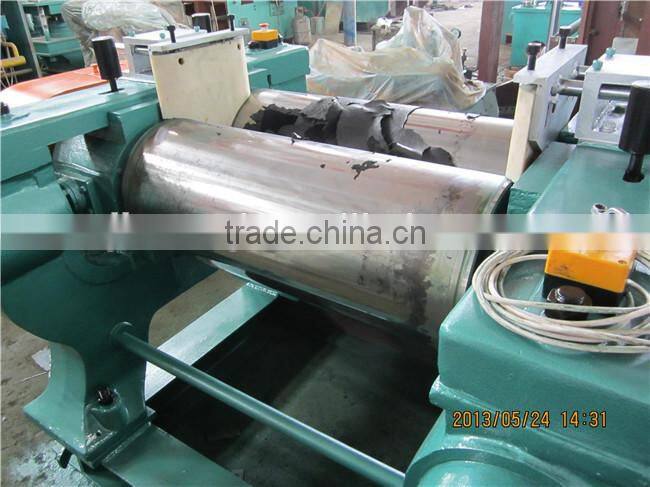

- The rolls are made of chilled cast iron with vanadium and titanium alloys. The roll face is hard anti-wear. The internal cavity is processed to make temperature well proportioned on the roll surface.
- The machine is equipped with an overload protection device to protect the major components from being damaged due to overloading.
- The machine is equipped with an emergency device, when an emergent accident happens, just draw the pull rod, the machine will stop immediately. This device is safe and reliable.

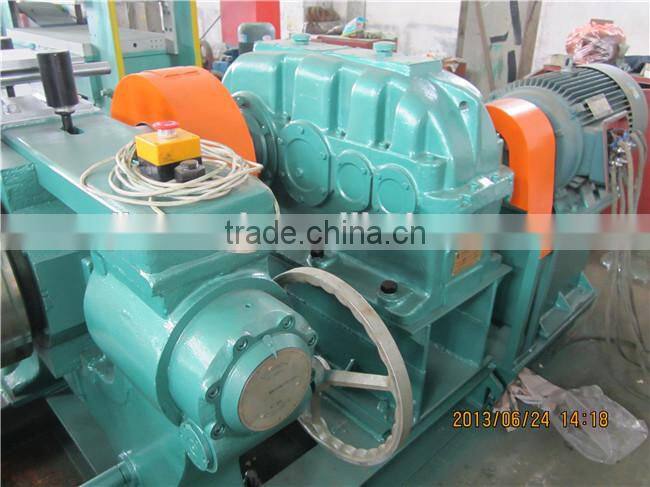

- The transmission system adopt ordinary or hard facing gear reducer, which has a compacted structure, this reducer with higher transmission, efficiency, lower noise and long working life.
Applications:
- The machine is applicable for plasticating, warming and mixing rubber and plastic.
- The machine is used to make rubber sheet and mix recycling powder into reclaimed rubber.
Main Technical Data:
| Model&Specifications | XK-150 | XK-250 | XK-360 | XK-400 | XK-450 | XK-550 | XK-560 | XK-660 |
| Working diameter of F.& B. Rolls ( mm ) | 150 | 250 | 360 | 400 | 450 | 550 | 560 | 660 |
| Working length of F.& B. Rolls ( mm ) | 280 | 620 | 900 | 1000 | 1200 | 1500 | 1530 | 2130 |
| Linear speed of F. Rolls | 8 | 14.9 | 17.4 | 19.3 | 24.5 | 27.2 | 27.7 | 28 |
| Linear speed ratio of F.& B. Rolls ( mm ) | 1:1.4 | 1:1.7 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.29 | 1:1.12 | 1:1.24 |
| Maximum Roll Gap ( mm ) | 10 | 10 | 10 | 10 | 15 | 15 | 15 | 0.5-15 |
| Gap regulating Mode | Manual | Manual | Manual | Manual | Manual or Electric | Manual or Electric | Manual or Electric | Electric |
| Batch capacity ( KG/Batch ) | 1-2 | 10-15 | 20-25 | 25-35 | 25-50 | 50-60 | 50-65 | 165 |
| Main Motor Power ( KW ) | 7.5 | 18 | 30 | 37 | 55 | 90/110 | 90/110 | 240 |
| Speed reducer | Worm-gear Reducer | Ordinary Type or hardend-gear Reducer | Ordinary Type or hardend-gear Reducer | Ordinary Type or hardend-gear Reducer | Ordinary Type or hardend-gear Reducer | Ordinary Type or hardend-gear Reducer | Ordinary Type or hardend-gear Reducer | Ordinary Type or hardend-gear Reducer |
| Overall diamension ( mm ) | 1080x796x1415mm | 3400x1350x1500mm | 3940x1780x1740mm | 4250x1850x1870mm | 5200x2380x1770mm | 6260x2330x1750mm | 6290x2330x1780mm | 7280x3400x2530mm |
| Weight ( KG ) | 1100 | 3500 | 5670 | 7600 | 13000 | 20000 | 20400 | 47000 |
Our Services
Company Information
Our company is QINGDAO Jinrunqi Rubber Machinery CO.,LTD. Our main products are plate vulcanizing machine, curing press, rubber machine, conveyer belt vulcanizing press, Rubber crushing mill, Rubber refining mill, rubber tiles vulcanizing press, tire building machine, rubber kneader, two-roll mixing mill and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .
If you interested in our products mentioned above. Kindly let us know by return email
Also we can make non-standard rubber machinery as customer’s requirements.
