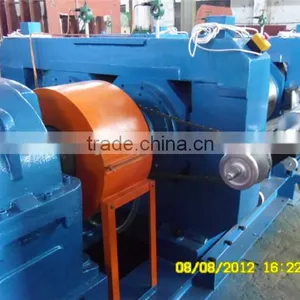

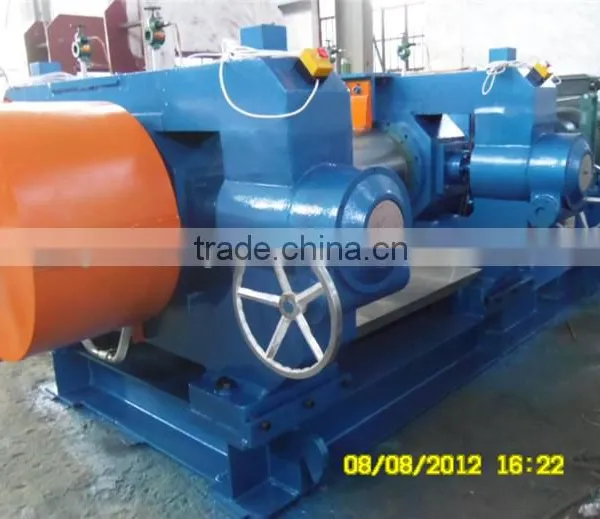

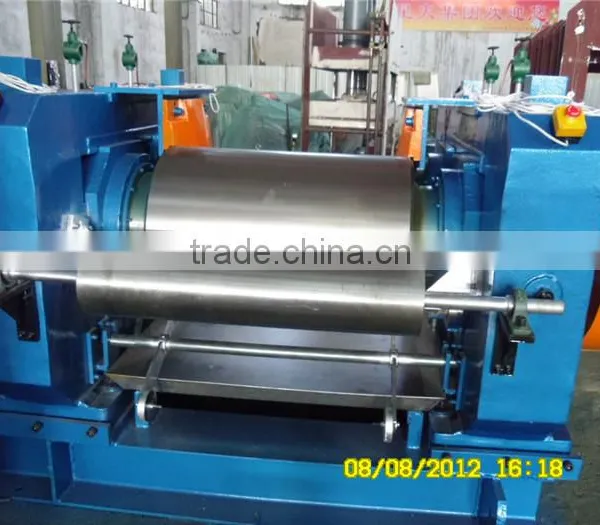

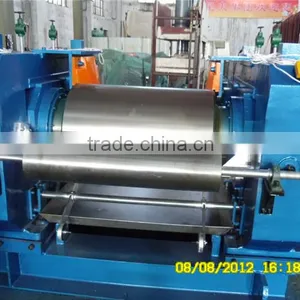

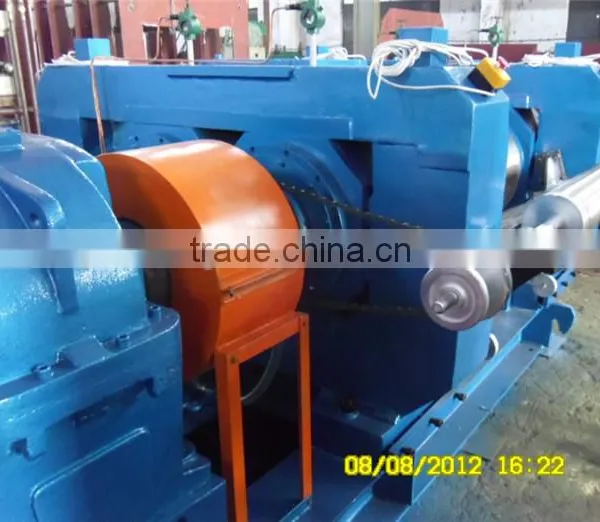

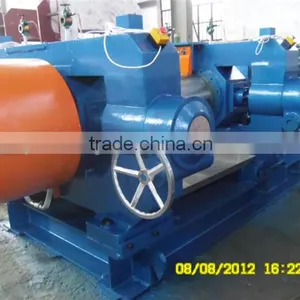

XKJ-480 rubber refining mill machine/reclaimed rubber machine
Structural Features:
The roll is made of chilled cast iron with vanadium and titanium alloys. The roll face is hard and anti-wear. Both the front roll and the back roll are plain. The internal cavity of the roll is processed to make temperature well proportioned on the roll surface.
The machine equipped with overload protection device to prevent the major components from being damaged due to overloading.
The transmission system adopts NGW hard facing gear reducer or ordinary reducer, which has compacted structure with higher transmission efficiency, low noise and longer working life.
The machine is equiped with scraper and wind up unit, which can take the reclaiming rubber off from the winding-up roller.
Application:
To improve impurity in reclaimed rubber, working with rubber mixing mill and devulcanizer make the relclaimed rubber production line.
MainTechnical data:
| Type | XKJ-400 | XKJ-480 |
| Working diameter of rollers (mm) | 400 waiste drum | 480 waist drum |
| Working length of rollers (mm) | 650 | 800 |
| Working speed of front rollers (m/min) | 18.3 | 26.6 |
| Friction ratio of front and rear roller | 1:1.8 | 1:1.75 |
| Capacity (kg) | 300 | 500 |
| Main motor power (kw) | 55 | 75 |
| Overall size ( L x W x H ) (mm) | 4750x2300x1835 | 5500x2500x1900 |
| Weight | 7500 | 15000 |
We are QINGDAO Jinrunqi Rubber Machinery CO.,LTD. Our main products are plate vulcanizing machine, curing press, rubber machine, conveyer belt vulcanizing press, Rubber crushing mill, Rubber refining mill, rubber tiles vulcanizing press, tire building machine, rubber kneader, two-roll mixing mill and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .
If you interested in our products mentioned above. Kindly welcome to our factory for a visit and let us know by return email. Also we can make non-standard rubber machinery as customer’s requirements.
