3 Layers Hot Sale Full Automatic High Speed Air Bubble Film Making Machine
- 10 Set / Sets per Month
- LELIU PORT RONGQI PORT BEIJIAO PORT
- T/T D/P D/A
Product Details
Condition: | New | Application: | Film | Plastic Processed: | PE |
Screw Design: | Other, Single-screw, Single-screw | Automatic Grade: | full automatic | Place of Origin: | Guangdong, China |
Brand Name: | Ztech | Model Number: | ZT200-3S | Voltage: | 380V, 380V, 50HZ, 3 PHASES |
Power(W): | 163KW | Dimension(L*W*H): | 8000*6500*2800mm | Weight: | 9000KG |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Ztech Plastic Machinery Manufacturing Co., Ltd.

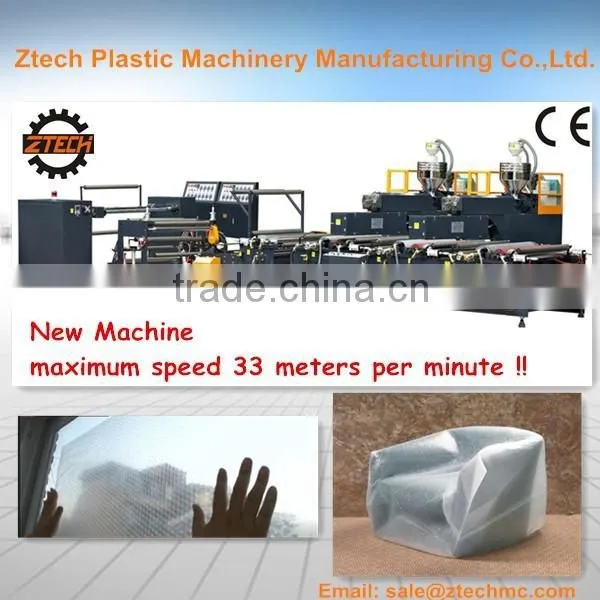

Air Cushion Film / Bubble Film Bag Making Machine

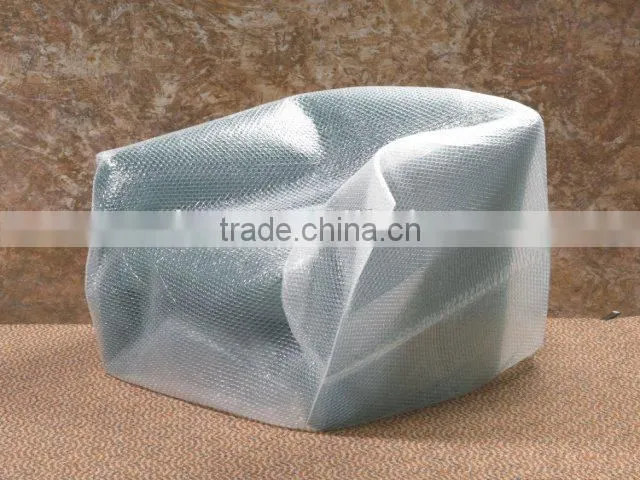

Bubble Sample
3 Layers PE Air Bubble Film Machine(Single-Screw Design) | |
Model | ZT200-3S |
Material | LDPE/LLDPE/Recycle Material |
Finish Film Width (mm) | 2000 |
Line Speed(m/hr) | 800m/hr-2200m/hr (Top Speed 33 meters/minute) |
Thickness(gram/square meter) | 2 layers:25g/sm-300g/sm 3 layers:45g/sm-350g/sm |
Main Screw Diameter(mm) | Φ90mm |
Sub Screw Diameter | Φ65mm |
Screw L:D ratio | 30:1 |
Rewinder Max. Dia (mm) | Φ1000mm |
Vacuum Pump (kW) | 3.0 |
Machine Power Supply | 380V, 50HZ,3 PHASES |
Total Power(kW) | 180 |
CE certification
About us
Ztech has various Welding equipment and Machining equipment, which is meet the different customer’s demands. Convenient transportation network, advance production equipment and perfect management system ensure that the company’s product quality and rapid and healthy development. Complete product specifications, reasonable price, and the sales networks around the world make the sales and after-sales service more considerate and fast.
Ztech is a global player, providing the highest quality machinery to Southeast Asia, Middle East, Europe, Africa, New Zealand, Russia, America, Canada, Korea, Thailand and more than ten other countries and districts worldwide.
