Specifications
Infrared Motion Sensor1.High performance
2.OEM service
3.CE,RoHS certificate
4.2 years warranty
infrared motion sensorLX-PR-28F
Specifications:
Power source:100V/AC-130V/AC
220V/AC-240V/AC
Power frequency:50HZ~60HZ
power source(emitter):DC12V
Emit frequency:433MHz
Sense distance:4m~10m(adjustable)
Light control:<15LUX~>1000 LUX (adjustable)
Rated load:1200W(220V/AC~240V/AC)
800W(100V/AC~130V/AC)
Sense angle:360°
Remote control distance:15m (wide place)
Working temperature:-10°C~+40°C
Workinghumidity:<95%RH
Install height:1.5m~3.5m
Power consumption:Working 0.45W(static 0.1W)
Sense motion speed:0.6~1.5m/s
Function:
> Accurate numeric LED display time-delay function: it can be accurate to second, 1sec~999sec for your
choice,operation simple and using convenient;
>Impulse mode is another new function, when one enters its sense range, it will start load to turn on 0.5sec,
that give effect of alert signal. in this mode, the sense time interval is adjustable, default is 50sec;

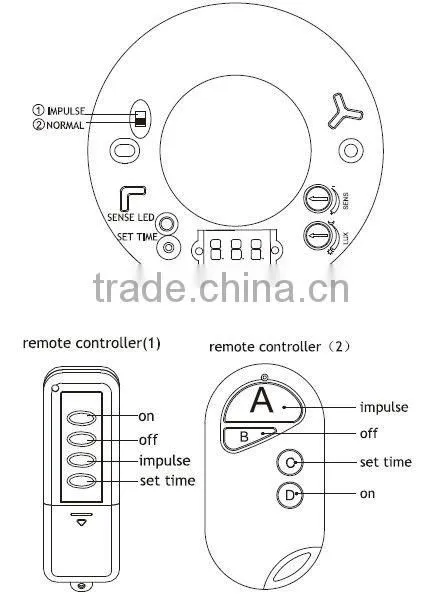

>SET TIME button: used to set time, the details is in SET TIME WAY.
>Switch: convert NORMAL mode and IMPULSE mode;
> SENSE LED;
> Sensitivity(SENS) is adjustable;
> Light control(LUX) is adjustable;
> 2 remote controls are for your choice at will:
Summary:
LX-PR-28F has 3 high-sensitivity detectors, it adopts IC, numeric LED display and SMT technology; the 3
detectors compose wide detecting range; it use infrared energy form human body as its control source, when
one enter its sense range, it can start controlled load (for example: lamp); after leaving the range, the load will
go out automatically within set time.
LX-PR-28F has remote controller, the controller can remote control the unit 30m away from controller.
We can add new function for you and produce it according to your requirement. Hope our product will take you
convenience.
....
