Specifications
2012 New infrared motion sensor LX28A1.High performance
2.OEM service
3.CE,RoHS certificate
4.2 years warranty
2012 New infrared motion sensor LX28A
Specifications:
Power source:220V/AC-240V/AC 100V/AC-130V/AC
Power frequency:50HZ~60HZ
Time setting: min:8±3sec max: 7±2min
Detection angle:360°
Ambient light: <3lux~daylight
Working temperature:-10~+40°C
Detection distance(22°C):8m max.dia.
Rated load:1200W (220-240V/AC)
800W (110V/AC)
3000W(220-240V/AC)
1500W (110V/AC)
Power consumption:0.45W (static 0.1W)

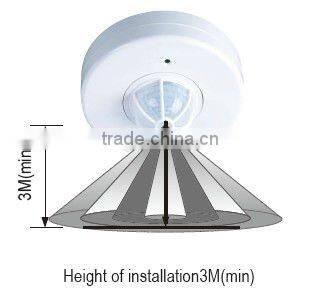

Installation height: >3m
Detection motion speed:0.6~1.5m/s
Working humidity:<95%RH
IP:20
Function:
Identify day and night automatically. Can adjust light-control according to your desire: when turn to SUN
(max), it will work in the daytime and at night. When turn to MOON (min), it will only work under less than
3LUX circumstance. As for adjustment, please refer to testing way.
Detection range can be set according to installation position and detection field.
The power show and detection show: the indicator lamp will flash one time each 4 seconds after
switching on the power, and flash two times per second when receiving the signal. At the same time, it
shows the sensor in the normal detection conditions.
Time setting is added continually: when it receives the second induction signal after the first inductor, it
will compute time once more on the rest of the first time delay basic. (Set time)
Time setting adjustment: it can be set according to your desire. The minimum is 8±3 sec; the maximum
is 7±2min.
Summary:
The product is a new saving-energy switch, it adopts good sensitivity detector, integrated circuit and SMT.
It gathers automatism, convenient safe, saving-energy and practical functions. Three detectors inside
compose a wide range detection field, it utilizes the infrared energy from human as control-signal source, it
can start the load at once when one enters detection field. It can identify day and night automatically. It is
easy to install and used widely, possessing the functions of power show and detecting show.
....
