2013 airflow monitor with mounting clamp and mounting clip
- 5000 Unit / Units per Month
- Ningbo/Shanghai
- T/T Credit Card
- 2013 airflow monitor/airflow sensor/ airflow meter
- 2013 Hot sale airflow stream monitor with grille
- 2013 compact fan and filter fan air flow monitor LC/LCF013
- 2013 direct manufacturer airflow monitor meter LC/LCF013
- 2013 lcf013 industrial fan and filter airflow switch
- 2013 electric airflow monitor for filter fan LC/LCF013
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Saip | Model Number: | LC 013 |
Usage: | Industrial | Theory: | Other, airflow velocity |
Packaging Details
Standard export packing
Product Description
Specifications
1.Mechanical switch contact2.Versatile fields of application
3.Small size
4.Easy to connect
2013 airflow monitor with mounting clamp and mounting clip
The airflow monitor (NC/NO) is designed to indicate the loss of air movement of a fan or filter fan.
The contact detects the loss of air movement caused by fan failure or blocked filter media regardless of direction of air.
Its simple mechanical operation makes it a viable alternative to electronic monitoring systems.
Technical Data
Contact type | reed / magnet contact |
Normally closed (NC) | switch contact open when air is flowing |
Normally open (NO) | switch contact closed when air is flowing |
Max. switching voltage | NC: 240VDC (UL), 240V AC/DC (VDE) / NO: 60VDC |
Max. switching current | NC: DC 500mA / NO: DC 170mA |
Max. switching capacity | 10W (resistive load) |
Switching threshold of airflow velocity | > 2.5m/s (hysteresis: > 1m/s) |
Max. airflow velocity | 50m/s |
Contact resistance | < 370mOhm (with wire) |
Max. air humidity | 70% RH (not precipitating) |
Service life | > 100 000 cycles |
Connection | 2 x single strand AWG 28, length 500mm, tip of stranded wire 5mm stripped and tinned (NC: black, NO: blue) |
Mounting | alternatively integrated in protective grille (see table), mounting clamp or mounting clip |
Casing | plastic according to UL94-HB, black |
Fitting position | bidirectional tab perpendicular to airflow |
Operating/Storage temperature | -20 to +50°C (-4 to +122°F) / -20 to +80°C (-4 to +176°F) |
Protection type | IP20 |
Approvals | VDE + UL File No. E250507 |
Note | The product of switching voltage and switching current must not exceed 10W. The max. voltage and max. current must not be exceeded, not even short-term (voltage/current peaks). The resulting voltage and current peaks of inductive or capacitive loads must be restricted by a contact protection circuit. |
Description | Art. No. (NC) | Art. No. (NO) | Weight (approx.) |
Airflow monitor with mounting clamp and mounting clip LC 013 | 01300.0-00 | 01300.1-00 | 5g |

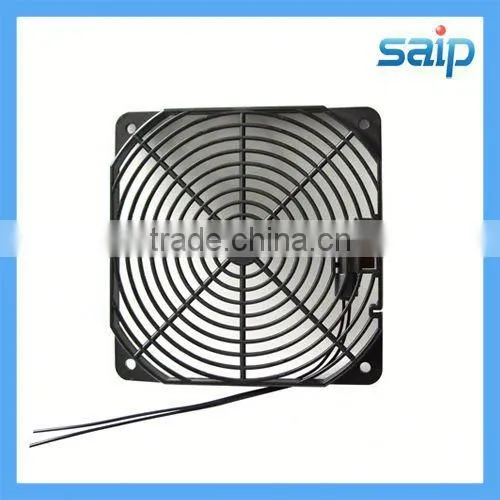

Airflow integrated in protective grille (plastic) LCF 013 | 01301.0-00 | 01301.1-00 | 20g |
Airflow integrated in protective grille (plastic) LCF 013 | 01302.0-00 | 01302.1-00 | 20g |
Airflow integrated in protective grille (plastic) LCF 013 | 01303.0-00 | 01303.1-00 | 30g |
Technical Drawing
Example of connection
Airflow monitor Display
