5 layers steady performance air bubble film machinery
5 layers steady performance air bubble film machinery
Ztech Techonology

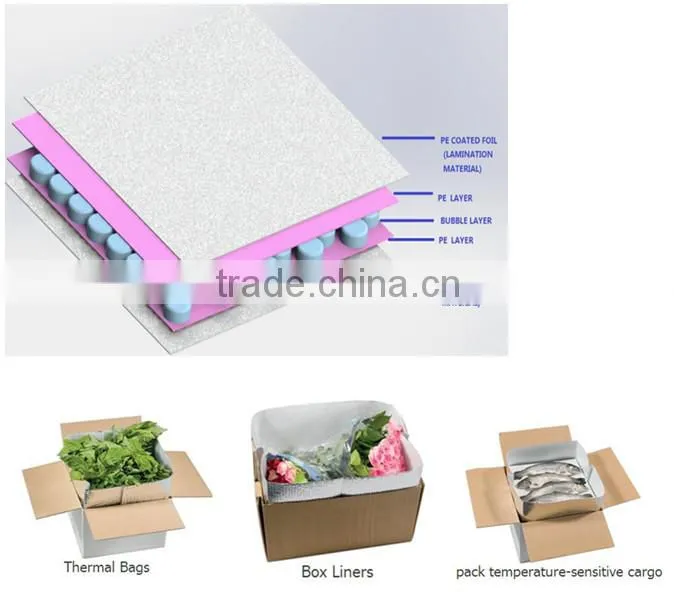

1.Produces two layers(Bubble Layer + PE Layer ) or three layers air bubble film(PE Layer + Bubble Layer + PE Layer )
2.Each three layers can be separately controlled and with different material and different formula and color.
3.In-line Lamination bubble film with PE coated material (PE coated Aluminum Foil, PE coated Kraft Paper, EPE Foam, PE Film etc.)
5 layers steady performance air bubble film machinery
Bubble Sample
5 layers steady performance air bubble film machinery
| 5 Layers PE Air Bubble Film Lamination Machinery (Twin-Screw Design) | |
| Model | ZT100-5T |
| Layer | 5 |
| Material | LDPE/LLDPE/ Recycle Material |
| Finish Film Width (mm) | 1000 |
| Line Speed(m/hr) | 800-1800 |
| Capacity(kg/hr) | 78-140 |
| Thickness (gram/square meter) |
2 layers: 25g/sm-300g/sm 3 layers: 45g/sm-350g/sm |
| Main Screw Diameter(mm) | Φ55mm/Φ55mm |
| Sub Screw Diameter(mm) | Φ55mm |
| Main Motor Power(kW) | 11kw+11kw |
| Sub Motor Power(kW) | 11 |
| Total Power(kW) | 125 |
| Consumption Power(kW) | 37 |
| Weight(kg) | 7700 |
Package
CE certification
About us
Ztech Plastic Machinery Manufacturing Co., Ltd. is a hi-tech enterprise focusing on design, R&D, production, sales and service of high quality air bubble film machines.
The main products of Ztech are that 2 Layers PE Air Bubble Film Machinery, 3 Layers PE Air Bubble Film Machinery, 5 Layers PE Air Bubble Film Lamination Machinery, 7 Layers PE Air Bubble Film Lamination Machinery, kraft bubble envelope machine, air bubble film (PE foam sheet bag making machine) etc.
