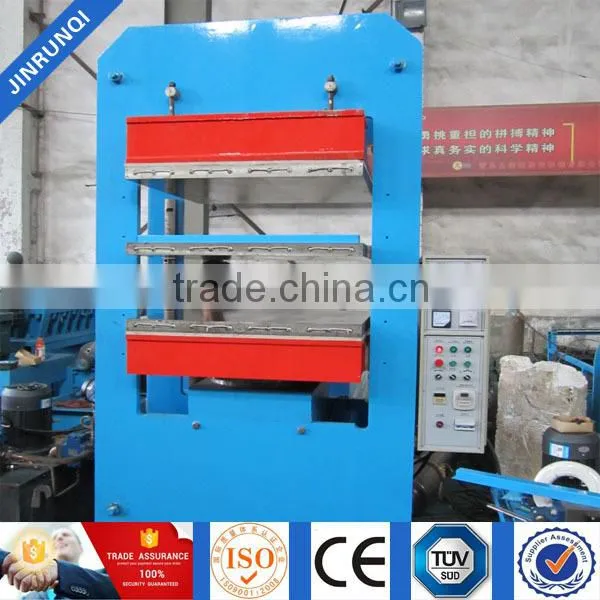

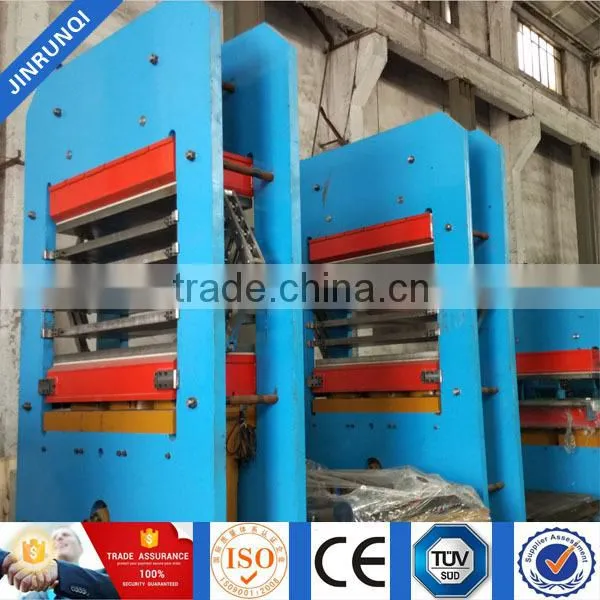

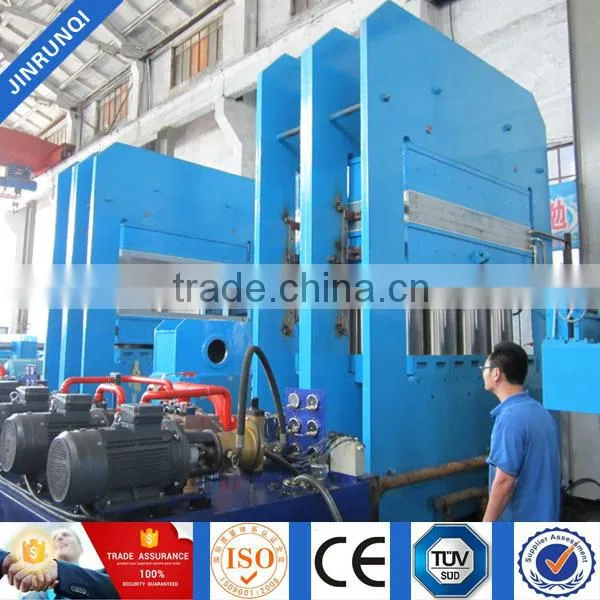

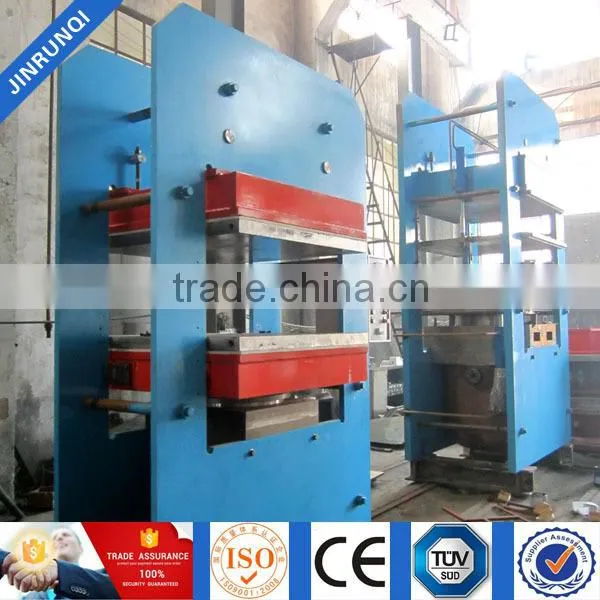

The following pictures are diferent sizes press amchines for your reference:
The following is some infomation of standard rubber hydraulic press amchine/rubber vulcanizing press amchine.
Technical data:
Type |
800*800 |
1000*1000 |
1200*1200 |
1500*1500 |
Nominal clamp mould force |
1.6mn |
2.0mn |
2.5mn |
3.15mn |
Piston size |
800*800 |
1000*1000mm |
1200*1200mm |
1500*1500mm |
Number of cylinder |
1 |
1 or 2 or 3 pieces |
1 or 2 or 3 pieces |
1 or 2 or 3 pieces |
Piston diameter |
¢360mm |
¢400mm |
¢450mm |
¢500mm |
Stroke of piston |
300mm |
300mm |
300mm |
300mm |
Distance between hot plate |
300mm |
300mm |
300mm |
300mm |
Unit area pressure of hot plate |
2.5Mpa |
2.0Mpa |
1.8Mpa |
1.5Mpa |
Power |
3.0KW |
5.5KW |
8.0KW |
8.0KW |
Overall size(L*W*H)(mm) |
900*1600*2500mm |
1100*1900*3600mm |
1300*2100*4000mm |
1600*2450*4200mm |
Weight |
4000kgs |
5800kgs |
6800kgs |
8000kgs |
Close mould speed |
≥6 |
≥6mm/s |
≥6mm/s |
≥6mm/s |
Open mould speed |
≥4 |
≥4mm/s |
≥4mm/s |
≥4mm/s |
We can produce all kinds of rubber machines according to client's requirements!!!
After Sales Service:
1. We will offer you one year guarantee
2. We will give you reply and solution within 24 hours.
Packaging Details: wooden case
Delivery Detail: within 30 days
