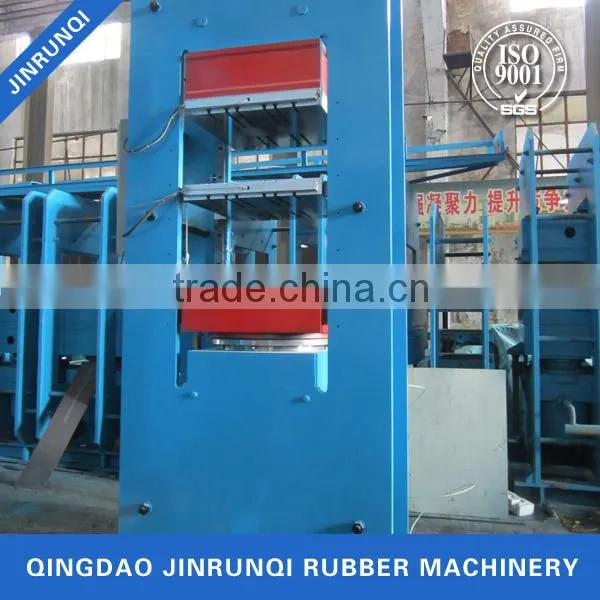

Rubber Vulcanizing Machine/two Daylight Curing Press

Name: Rubber Vulcanizing Machine/two Daylight Curing Press
Brand: JINRUNQI
SKU: 129505945
Availability: InStock

US$ 8,000 - 300,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

JINRUNQI

Qingdao Jinrunqi Rubber Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name JINRUNQI

Model Number 1200*1200

Voltage as client's requirements

Power(W) 8.0KW

Dimension(L*W*H) 1300*2100*4000mm

Weight 6800kgs

Certification ISO/CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

The following pictures are diferent sizes press amchines for your reference:

The following is some infomation of standard rubber hydraulic press amchine/rubber vulcanizing press amchine.

Technical data:

Type	800*800	1000*1000	1200*1200	1500*1500
Nominal clamp mould force	1.6mn	2.0mn	2.5mn	3.15mn
Piston size	800*800	1000*1000mm	1200*1200mm	1500*1500mm
Number of cylinder	1	1 or 2 or 3 pieces	1 or 2 or 3 pieces	1 or 2 or 3 pieces
Piston diameter	¢360mm	¢400mm	¢450mm	¢500mm
Stroke of piston	300mm	300mm	300mm	300mm
Distance between hot plate	300mm	300mm	300mm	300mm
Unit area pressure of hot plate	2.5Mpa	2.0Mpa	1.8Mpa	1.5Mpa
Power	3.0KW	5.5KW	8.0KW	8.0KW
Overall size(LWH)(mm)	90016002500mm	110019003600mm	130021004000mm	160024504200mm
Weight	4000kgs	5800kgs	6800kgs	8000kgs
Close mould speed	≥6	≥6mm/s	≥6mm/s	≥6mm/s
Open mould speed	≥4	≥4mm/s	≥4mm/s	≥4mm/s
