Specifications
220vac relay1.newly design
2.good quality

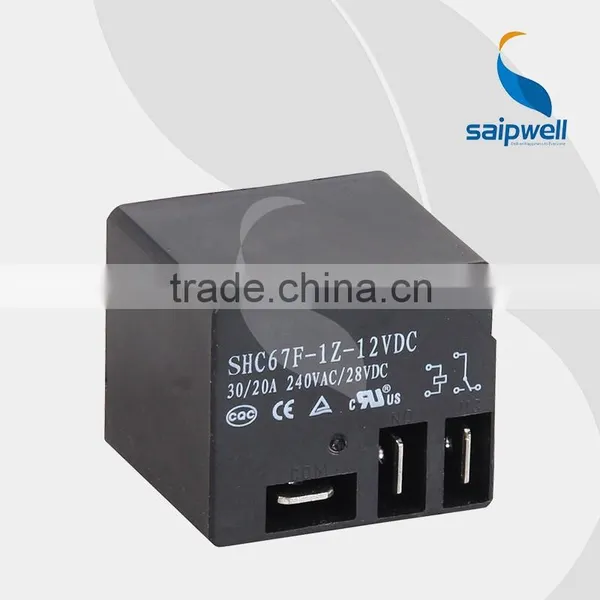

2014 High Quality 220v AC Relay (SHC67F)
220v AC Relay Feature
1. Small volume, light weight, high sensitivity, long service life
2. Contact capacity:30A,40A
3. Can be directly welded on a printed circuit board
220v AC Relay Paramaters
220v AC Relay
| Contact | Form | 1Z,1H,1D | |
| Rated Load (Resistive Leakage) | 30A 40A 240V/AC 28V/DC |
||
| Contact resistance (initial) | ≤100mΩ | ||
| Material | Silver alloy | ||
| Electric life | ≥105 | ||
| Machine life (300 times/min) | ≥107 | ||
| Max. allowed voltage (23℃) |
DC:≤75%×rated voltage AC:≤80%×rated voltage |
||
| Release voltage ( 23℃ ) |
DC:≥10%×rated voltage AC:≥30%×rated voltage |
||
| Maximum allowed voltage ( 23℃ ) | 110%×rated voltage | ||
| Norminal voltage | DC | DC:3-110v | |
| AC | AC:12v-240v | ||
| Coil power | DC:0.93W | ||
| AC:1.5vA | |||
| Pick-up time (rated voltage) | ≤15ms | ||
| Release time (rated voltage) | ≤10ms | ||
| Initial withstand | Between same-pole contacts | 1800VAC/1min(leakage current:1mA) | |
| Between contact and coil | 2500VAC/1min 4500/1min(leakage current:1mA) | ||
| Insulation resistance | ≥100mΩ(500VDC) | ||
| Ambient temperature | -55℃~70℃ | ||
| Ambient humidity | 35%-80%RH | ||
| Atmospheric pressure | 86-106KPa | ||
| Resistance resistance | 10G (sinusoidal half-wave pulse: 11ms) | ||
| Vibration resistance | 10-55Hz (double amplitude: 1.5mm) | ||
| Installation | PCB, , Flange | ||
| Packing | Inner box | 12relays in each bubble box,250relays in each bubble box | |
| Outer case | 600relays in each case,500elays in each case |
||
| Dimension of outer case |
500pcs:360*210*325MM 600pcs:360*210*325MM |
||
| Weight | Gross 23.1kg/box |
||
220v AC Relay

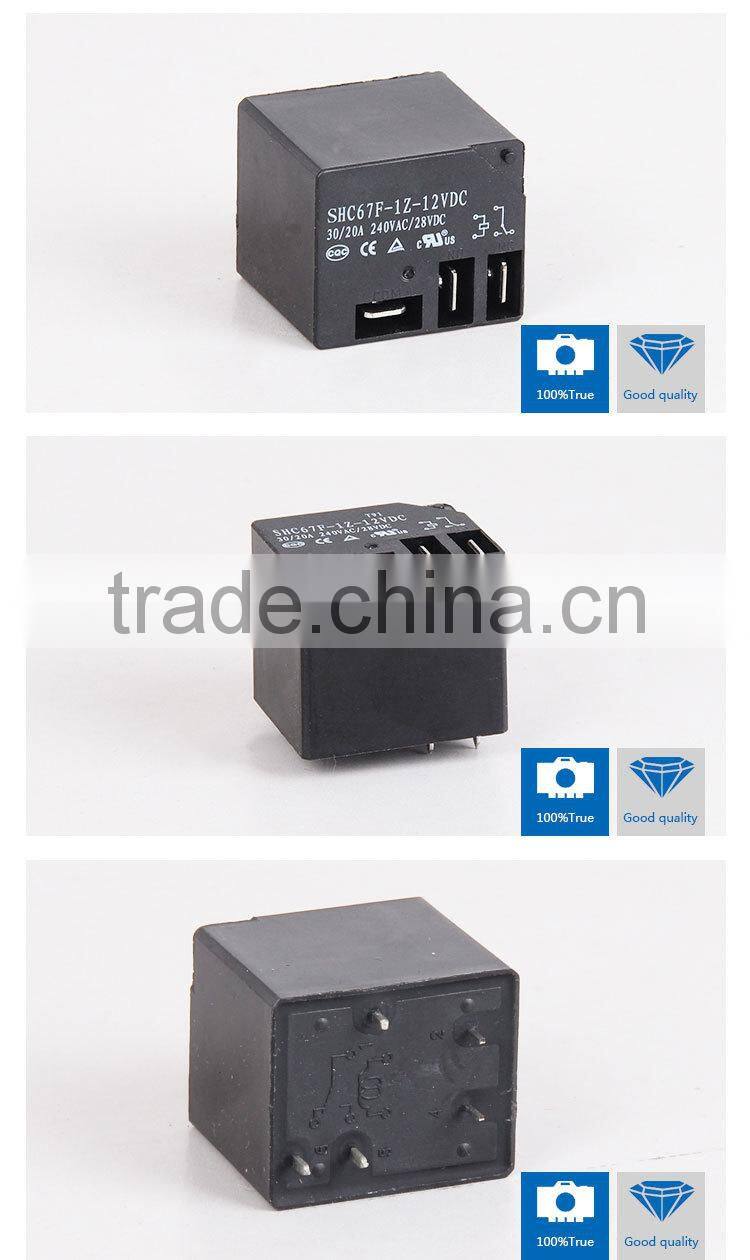

220v AC Relay Show
220v AC Relay
220v AC Relay

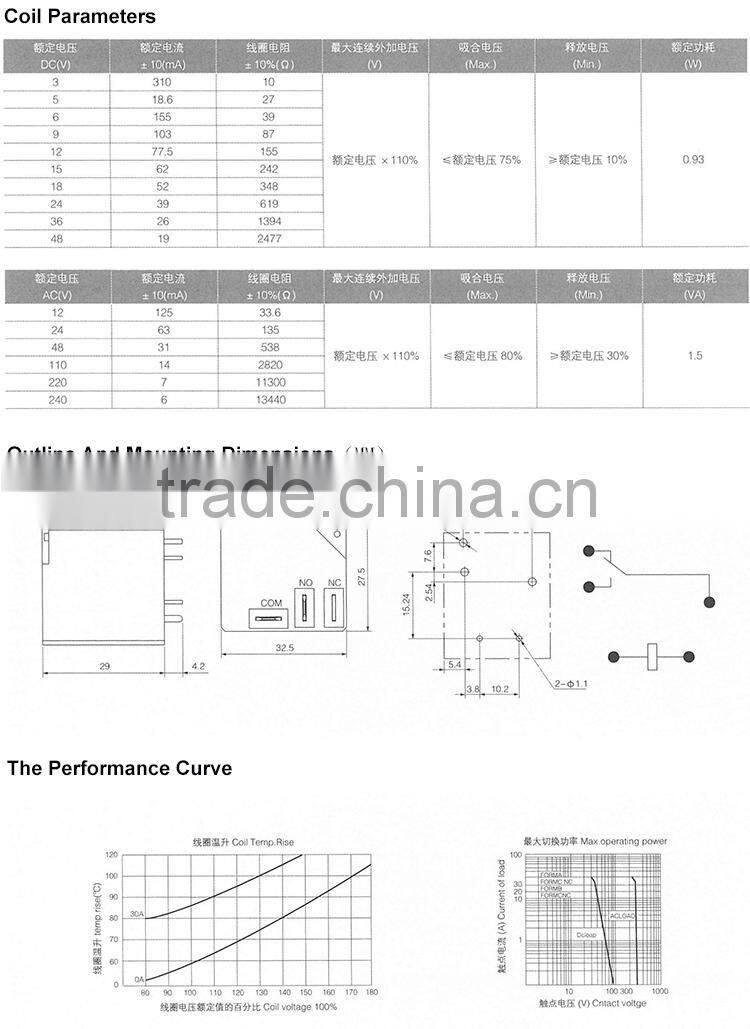

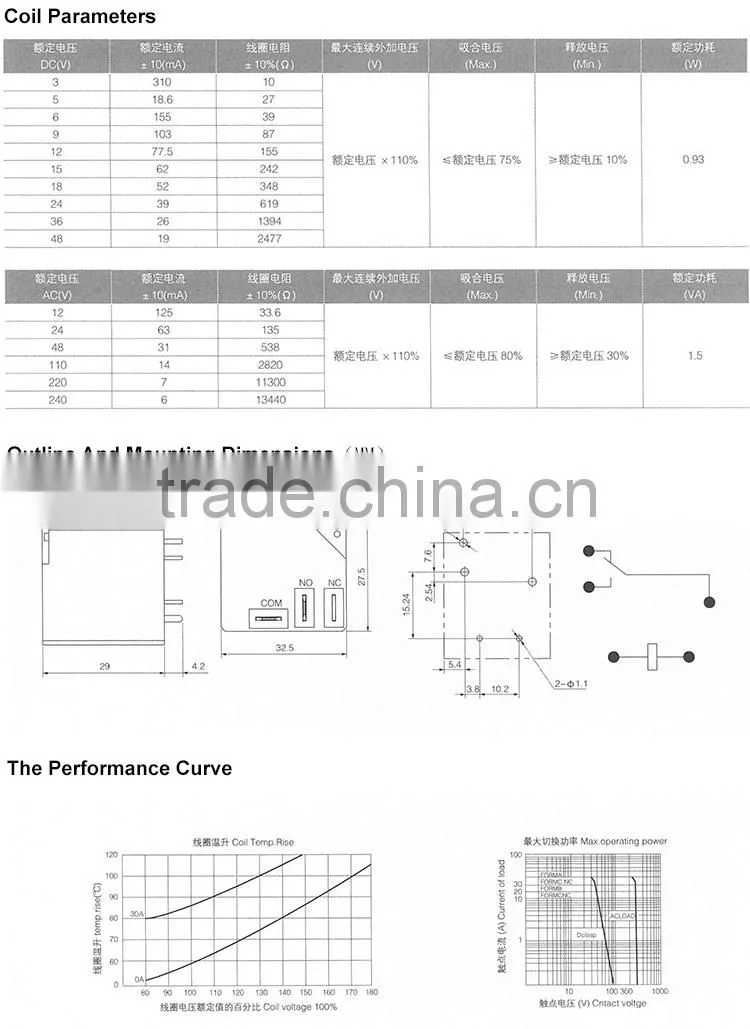

Details
220v AC Relay
220v AC Relay
12v AC Relay Product
220v AC Relay
220v AC Relay
Certificate
220v AC Relay
220v AC Relay
Saip Company
Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, production and sales of electric equipments.
Head office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".
We have 5 specialized branches,over 300 specialized cooperative partners.
Saip,an ISO9001 certificated enterprise.
With 20 years of development history, Zhejiang Saip Electric Co., Ltd. has become a modern enterprise integrating the production,sale with research.
