Qingdao Jinrunqi Rubber Machinery
Main products
1.Double Automatic Vulcanzing Press,Automatic Vacuum Vulcanizing Press,Rubber Injection Molding Machine,Solid Tire Vulcanizing press,Frame Type Plate vulcanizing press,Large plate vulcanizing press,Doplex"C" type vulcanizing press,sidewall /textile core/steel core conveyor belt production line
2.Rubber tiles vulcanizing press, Semi/auto waste tire recycling line,Reclaimed rubber production line
3.rubber kneader,rubber mixing mill, rubber calender,rubber crushing mill, Rubber refining mill,rubber extruder,Batch off cooler and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .

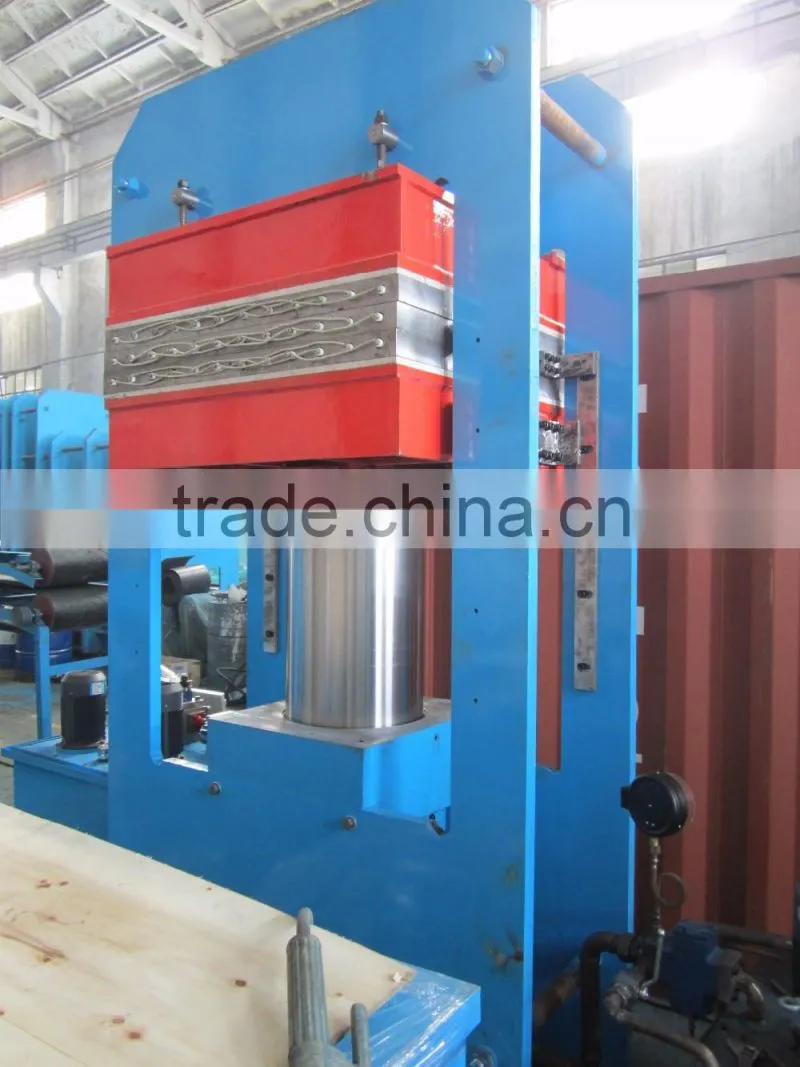

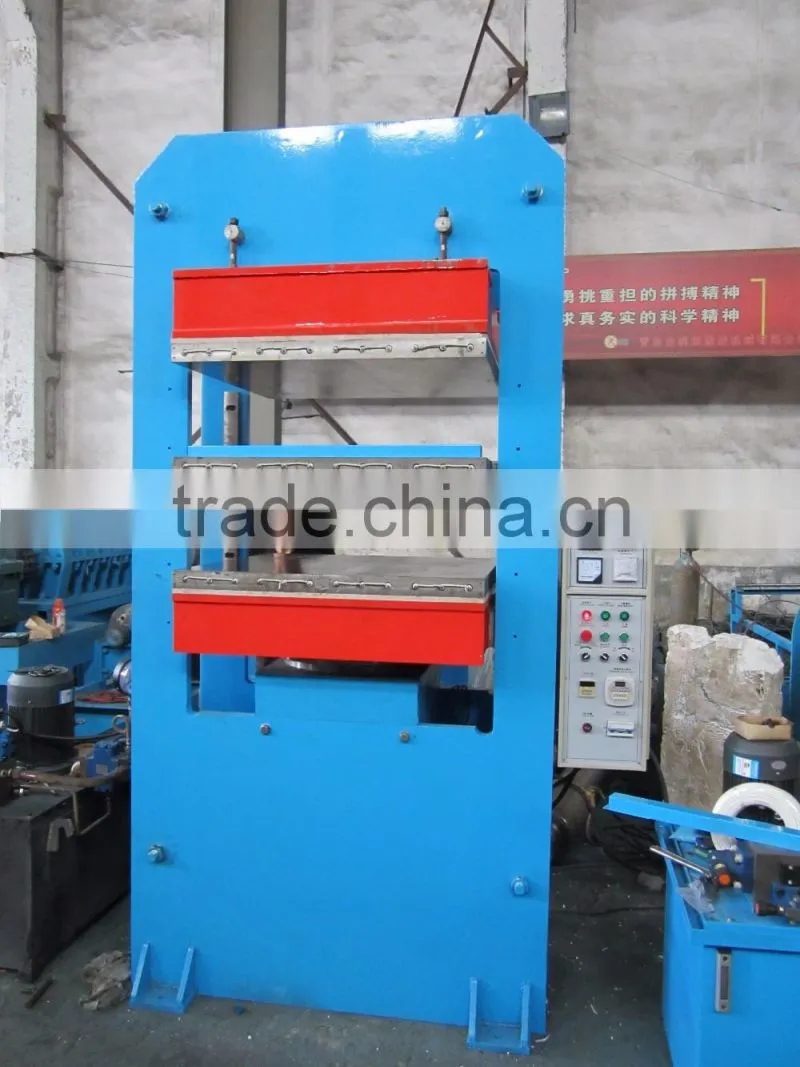

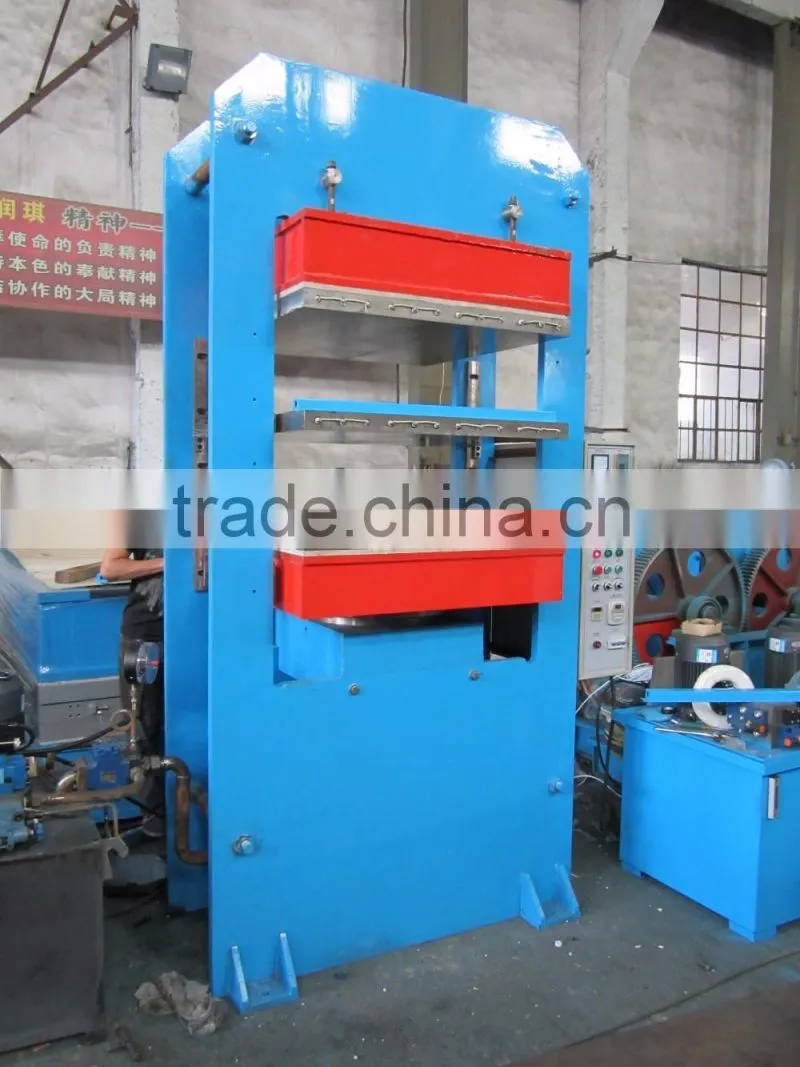

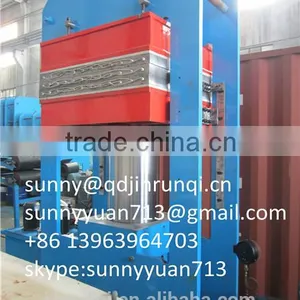

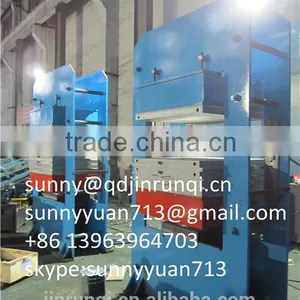

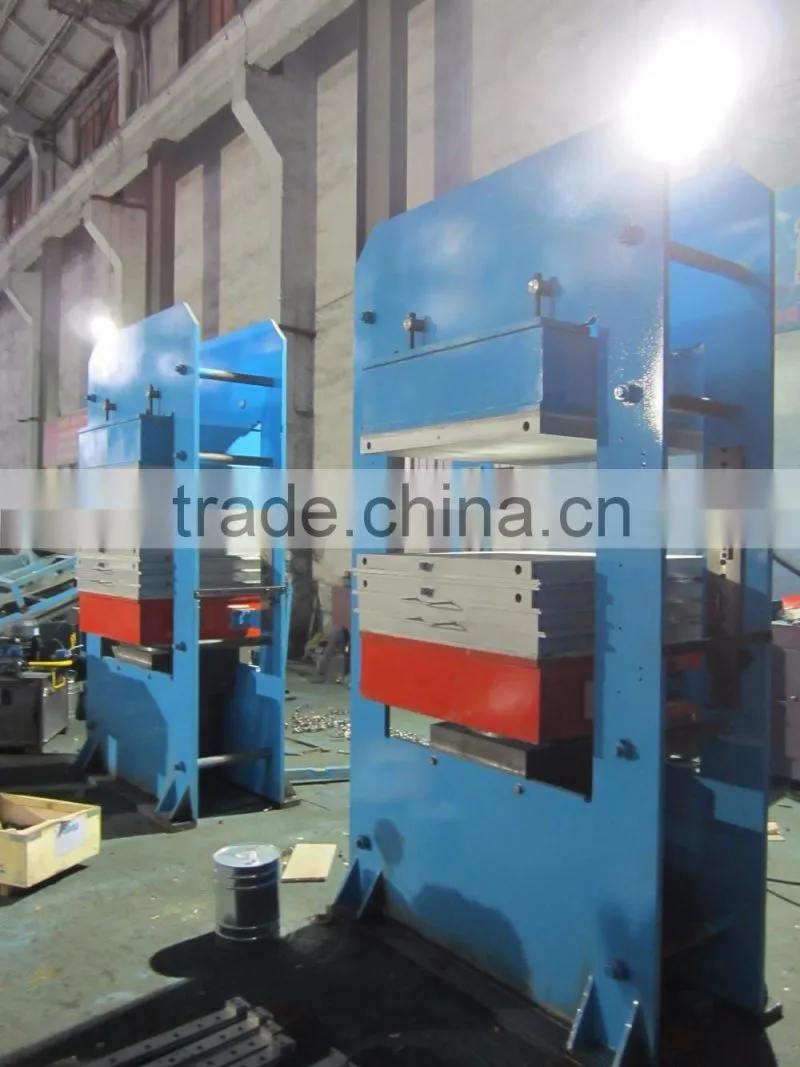

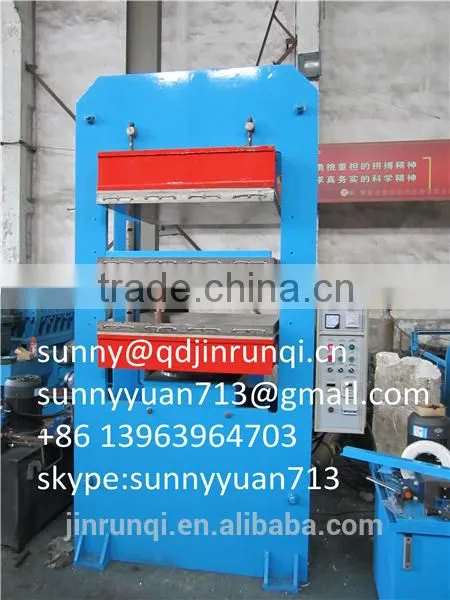

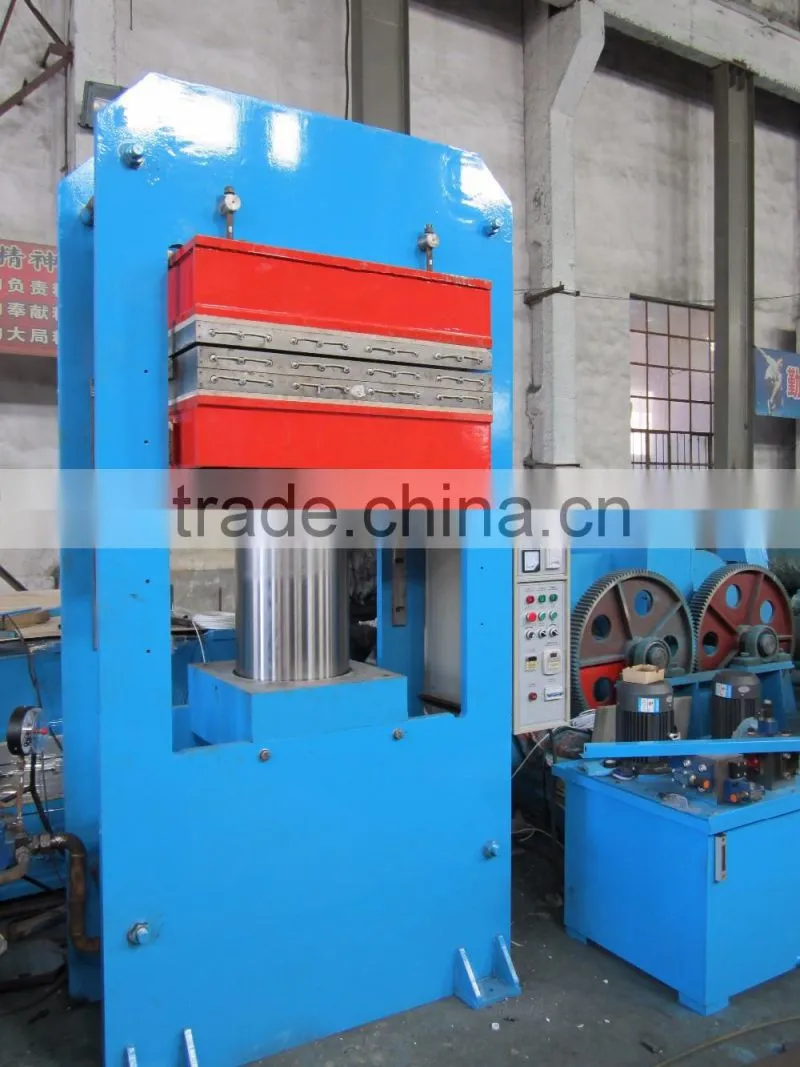

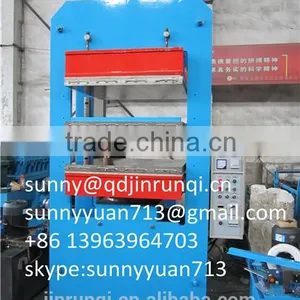

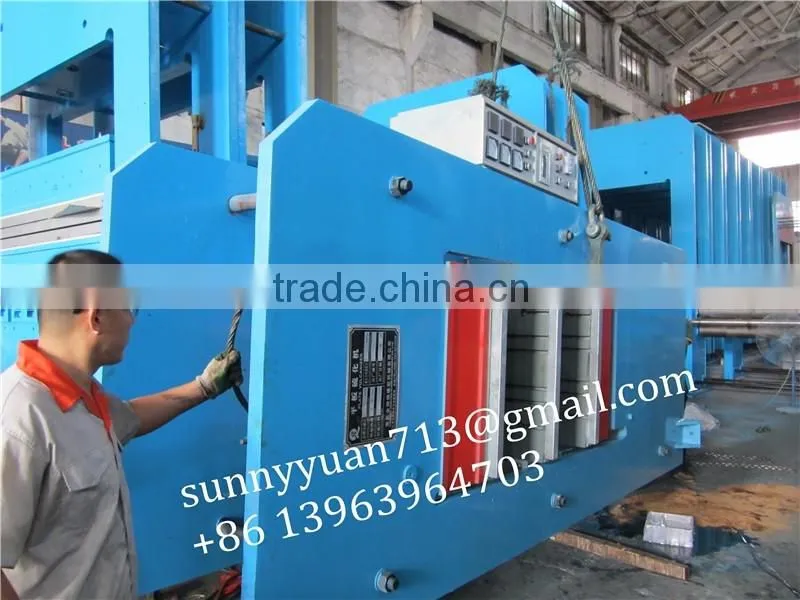

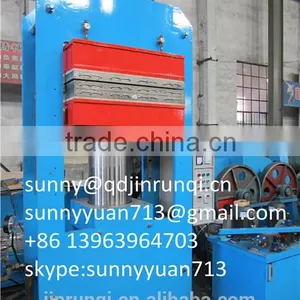

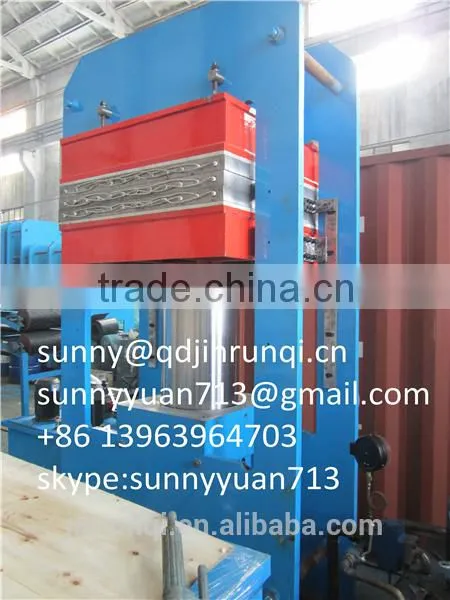

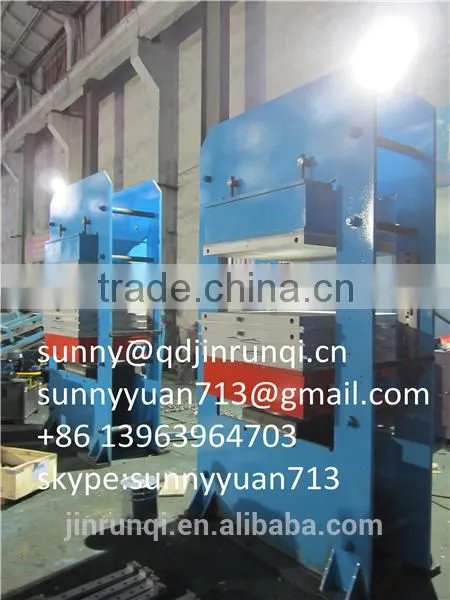

Plate Rubber Vulcanizer Press
Structural features:
1.Frame type vulcanizer is adopt frame structures,the platen and plunger are all made of superior material,they are accuracy processed and have high wear-resistance.
2.This series of vulcanizing press with high press in unit area,so that could ensure the quality.This machine were equipped with pulling and pushing device to reduce work strength.
3.Electrical system adopts PLC control, convenient and correct.
Rubber product
It is used to make conveyor belt,rubber sheets,rubber mat,rubber tile,rubber O-rings,rubber gasket,solid tyre,moulded rubber products etc
Plate Rubber Vulcanizer Press Main technical Parameters
| Type | 800*800 | 1000*1000 | 1200*1200 | 1500*1500 |
| Nominal clamp mould force (MN) | 1.60 | 2.00 | 2.50 | 3.15 |
| Piston size | 800*800 | 1000*1000 | 1200*1200 | 1500*1500 |
| Number of hydro-cylinder | 1 | 1 | 1 | 1 |
| Piston diameter(mm) | 360 | 400 | 450 | 500 |
| Stroke of piston (mm) | 300 | 300 | 300 | 300 |
| Distance between hot plate(mm) | 300 | 300 | 300 | 300 |
| Unit area pressure of hot plate(Mpa) | 2.5 | 2.0 | 1.8 | 1.5 |
| Power(KW) | 3.0 | 5.5 | 8.0 | 8.0 |
| Overall size(L*W*H)(mm) | 900*1600* | 1100*1900* | 1300*2100* | 1600*2450* |
| 2500 | 3600 | 4000 | 4200 | |
| Weight(kg) | 4000 | 5800 | 6800 | 8000 |
| Close mould speed(mm/s) | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 |
| Open mould speed(mm/s) | ≥4 | ≥ 4 | ≥ 4 | ≥ 4 |
Also we can make non-standard rubber machinery as customer’s requirements.
Plate Rubber Vulcanizer Press Plate Rubber Vulcanizer Press Plate Rubber Vulcanizer Press Plate Rubber Vulcanizer Press
1. Pre-sales Service:
Freely provide project designing, Professional suggestions, Quicky Response!
2. Medium-sales Service:

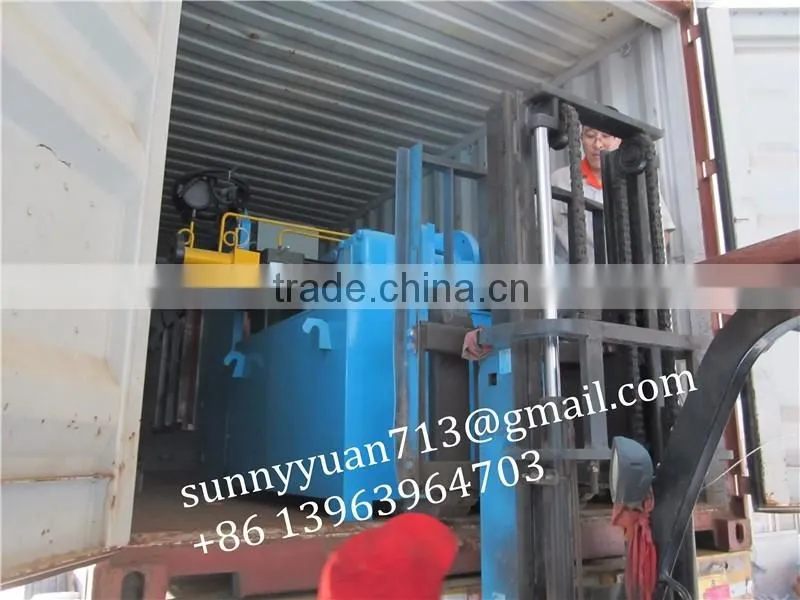

Accompany you to complete the purchasing, shipping, installing and training
3. After-sales service:
one year quality guarantee, Life-long Maintenance, Eneineer is avaliable to go overseas install and train your workers.
If you interested in our products mentioned above. Kindly welcome to our factory for a visit and let us know by return email.
