Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment

Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment photo-1

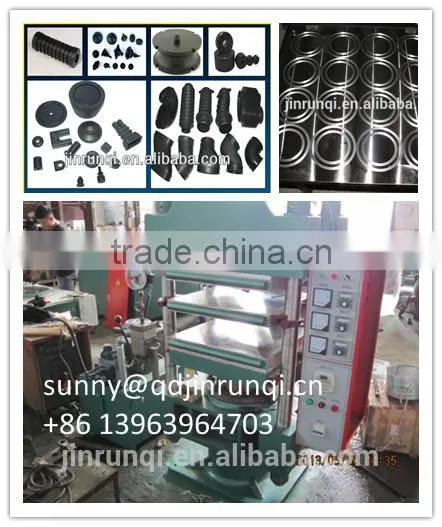

Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment photo-2

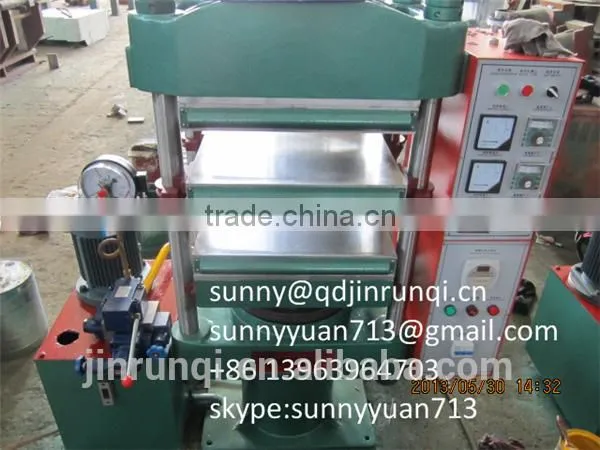

Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment photo-3

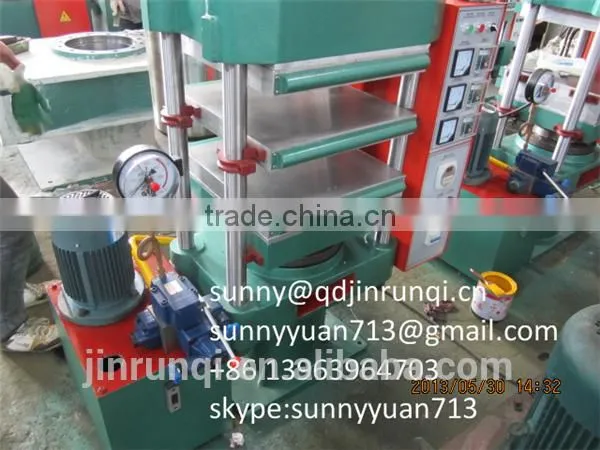

Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment photo-4

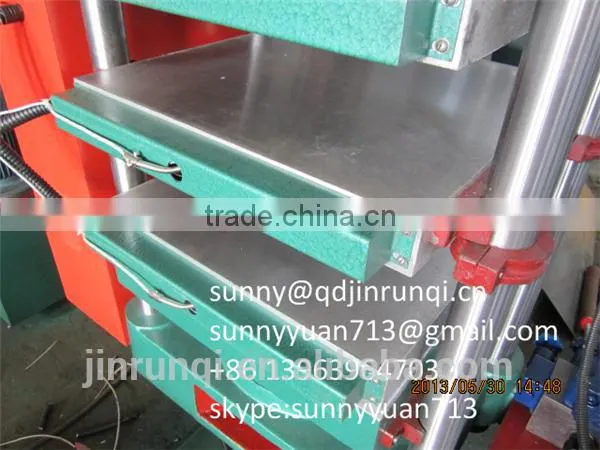

Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment photo-5

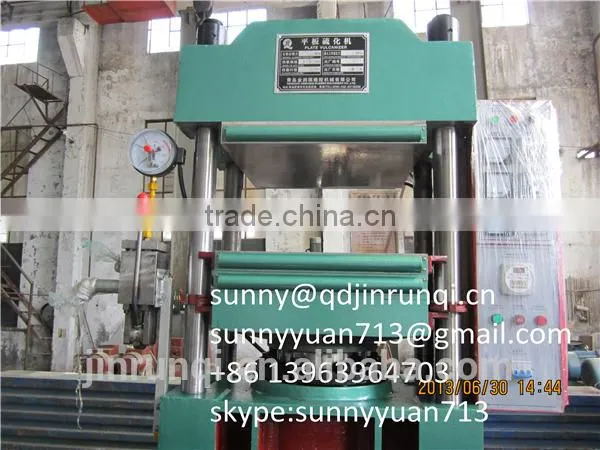

Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment photo-6
US$ 4,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Place of Origin:
Shandong, China
Brand Name:
JINRUNQI
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name JINRUNQI
Model Number XLB
Voltage 2.2 KW
Power(W) 380 V
Dimension(L*W*H) 2550x960x2100 mm
Weight 2000 kg
Certification CE ISO
Warranty 1 year, Warranty
After-sales Service Provided Engineers available to service machinery overseas



Qingdao Jinrunqi Rubber Machinery

Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment





Our Certificate

 Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment









      Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment

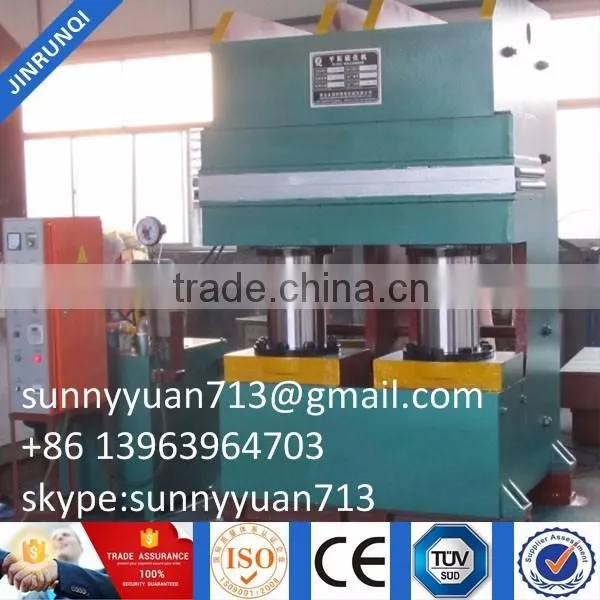

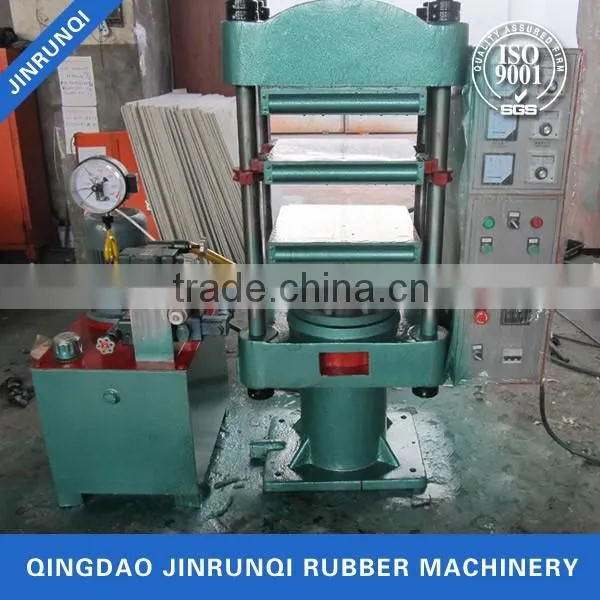

  Plate Vulcanizing Press is the machinery which produce all of kinds of rubber products, and thermosetting plastic like as related specifications aseling products, projected rubber, rubber plate and so on. this kind machinery has three types of frame type, pillar type, and jaw type(for some round rubber products). It is economical, advantage of compact structure, high working pressure, high producing efficiency,. Operation is safe and reliable. Also we can provide all kinds of sizes, types, and operation ways according to the customer’s request.



 Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment

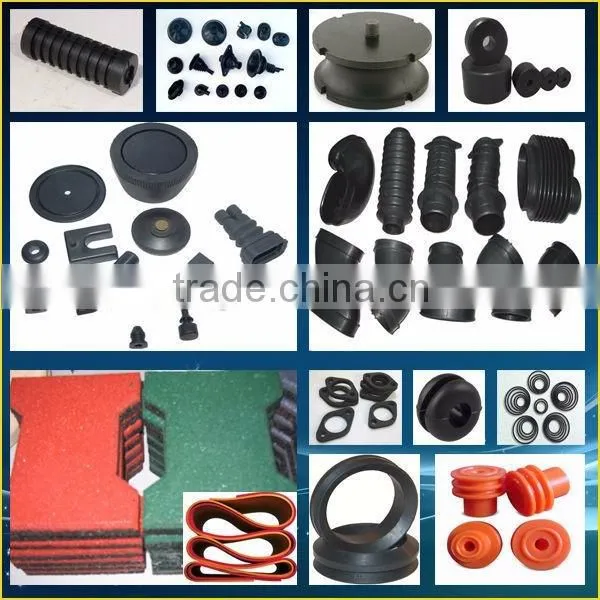

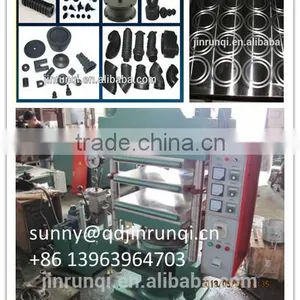

 Plate Vulcanizing Press It is applied to produce O rings , Sealing ring ,Rubber Sheet ,other rubber products if you have the mould.

Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment





Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment



Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment



Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment



 Plate Vulcanizing Press

Type 350*350*2 400*400*2 500*500*2 600*600*2 750*850*2 600*600*2
Nomnal clamp mould force 0.25 0.5 0.8 1.0 1.6 2.0

Piston size

350*350 400*400 500*500 600*600 750*850 600*600
Number of working layer 2 2 2 2 2 2
Piston diameter 150 200 250 300 360 400
Stroke of piston 250 250 250 250 500 300
Piston diameter hot plate 125 125 125 150 250 150
Unit area pressure of hot plate 2.1 3.1 3.2 2.78 2.5 5.6
Power 2.2 2.2 2.2 2.2 3.0 3.0
Overall size(L*W*H) 1500*400*1350 1800*500*1700 1800*550*1600 2000*700*1700 2000*1000*1900 2550*960*2100
Weight 1000 1500 2000 2600 4300 5000
Close mould speed ≥12 ≥12 ≥12 ≥12 ≥12 ≥12
Opent mould speed

≥12 ≥12 ≥12 ≥12 ≥12 ≥12

  Rubber Seals Vulcanizing Machine  Rubber Seals Vulcanizing Machine



Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment





Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment

  Rubber Seals Vulcanizing Machine  Rubber Seals Vulcanizing Machine  Rubber Seals Vulcanizing Machine



Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment



Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment



Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment

  Rubber Seals Vulcanizing Machine  Rubber Seals Vulcanizing Machine

If you interested in our products mentioned above. Kindly welcome to our factory for a visit and let us know by return email.

Xlb-400 * 400 Rubber Seals Vulcanizing Machine Molding Equipment
