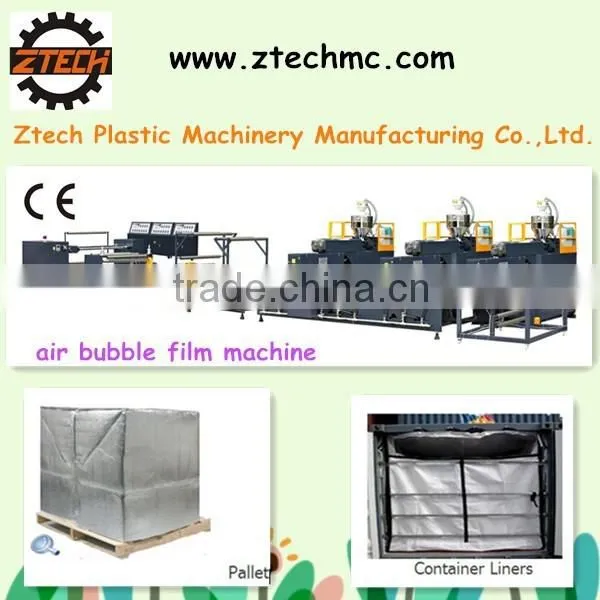

7 Layers Air Bubble Wrap Film Making Equipment High Speed Making Machine (2000mm Width)

7 Layers Air Bubble Wrap Film Making Equipment High Speed Making Machine (2000mm Width) thumbnail-1
7 Layers Air Bubble Wrap Film Making Equipment High Speed Making Machine (2000mm Width) thumbnail-2
7 Layers Air Bubble Wrap Film Making Equipment High Speed Making Machine (2000mm Width) thumbnail-3
7 Layers Air Bubble Wrap Film Making Equipment High Speed Making Machine (2000mm Width) thumbnail-4
7 Layers Air Bubble Wrap Film Making Equipment High Speed Making Machine (2000mm Width) thumbnail-5
7 Layers Air Bubble Wrap Film Making Equipment High Speed Making Machine (2000mm Width) thumbnail-6
7 Layers Air Bubble Wrap Film Making Equipment High Speed Making Machine (2000mm Width) photo-1
7 Layers Air Bubble Wrap Film Making Equipment High Speed Making Machine (2000mm Width) photo-2
7 Layers Air Bubble Wrap Film Making Equipment High Speed Making Machine (2000mm Width) photo-3
7 Layers Air Bubble Wrap Film Making Equipment High Speed Making Machine (2000mm Width) photo-4
7 Layers Air Bubble Wrap Film Making Equipment High Speed Making Machine (2000mm Width) photo-5
7 Layers Air Bubble Wrap Film Making Equipment High Speed Making Machine (2000mm Width) photo-6
US$ 40,000 - 70,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Foshan Ztech Plastic Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
LELIU PORT RONGQI PORT BEIJIAO PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Film
Plastic Processed PE
Screw Design Other, Single-screw, Single-screw
Automatic Grade full automatic
Place of Origin Guangdong, China
Brand Name Ztech
Model Number ZT200-7S
Voltage 380V, 380V, 50HZ, 3 PHASES
Power(W) 163KW
Dimension(L*W*H) 8000*6500*2800mm
Weight 8000KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas



7 layers air bubble wrap film making Equipment high speed making machine (2000mm width)

Ztech Plastic Machinery Manufacturing Co.,Ltd.




7 layers air bubble wrap film making Equipment high speed making machine (2000mm width)





7 layers air bubble wrap film making Equipment high speed making machine (2000mm width)

7 layers air bubble wrap film making Equipment high speed making machine (2000mm width)

 Bubble Sample



7 layers air bubble wrap film making Equipment high speed making machine (2000mm width)





1.Produces two layers(Bubble Layer + PE Layer ) or three layers air bubble film(PE Layer + Bubble Layer + PE Layer ) or five layers air bubble film(PE Layer + Bubble Layer + PE Layer + Bubble Layer + PE Layer )



2.In-line Lamination bubble film with PE coated material (PE coated Aluminum Foil, PE coated Kraft Paper, EPE Foam, PE Film etc.)



7 layers air bubble wrap film making Equipment high speed making machine (2000mm width)7 layers air bubble wrap film making Equipment high speed making machine (2000mm width)7 layers air bubble wrap film making Equipment high speed making machine (2000mm width)

7 layers air bubble wrap film making Equipment high speed making machine (2000mm width)

Raw material

LDPE(MFI: 2.5~3.5) / LLDPE(MFI: 2~3)/ recycled LDPE material

(can be used 100% recycled LDPE material)

Finished Product Width:

(after cutting edge trimmer)

2000mm

(standard width adjustable 1400mm-2000mm)

Bubble Film Thickness:

2 layers: 25g/sm-300g/sm

3 layers: 45g/sm-400g/sm



Line Speed



800m--Max. 1980m/hr

**Maximum speed is for standard bubble size diameter Φ10mm.

**Speed depends on the thickness and various bubble size.

Production Capacity

158kg--Max. 248kg/hr

 (**Output depends on the thickness & width)

Total Power

212kw

Heating Power

122kw

Consumption Power

63kw

Power Supply

380 V, 50 Hz / 3 Phase

Weight

10700kg





Package



7 layers air bubble wrap film making Equipment high speed making machine (2000mm width)7 layers air bubble wrap film making Equipment high speed making machine (2000mm width)

About us



  7 layers air bubble wrap film making Equipment high speed making machine (2000mm width)

7 layers air bubble wrap film making Equipment high speed making machine (2000mm width)

7 layers air bubble wrap film making Equipment high speed making machine (2000mm width)





Ztech Plastic Machinery Manufacturing Co., Ltd. focusing on design, R&D, production, sales and service of high quality air bubble film machines. Ztech locates in Lunjiao Town, Shunde district, Foshan City, Guangdong Province, an industrial town for the manufacture of plastic machinery and also known for its leading-edge research and development town.



The main products of Ztech are that 2 Layers PE Air Bubble Film Machinery, 3 Layers PE Air Bubble Film Machinery, 5 Layers PE Air Bubble Film Lamination Machinery, 7 Layers PE Air Bubble Film Lamination Machinery, kraft bubble envelope machine, air bubble film (PE foam sheet bag making machine) etc.
