Specifications
Pure Sine Wave Frequency Solar Inverter 4kw1. SAA,CE&RoHS and OEM
2. High MPPT accuracy
3. 5 years warranty
4. IP65
2014 Hot Sale Pure Sine Wave Frequency Solar Inverter 4kw
Product Features:
1. Transformerless design, high efficiency (Max. 97.5%, Euro. 96.6%)
2. High MPPT accuracy( >99.9%)
3. Wide DC input range(120-590 Vdc), compatible with different module technologies
4. Easy to wire, install and operate
5. IP 65 design, suitable for indoor and outdoor installation
6. 5 years warranty(10~25 years as option)
7. Multi MPPT channels
Technical Data:
Model |
SP-S-3kw | SP-S-4kw | SP-S-5kw |
| Input (DC) | |||
| Max. DC voltage [V] | 590 | ||
| MPPT DC voltage Range [V] | 120-500 | ||
| Turn off DC voltage [V] | 120 | ||
| Number of MPP Trackers | 2 | ||
| Max. DC Current(A/B)[A] | 18/18 | ||
| DC-Connection | MC4 | ||
| Output (AC) | |||
| Max. AC Power [W] | 3300 | 4400 | 4800 |
| Nominal AC Power [W] | 3000 | 4000 | 4600 |
| Max. AC Current [A] | 14.4 | 19 | 21.0 |
| Nominal AC Current [A] | 13 | 17.4 | 20 |
| Grid voltage Range | According to VDE 0126-1-1, RD1663, ENEL2010,C10/11,G83/1, AS4777 | ||
| Grid Frequency Range | According to VDE 0126-1-1, RD1663, ENEL2010,C10/11,G83/1, AS4777 | ||
| Power Factor | 0.99 (>30% of Full Load) | ||
| THD(AC Output Current ) | <2% | ||
| AC Connector | Plug-in connector | ||
| Power Consumption | |||
| Own Consumption in Operation [W] | 45 | 50 | 50 |
| Power Consumption at Night [W] | 0 | ||
| Power Consumption at Standby [W] | 6 | ||
| Efficiency | |||
| Max. Efficiency (at 360VDC) | 97.5% | 97.6% | 97.6% |
| Euro. Efficiency (at 360VDC) | 96.6% | 97.0% | 97.0% |
| MPPT Efficiency |
99.9% |
||

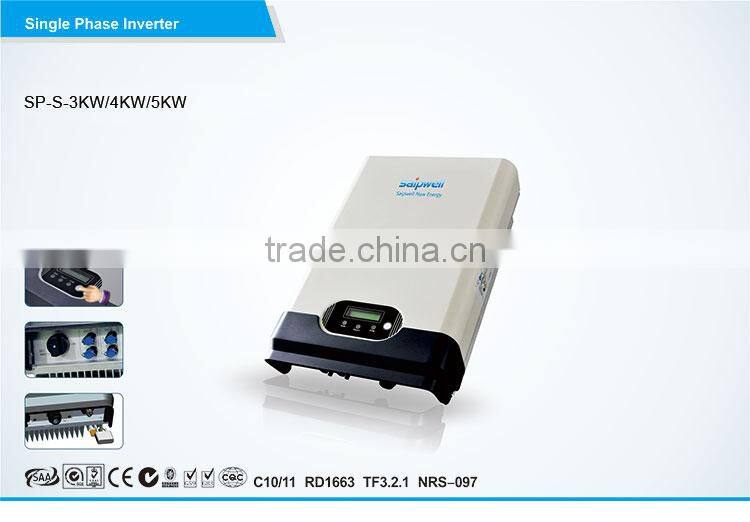

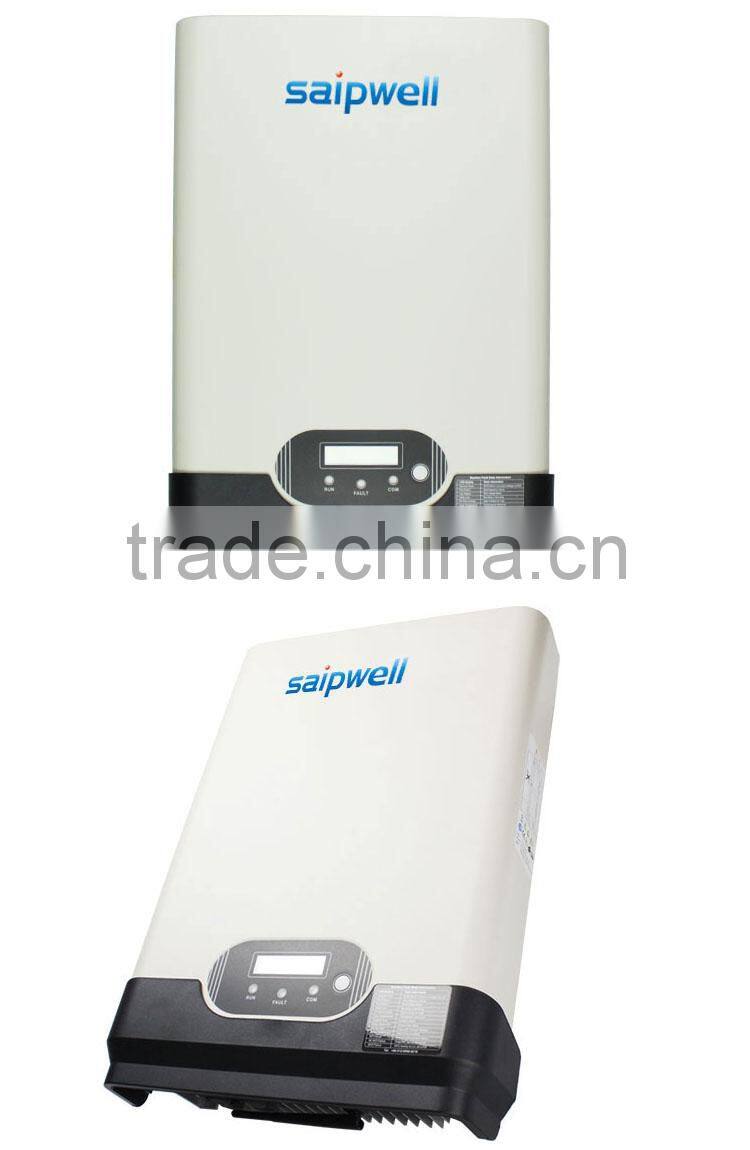

Inverter Showes:
Inverter Block And Monitoring System Diagram :
Inverter Detail Display:

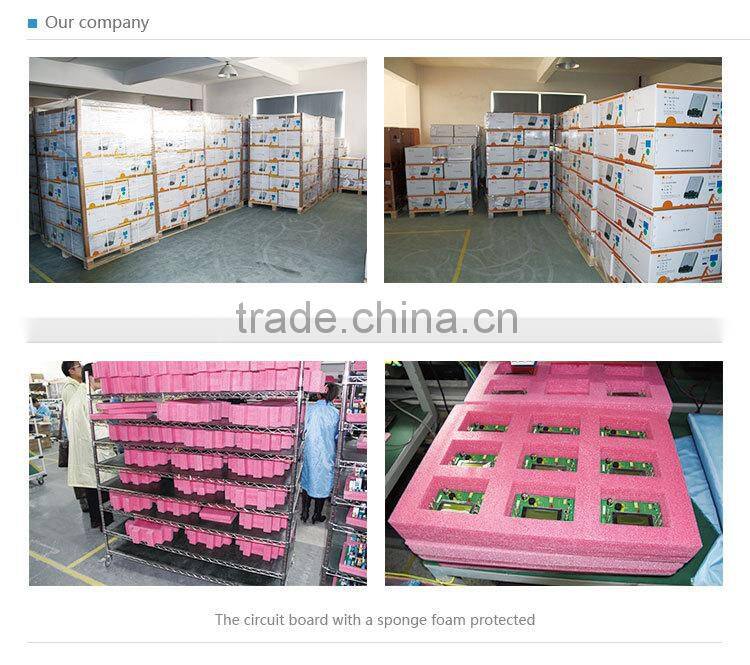

About Our Saip:
Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, production and sales of electric equipments.
Head office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".
We have 5 specialized branches,over 300 specialized cooperative partners.
Saip,an ISO9001 certificated enterprise.
With 20 years of development history, Zhejiang Saip Electric Co., Ltd. has become a modern enterprise integrating the production,sale with research.
Use And Packing :
Certification
For more details, feel free to contact Ms.Snow
Saip Electric Group Company Limited
ADD:Liushi Industrial Zone,Yueqing,Zhejiang,China 325604
Mob: 0086-18067787960
Fax: 0086-577-62760731
QQ: 2775527780
Skype: saip553saip
