Specifications
Single Phase PV On-grid Inverter 2kw1. High MPPT accuracy
2. Easy to wire, install, operate
3. 5 years warranty
4. IP65

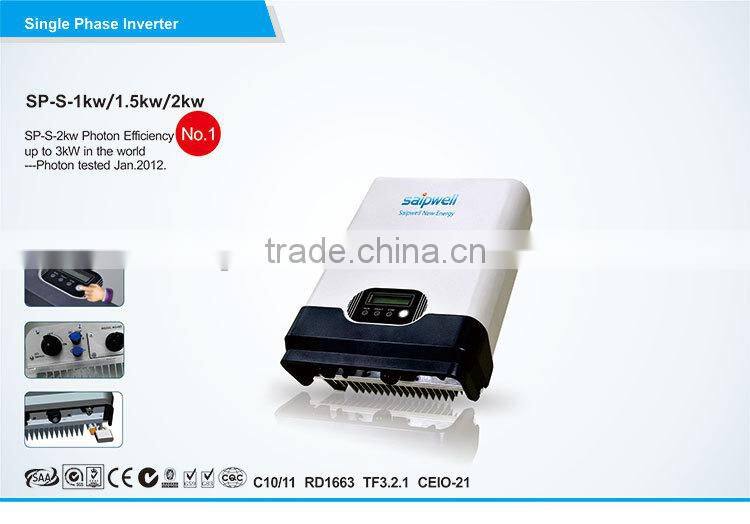

2014 Hot Sale Single Phase PV On-grid Inverter 2kw
Product Features:
1. Transformerless design, high efficiency (Max. 97.5%, Euro. 96.6%)
2. High MPPT accuracy( >99.9%)
3. Wide DC input range(80-500 Vdc), compatible with different module technologies
4. Easy to wire, install and operate
5. IP 65 design, suitable for indoor and outdoor installation
6. 5 years warranty(10~25 years as option)
Technical Data:
Type | SP-S-1kw | SP-S-1.5kw | SP-S-2kw |
Input (DC) |
| ||
Max. DC voltage [V] | 500 | 500 | 500 |
MPPT DC voltage Range [ V] | 80-360 | 120-450 | 120-450 |
Turn off DC voltage [ V] | 80 | 120 | 120 |
Number of MPP Trackers | 1 | 1 | 1 |
Max. DC Current [A ] | 16 | 18 | 18 |
DC-Connection | MC4 | MC4 | MC4 |
Output (AC) |
| ||
Max. AC Power [W] | 1100 | 1650 | 2200 |
Nominal AC Power [W] | 1000 | 1500 | 2000 |
Max. AC Current [A ] | 5.8 | 9.0 | 12.0 |
Nominal AC Current [A ] | 4.3 | 6.5 | 8.5 |
Grid voltage Range | According to VDE 0126-1-1, RD1663, ENEL2010,C10/11,G83/1, AS4777 | ||
Power Factor | 0.99 (>30% of Full Load) | ||
THD AC Output Current(A) | <2% | ||
AC Connector | Plug-in connector | ||
Power Consumption |
| ||
Efficiency |
| ||
Max. Efficiency (at 360VDC) | 97.5% | ||
Euro. Efficiency (at 360VDC) | 96.6% | ||
MPPT Efficiency | 99.9% | ||
Safety and Protection |
| ||
Internal Overvoltage Protection | Integrated | ||
CE- Compliant According to | EN61000-3-2, EN61000-3-3, EN61000-3-12, EN61000-3-11 | ||
Dimensions and Weight |
| ||
Dimensions (W*H*D)[mm] | 330x425x130 | ||
Weight [kg] | 13 | ||
Environmental Limits |
| ||
IP Protection Type | IP 65 according to IEC 60529 | ||
Operating Temperature Range | -20 C to +60°C up to 40°C without derating | ||
Relative Humidity | 0% to 98%, no condensation | ||
Noise Level[DBA] | <40 | ||
General Data |
| ||
Isolation Type | Transformer less | ||
Cooling Concept | Natural Convection | ||
Data Logger |
| ||
Data Communication Interfaces | RS485, Optional (Wi-Fi, GPRS, Ethernet) | ||
Computer Communication | RS232 as Option | ||
Standard Warranty | 5 Years (Optional 10~25 years) | ||
Inverter Detail Display:

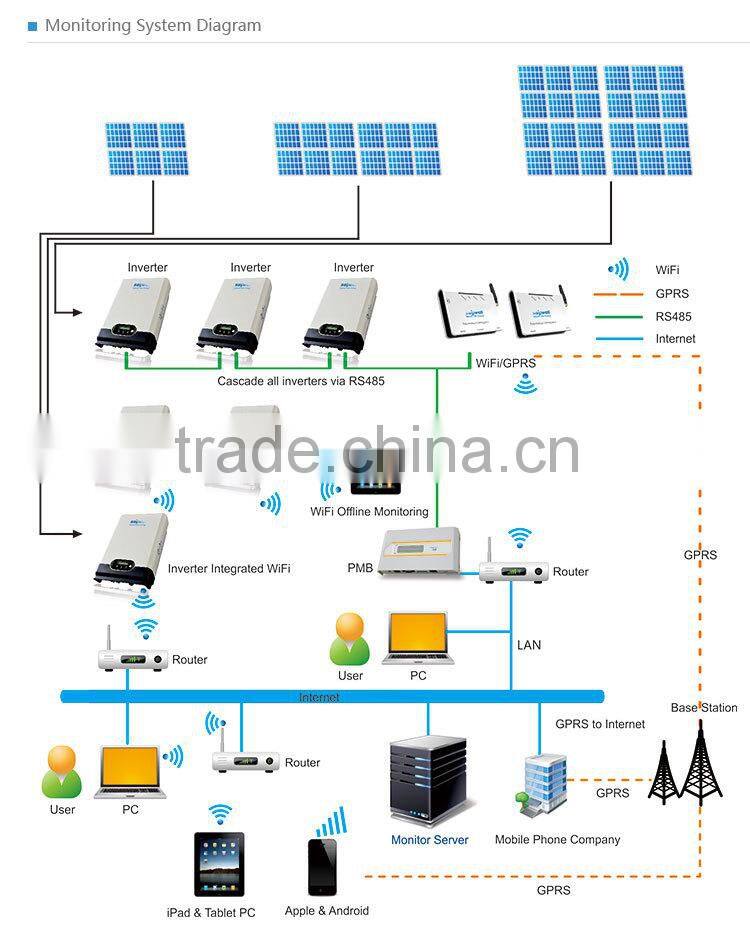

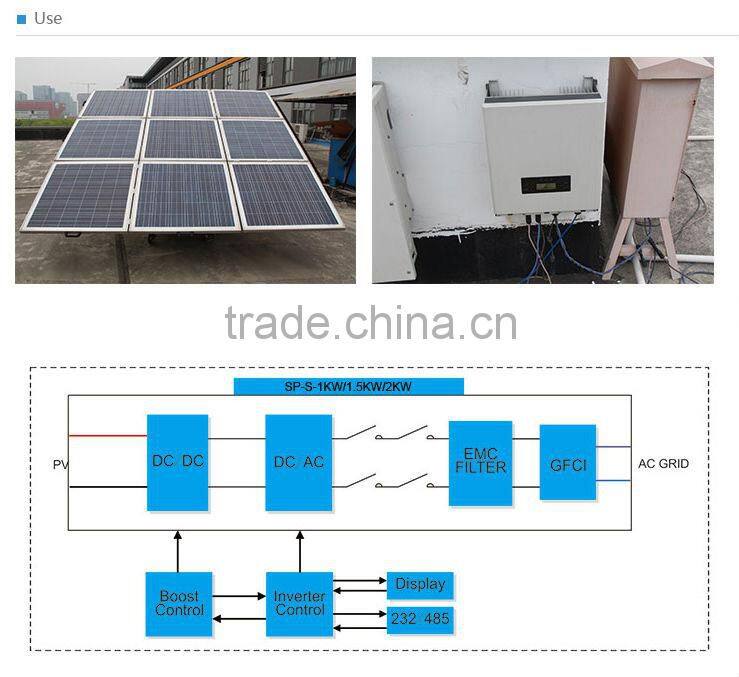

Monitoring System And Use :
About Our Saip:
Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, production and sales of electric equipments.
Head office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".
We have 5 specialized branches,over 300 specialized cooperative partners.
Saip,an ISO9001 certificated enterprise.
With 20 years of development history, Zhejiang Saip Electric Co., Ltd. has become a modern enterprise integrating the production,sale with research.

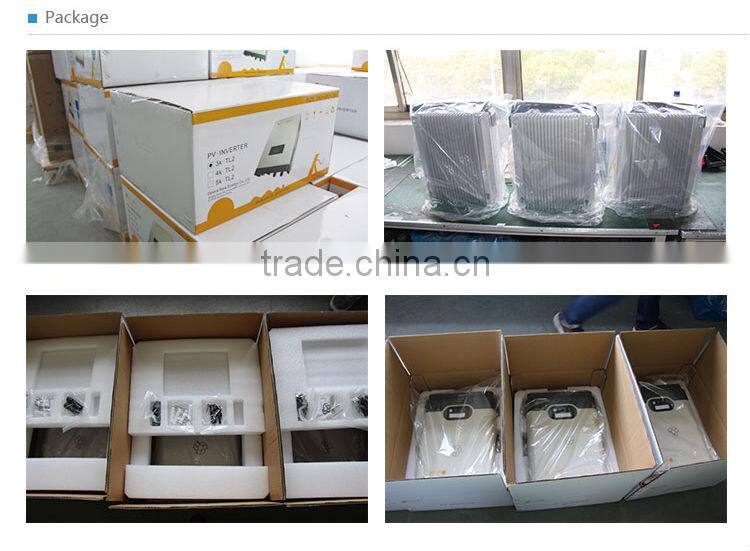

Packing and Shipment:
Carton Packing
Model Nr. | G.W.(kg) | N.W.(kg) | Dim. (W*H*D,mm) |
SP-S-1kw | 16 | 13 | 550*450*260 |
SP-S-1.5kw | 16 | 13 | 550*450*260 |
SP-S-2kw | 16 | 13 | 550*450*260 |
Standard Pallet Packing
Model Nr. | Quantity | Dim. (L*W*H,mm) |
SP-S-1kw | 28 units | 1050*1050*2030 |
SP-S-1.5kw | 28 units | 1050*1050*2030 |
SP-S-2kw | 28 units | 1050*1050*2030 |
Certification:
For more details, feel free to contact Ms.Snow
Saip Electric Group Company Limited
ADD:Liushi Industrial Zone,Yueqing,Zhejiang,China 325604
Mob: 0086-18067787960
Fax: 0086-577-62760731
QQ: 2775527780
Skype: saip553saip
