2014 New Single Phase MPPT 250W Solar Micro Grid Tie Inverter SP-M250

2014 New Single Phase MPPT 250W Solar Micro Grid Tie Inverter SP-M250 thumbnail-1
2014 New Single Phase MPPT 250W Solar Micro Grid Tie Inverter SP-M250 photo-1
US$ 150 - 200 MOQ: 10 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Saip
Model Number:
SP-M250
Contact Supplier Request Quote Chat Now
Yueqing Saip Electric Company Limited
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai Port other main port is available
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Saip
Model Number SP-M250
Output Power 201 - 300W
Output Type Single
Size 534*524*328MM
Weight 1.6KG
Input Voltage 54V
Type DC/AC Inverters
Output Frequency 50/60Hz
Output Current 1.08A

Specifications

250W Solar Micro Grid Tie Inverter
1.94.5% efficiency
2.Max. 25 years warranty
3.Simple design
4.Easy installation



2014 New Single Phase MPPT 250W Solar Micro Grid Tie Inverter SP-M250

 2014 New Single Phase MPPT 250W Solar Micro Grid Tie Inverter SP-M250Product Description



a. Specification

Model

SP-M250

Input Data (DC)

Recommended Input Power

160-300W

Maximum Input DC Voltage

54V

Min./Max.Star Voltage

26V/50V

Peak Power Tracking Range

26V~40V

Operating Range

22V~50V

Maximum DC Short Circuit Current

15A

Maximum Input Current

10A

Output Data (AC)

Maximum Output Power

248W

Nominal Output Current

1.08A

Maximum Output Current

1.11A

Nominal Output Range

Matching Grid Demand

Power Factor

>0.99

Total Harmonic Distortion

<3%

Maximum Units Per Branch

15

Efficiency

Peak Inverter Efficiency

95.50%

CEC Weighted Efficiency

94.5%

Nighttime Power Consumption

120mW

Mechanical Data



Enclosure Environment Rating

IP65

Ambient Temperature

-40°C~+65°C

Operating Temperature Range (internal)

-40°C~+85°C

Dimension (W*H*D)

234mm*163mm*26mm

Weight

1.6KG

Features

Communication

PLCC(Power Line Carrier Communication)

Warranty

15years

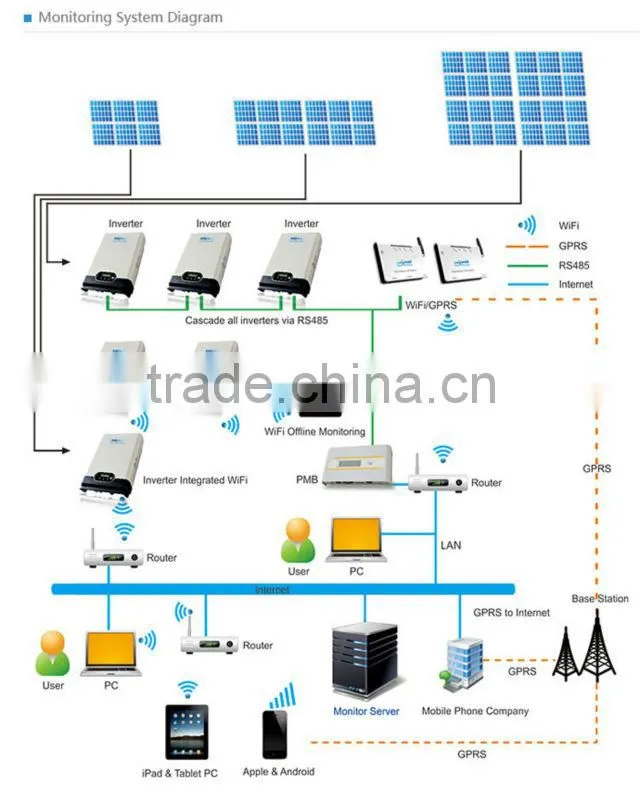

b. Diagram of Monitoring System

2014 New Single Phase MPPT 250W Solar Micro Grid Tie Inverter SP-M250

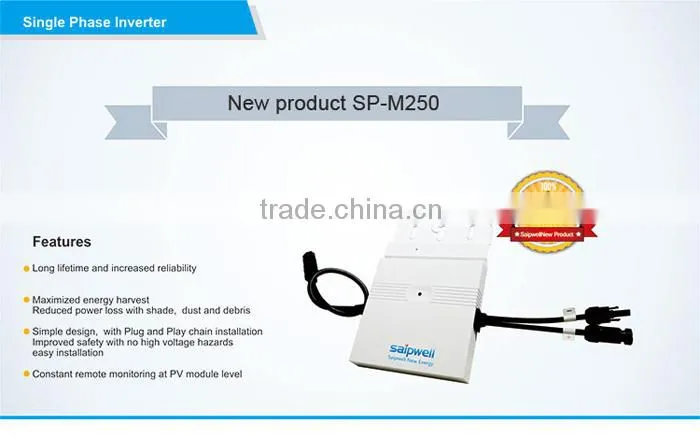

c. Feature

2014 New Single Phase MPPT 250W Solar Micro Grid Tie Inverter SP-M2502014 New Single Phase MPPT 250W Solar Micro Grid Tie Inverter SP-M250

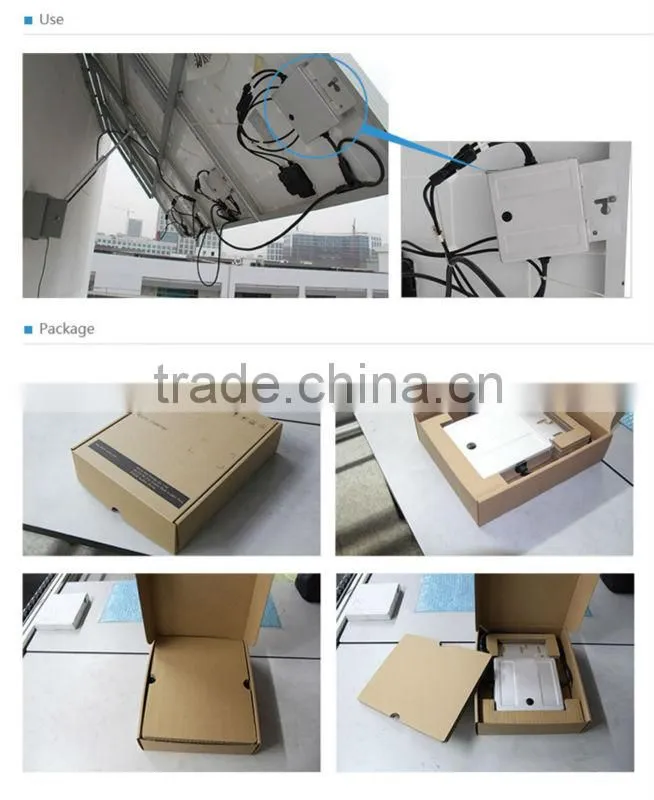

Packaging & Shipping



2014 New Single Phase MPPT 250W Solar Micro Grid Tie Inverter SP-M250


Company Information

2014 New Single Phase MPPT 250W Solar Micro Grid Tie Inverter SP-M250




FAQ

  Q1:What about the TRADE TERM?

  A1:We quote on FOB Ning/Shanghai price for the bulk order, EX-WORK price will be quoted for sample.



  Q2:What is your PAYMENT TERM?

  A2:TT in advance, 30% deposit and 70% balance against copy of BL;

       Western Union and PayPal is also acceptable for urgent sample order.



 Q3:Is it available to print client's logo?

 A3:OEM service can be provided when your quantity is large, as it will takes longer time and charge more just for a very small q'ty.



 Q4:What about the inverter's WARRANTY?

 A4:Standard warranty is 15 years, we can make it longer to 25years as per client's special request, need extra charge.
