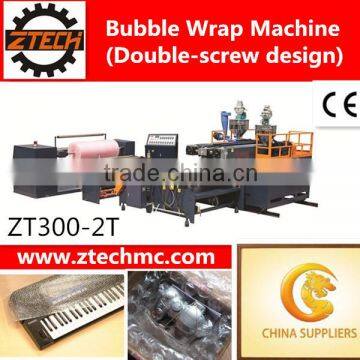

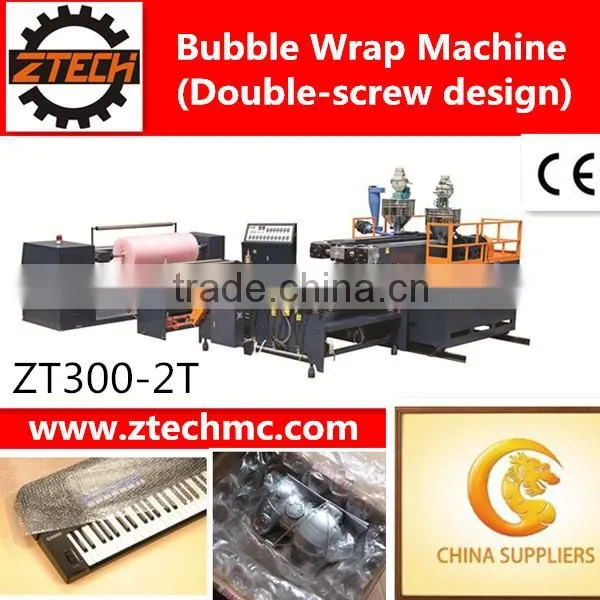

2 Layers Double-screw Design Bubble Wrap Machine(Model: ZT300-2T)

2 Layers Double-screw Design Bubble Wrap Machine(Model: ZT300-2T) thumbnail-1
2 Layers Double-screw Design Bubble Wrap Machine(Model: ZT300-2T) thumbnail-2
2 Layers Double-screw Design Bubble Wrap Machine(Model: ZT300-2T) thumbnail-3
2 Layers Double-screw Design Bubble Wrap Machine(Model: ZT300-2T) thumbnail-4
2 Layers Double-screw Design Bubble Wrap Machine(Model: ZT300-2T) thumbnail-5
2 Layers Double-screw Design Bubble Wrap Machine(Model: ZT300-2T) thumbnail-6
2 Layers Double-screw Design Bubble Wrap Machine(Model: ZT300-2T) photo-1
2 Layers Double-screw Design Bubble Wrap Machine(Model: ZT300-2T) photo-2
2 Layers Double-screw Design Bubble Wrap Machine(Model: ZT300-2T) photo-3
2 Layers Double-screw Design Bubble Wrap Machine(Model: ZT300-2T) photo-4
2 Layers Double-screw Design Bubble Wrap Machine(Model: ZT300-2T) photo-5
2 Layers Double-screw Design Bubble Wrap Machine(Model: ZT300-2T) photo-6
US$ 20,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Foshan Ztech Plastic Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
LELIU PORT RONGQI PORT BEIJIAO PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Film
Plastic Processed PE
Screw Design Double-screw
Automatic Grade Full automatic
Place of Origin Guangdong, China
Brand Name Ztech
Model Number ZT300-2T
Voltage 380V, 50HZ, 3 PHASES
Power(W) 196kw
Dimension(L*W*H) 750cm x 650cm x 280cm
Weight 10200kg
Certification CE certificate
After-sales Service Provided Overseas service center available

2 layers Double-screw design bubble wrap machine(Model: ZT300-2T)







2 layers Double-screw design bubble wrap machine

(Model: ZT300-2T)



2 layers Double-screw design bubble wrap machine(Model: ZT300-2T)



Product Description

Specification

2 layers Double-screw design bubble wrap machine(Model: ZT300-2T)



Ztech bubble wrap machine,has good shock absorption, sealability, corrosion resistance, etc.



The machine has following features:



1) PE air bubble film (also called as PE air cushion film) produced by this machine is a
generally used packing material
2) Good shock absorption, impact resistance, sealability, corrosion resistance,
transparency, etc
3) Widely used in the numerous fields of electronic products, precision instrument,
daily necessities, glass, pottery, electrical household appliances, furniture,
hardware, toys, etc.



2 layers Double-screw design bubble wrap machine(Model: ZT300-2T)



This  bubble wrap machine  uses LDPE,LLDPE granule material to produce air bubbe film, which widely used as post parcel packing,precise instruments packing funiture packing etc.



This machine is composed of extruder, air bubble forming device, widing device,cabinet control system.



2 layers Double-screw design bubble wrap machine(Model: ZT300-2T)



Model ZT-1000mm ZT-2000mm ZT-2500mm ZT-3000mm
Screw Diameter Φ55mm/Φ55mm Φ75mm/Φ75mm Φ80mm/Φ80mm Φ90mm/Φ90mm
Finished film width 1000mm 2000mm 2500mm 3000mm
Capacity/output 130kg/hor 160kg/hor 170kg/hor 220kg/hor
Main Motor Power 11kw 22kw 22kw 30kw
Total Power 82kw 150kw 160kw 196kw
Screw L/D 30:1 30:1 30:1 30:1
Termo Control Zone 16 16 18 18
Weight 6000kg 8800kg 9900kg 10200kg
Power 380V,3Ph,50Hz 380V,3Ph,50Hz 380V,3Ph,50Hz 380V,3Ph,50Hz
