2012 Digital Laser Distance Meter

Name: 2012 Digital Laser Distance Meter
Brand: SAIP
SKU: 129502535

US$ 0.1 - 0.2 MOQ: 10 Sets

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

SAIP

Model Number:

Yueqing Saip Electric Company Limited

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name SAIP

Model Number GM

Size 50*28*128mm

Measurement Accuracy ±1.5mm (±0.06inch)

Measurement Range 0.1m~40m (4in ~131ft)

Specifications

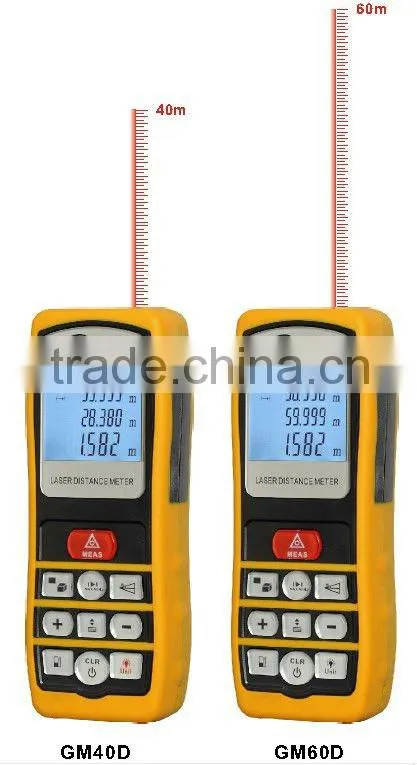

Measurement Range:GM40D 0.1m~40m (4in ~131ft)
GM60D 0.1m~60m (4in ~197 ft)
Accuracy:+/-1.5mm (+/-0.06inch)
Photoelectric

Features

Wide measuring range of up to 40m
Automatic calculation of area and volume
Instant measurement of distance, area & volume with one-button operation
2 or 3 Indirect measurements by Pythagorean Theorem
High accuracy
Continuous measurement
Min/Max distance tracking
Easy addition/subtraction of measurement
Front or rear edge reference
Selectable meter(m), inch(in) and feet (ft)
Easy targeting with bright laser pointer
Large LCD with backlight and multi-line display
20 data records
Reduce estimation errors, saving time and money
Auto correction and error report technology
Battery Status Indication
Rated to IP54 - Splash proof and dust proof
Auto / manual power off function
Easy targeting with bright laser
Multifunction with intelligent calculation
Designed for indoor and outdoor use
Compact & handy
With CE, ROHS, FCC, LVD for Laser (60825-1-2007), LVD (EN 61010-1-2001) International Standards

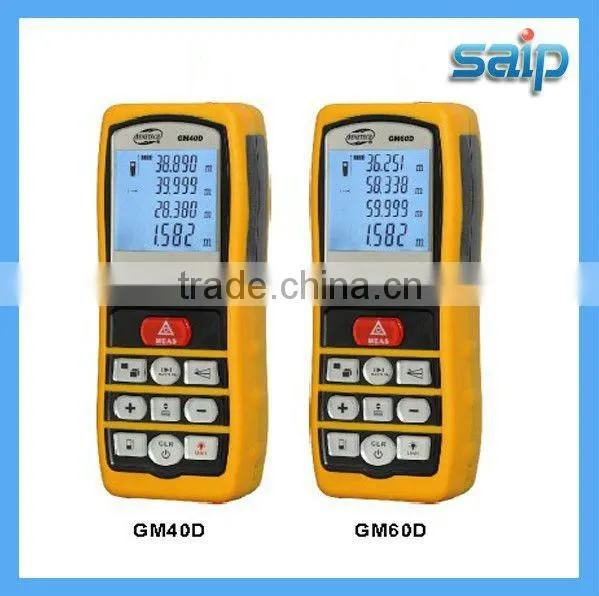

Model	GM40D	GM60D
Specifications & Functions
Measurement Range	0.1m~40m (4in ~131ft)	0.1m~60m (4in ~197 ft)
Accuracy	±1.5mm (±0.06inch)
Measuring units	m, in, ft, m², ft², m³, ft³
Work principal	Photoelectric (not shake while measuring)
Measurement Speed	3time/s
Waterproof & Dustproof	IP54
History measurement record	20 records
Laser type	635nm, <1mW, Class II
Battery Life	>5000 times
Key Life	>1 million times
Area, Volume Calculations	Yes.
Indirect measurement using Pythagoras	Yes. Support 2, 3 indirect measurements
Addition/Subtraction	Yes
Continuous Measurement	Yes
Min/Max Distance Tracking	Yes
Display illumination and multi-line display.	Yes. Max 4 displays
Datum Option	Yes. Can choose Front edge or end piece edge as datum
Buzzer indication	Yes
Backlight Display	Yes. White, can auto switch off
Auto Bias Technology	Yes. Support for external calibration
Error indication	Yes. Display error code
Data Hold	Yes. Automatic
Data Clear	Yes
Battery indication	Yes. High, mid, low
laser Auto. switch-off	Yes. 30s without any operation
Auto instrument switch-off	Yes. 3minutes without any operation
CERTIFICATE	CE/ROHS/FCC/LVD for Laser (60825-1-2007), LVD (EN 61010-1-2001)
Warranty	12months
GENERAL CHARACTERISTICS
Battery Supply	2pcs 1.5V AAA battery
Product Weight	131.2g (Including battery)
Dimension	5028128mm
Packing Method	Gift box packing
Standard quantity per Outer Carton	20
Dimension for Standard Outer Carton	38.730.241CM
Weight for Stander Outer Carton	7.0KG
