Compact high-performance industrial electric fan heater CR 130

standard export packing

Specifications

Compact high-performance industrial electric fan heater CR 130
1 CE certification
2 OEM sevice
3 Energy saving
4 Compact

Compact high-performance industrial electric fan heater     CR 130



Specifications

  1.Compact design

  2.Double insulated

  3.Integrated thermostat of hygrostat

  4.Optional clip or screw fixing



The compact high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric / electronic components. The plastic enclosure provides double insulation and acts as protection against contact. The fan heater is available with integrated thermostat or pre-set hygrostat for temperature or humidity control.The CR 130 was designed as a stationary unit for wall fixing. For fixing on the bottom of the enclosure the fan heater CR 130 is recommended.



Technical Data:

Heating element	high perfprmance cartridge
Temperature safety cut-out	to protect against overheating in case of fan failure, automatic reset
Heater body	extruded aluminium profile
Axial fan, ball baring	air flow 160 m³/h, free flow
	service life 50,000h at 25°C(77°F)
Connection	2-pole max. 2.5mm², clamping screw with strain relief,
	torque 0.8Nm max.
Casing	plastic according to UL94 V-0, black
Mounting	screw fixing ( M5 )
Fitting position	horizontal

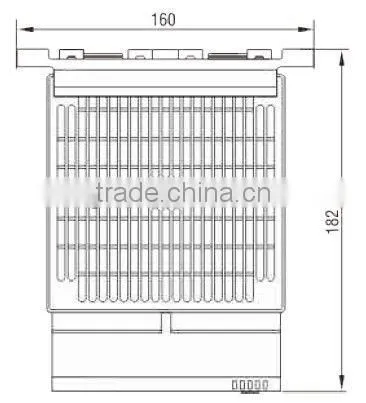

Dimensions	182x160x99mm
Weight	approx. 1.4kg
Operating/storage temperature	-45 to +70°C (-49 to +158°F)
Protection type/Production class	IP20 / II (double insulated)
Note	other heating capacities from 200W up available on request

  *Operating temperature of heater with integrated hygrostat: 0 to +60°C (+32 +140°C)



Art. No.	Model	Operating voltage	Heating capacity	Setting range
03051.0-00	Fan heater with thermostat	230VAC, 50/60Hz	950W	0 to +60°C
03051.0-02	Fan heater with hygrostat	230VAC, 50/60Hz	950W	65% RH,factory-set
03059.9-00	Fan heater without thermostat	120VAC, 50/60Hz	950W	+32 to +140°C

*according to UL499 in combination with UL508A
