Specifications
2014 high quality 48VDC industrial fan heater 04640.2-001 CE certification
2 OEM sevice
3 Energy saving
4 Compact
2014 high quality 48VDC industrial fan heater 04640.2-00
Industrial fan heater Specifications
1 Compact Design
2.Clip fixing
3.Long service life
4.Temperature safety cut-out
5.PTC
Compact fan heater prevents formation of condensation. The integrated high performance axial fan provides forced air circulation and so guarantees an even temperature in enclosures. With internal terminal connector
Heating element |
resistance heater |
Temperature safety cut-out |
to protect against overheating in case of fan failure |
Heater body |
anodised extruded aluminium profile |
Surface temperature |
max. 75°C (400W) |
Axial fan, ball bearing |
Airflow, free flow |
AC: 45m³/h (50HZ) or 54m³/h (60Hz) |
|
DC: 54m³/h |
|
service life 50 000h at 25°C (77°F) |
|
Connection |
internal connection terminal 1.5mm² with clamping torque 0.8Nm max. |
Connection casing |
plastic according to UL94 V-0,black |
Mounting |
clip for 35mm DIN rail, EN 50022 |
Fitting position |
vertical |
Operating/Storage temperature |
-45 to +70 °C (-49 to +158 °F) |
Protection type/Protection class |
IP20 / I (earthed) |

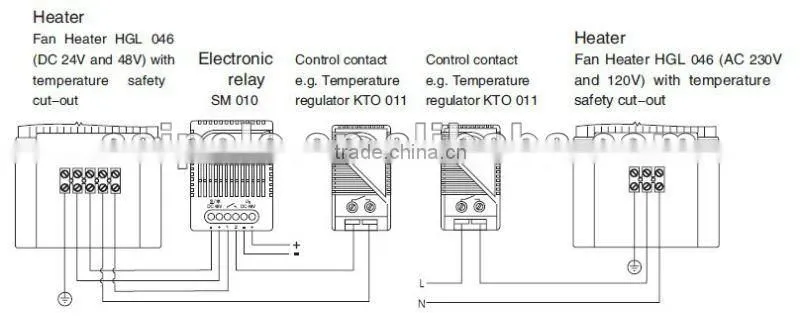

Note: In the case of 24VDC and 48VDC the fan heater has to be switched via a relay. For this purpose we recommend our electronic relay SM 010 (Art. No. 01000.0-00 and 01001.0-00).
Art. No. |
Operating voltage |
Heating capacity |

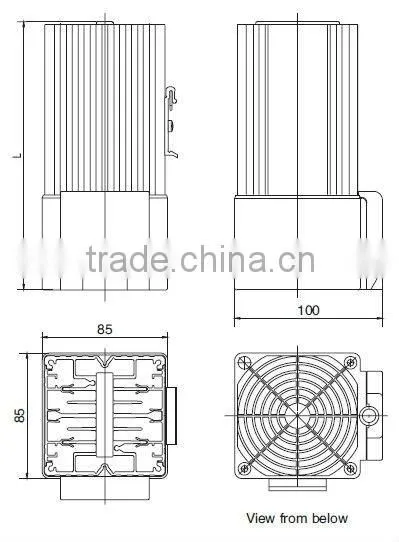

Length (L) |
Weight (approx.) |
|
04640.0-00 |
230VAC, 50/60Hz |
250W |
182mm |
1.10kg |
VDE + UL File No. E150057 |
04641.0-00 |
230VAC, 50/60Hz |
400W |
222mm |
1.40kg |
VDE + UL File No. E150057 |
04640.9-00 |
120VAC, 50/60Hz |
250W |
182mm |
1.10kg |
VDE + UL File No. E150057 |
04641.9-00 |
120VAC, 50/60Hz |
400W |
222mm |
1.40kg |
VDE + UL File No. E150057 |
04640.1-00 |
24VDC |
250W |
182mm |
1.10kg |
- |
04640.2-00 |
48VDC |
250W |
182mm |
1.10kg |
- |
04641.2-00 |
48VDC |
400W |
222mm |
1.40kg |
- |
Industrial fan heater Technical Data:
Industrial fan heater Product Detail
