Home > Products > Analog Servo > K-power servo MM1300 58g/14.5kg/0.13s
K-power servo MM1300 58g/14.5kg/0.13s
Negotiable
/ Piece
100 Pieces(Min.Order)
- 500000 Piece / Pieces per Month
- Shenzhen Guangzhou Hongkong
- Credit Card
You May Like
Product Details
| Use | Other, Vehicles & Remote Control Toys | Place of Origin | Guangdong, China | |
| Brand Name | K-power | Model Number | MM1300 |
Product Description
Specifications

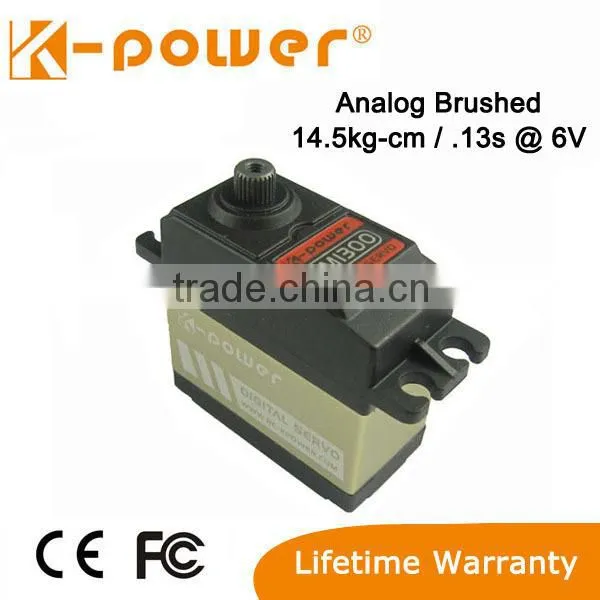

K-power servo MM1300 58g/14.5kg/0.13sAnalog Servo with Metal Gear
K-power servo MM1300 58g/14.5kg/0.13s
Feature
| The aluminum case design not only looks good but also allows for lower operating temperatures. |
| Metal gears forms a solid framework for precise control and operation. |
| Suitable for use in cars, robots and retract landing gear. |
Parameter
| Model Type: | Analog Servo MM1300 |
| Motor Type: | Brushed |
| Case material: | Aluminum Mid Case |
| Gear material: | Metal |
| Bearing Type: | 2BB |
| Weight: | 58g / 2oz |
| Dimension: | 40*20*37.5mm³ / 1.6*0.8*1.5in³ |
| Operation Voltage: | 4.8-6V |
| Torque: | 13.2kg-cm/4.8V; 14.5kg-cm/6.0V |
| 182oz-in/4.8V; 200oz-in/6.0V | |
| Speed: | 0.15sec/60°/4.8V; 0.13sec/60°/6.0V |
| Pulse Width: | 1000-1500 |
| Dead band width: | 4μs |
| Interface Type: | JR / FT / JST1.5 / JST2.0 / Other |
| Operating Temperature: | -20 to 60 centigrade |
| Splining: | 25T |
| Wire Length: | Based on your requirement |
| Waterproof: | Yes |
| Certification: | CE & FCC |
| Application: | RC Car, Robot and Retract Landing Gear |
| Service: | Lifetime Warranty. Customized and OEM are available. |
| If you have any other requirement, pls feel free to tell us. Thanks. |
