K-power servo MM0120 14g/2.3kg/0.11s
Negotiable
/ Piece
100 Pieces(Min.Order)
- 500000 Piece / Pieces per Month
- Shenzhen Guangzhou Hongkong
- Credit Card
You May Like
Product Details
| Use | Other, Vehicles & Remote Control Toys | Place of Origin | Guangdong, China | |
| Brand Name | K-power | Model Number | MM0120 |
Product Description
Specifications

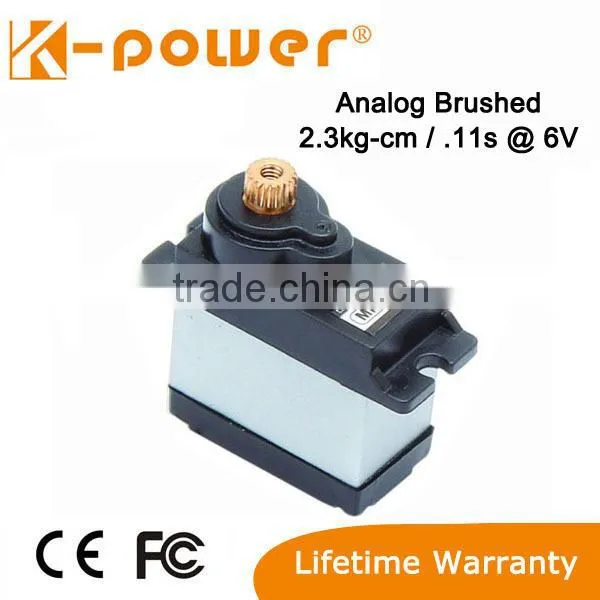

K-power servo MM0120 14g/2.3kg/0.11sMini Analog Servo with Metal Gear
K-power servo MM0120 14g/2.3kg/0.11s
Feature
| Metal gears forms a solid framework for precise control and operation. |
| Light weight construction means less power consumption. |
Parameter
| Model Type: | Analog Servo MM0120 |
| Motor Type: | Brushed |
| Case material: | Aluminum Mid Case |
| Gear material: | Metal |
| Bearing Type: | Top BB |
| Weight: | 14g / 0.5oz |
| Dimension: | 22.8*12.3*22mm³ / 0.9*0.5*0.9in³ |
| Operation Voltage: | 4.8-6V |
| Torque: | 1.9kg-cm/4.8V; 2.3kg-cm/6.0V |
| 26oz-in/4.8V; 32oz-in/6.0V | |
| Speed: | 0.12sec/60°/4.8V; 0.11sec/60°/6.0V |
| Pulse Width: | 1000-1500 |
| Dead band width: | 4μs |
| Interface Type: | JR / FT / JST1.5 / JST2.0 / Other |
| Operating Temperature: | -20 to 60 centigrade |
| Splining: | 20T |
| Wire Length: | Based on your requirement |
| Waterproof: | No |
| Certification: | CE & FCC |
| Application: | RC Airplane and Helicopter |
| Service: | Lifetime Warranty. Customized and OEM are available. |
| If you have any other requirement, pls feel free to tell us. Thanks. |
