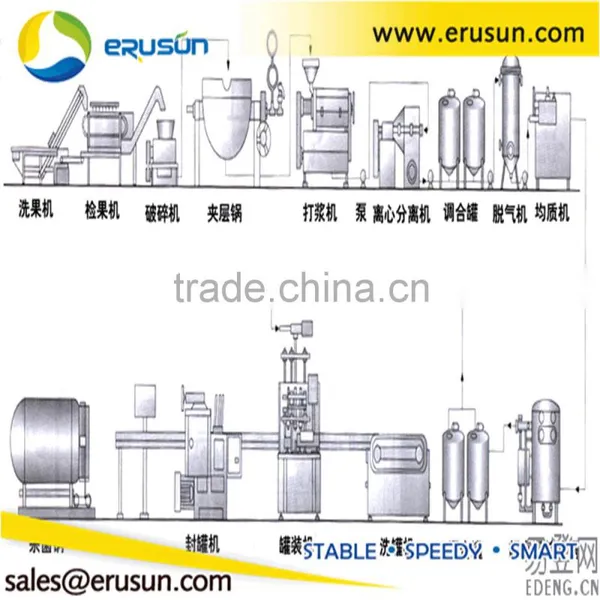

Complete beverage filling machine / fruit juice production line
- 200 Set / Sets per Month
- shanghai
- T/T Credit Card
- Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
- PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
- Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
- Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
- Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
- high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
Condition: | New | Application: | Beverage | Packaging Type: | Bottles |
Packaging Material: | Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | Customized | Power: | 3-15kw | Place of Origin: | Jiangsu, China |
Brand Name: | ERUSUN | Model Number: | RHFC | Dimension(L*W*H): | 2300*2000*2300 |
Weight: | 3000-11000KG | Certification: | ISO CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1,The air conveyor is directly connected with bottle-in star wheel. The bottle is transferred by neck holding.
2,High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.
3,By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
4,Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
5,The high speed line is of ring type pressure bearing hydraulic cylinder.

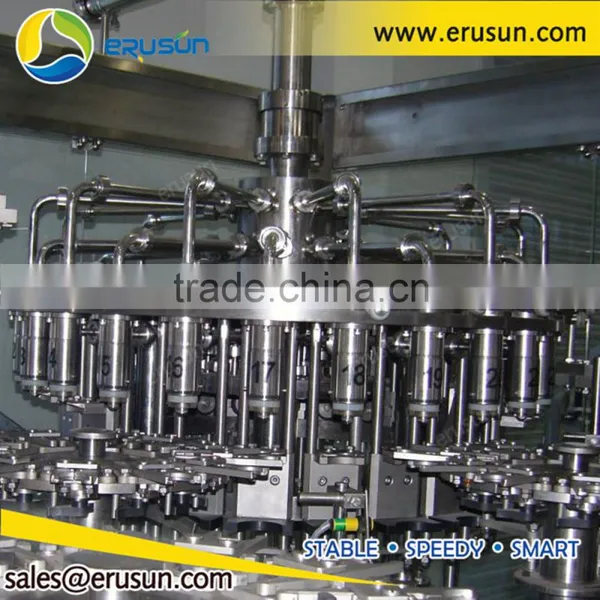

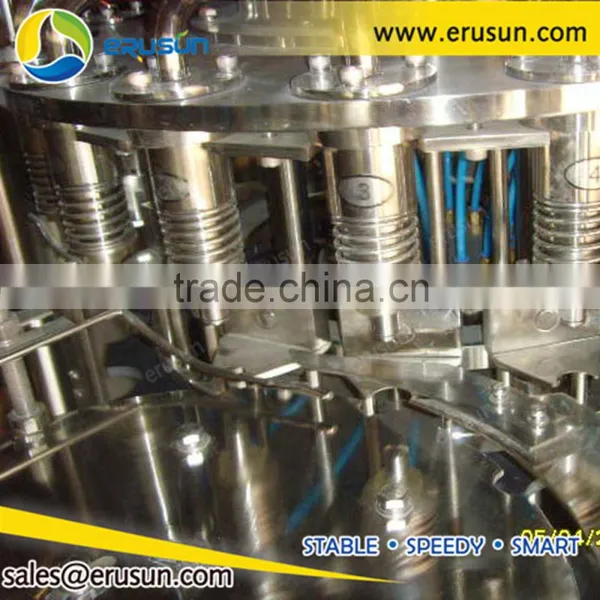

6,High speed and large flow filling valve assures the high filling speed and exact fluid level.
7,Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
8,The bottle-out star wheel is of screw down shape. When bottle size is changed, there is no need to adjust the transferring chain's height.
Product applied for: juice, tea beverage, functional beverage, etc.
Suitable for: PET bottles with all volumes and shapes

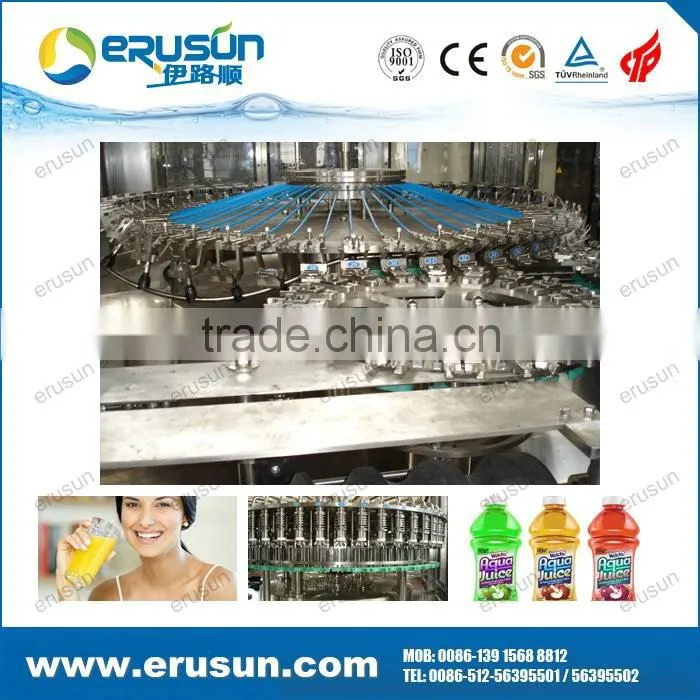

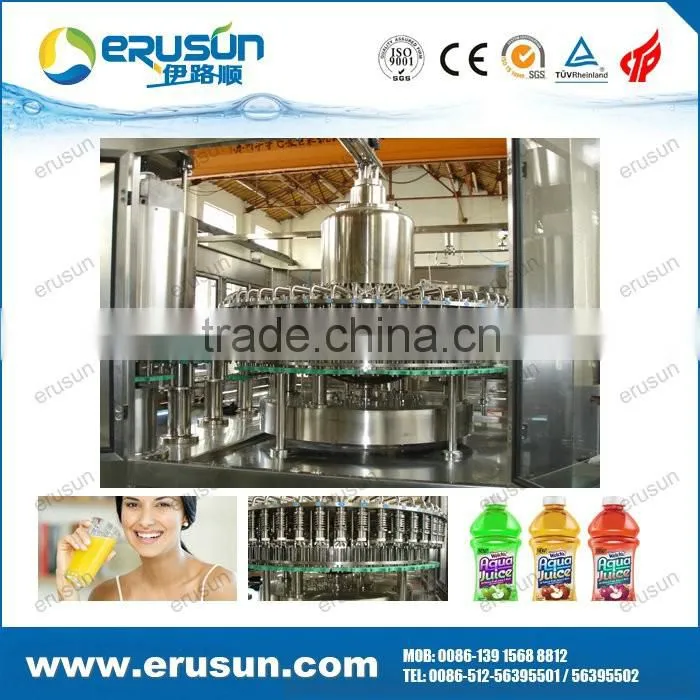

Filling system: hot filling
Production capacity: 2000-25000BPH

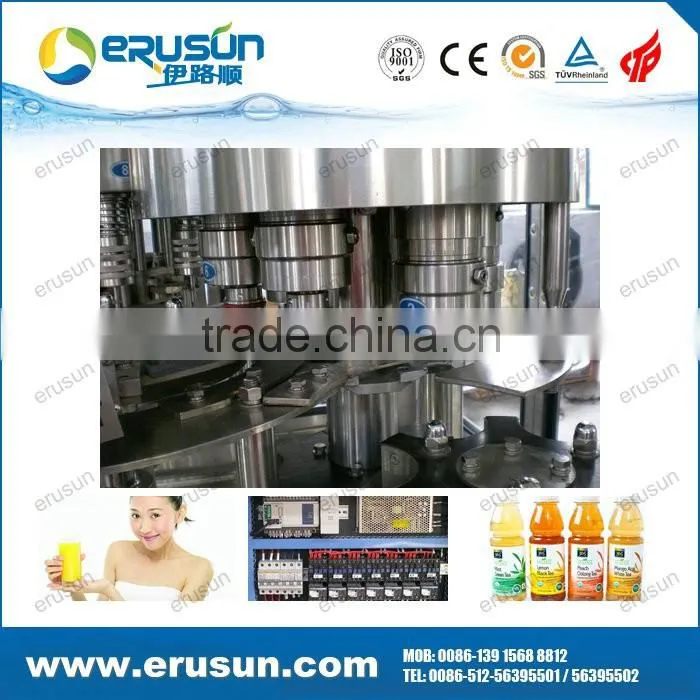

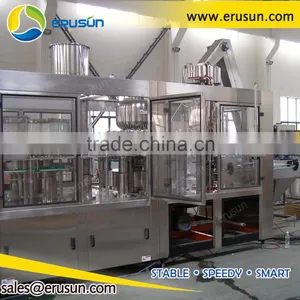

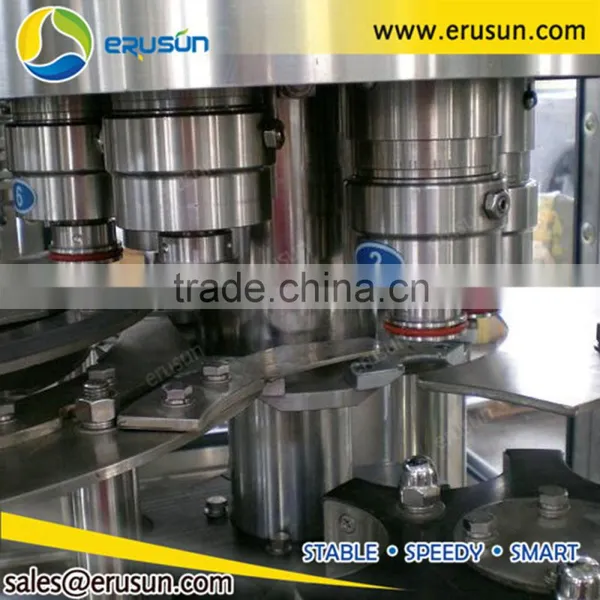

3-in-1 monoblock is composed of rinser, filler, capper, frame, sealing window, main motor and transferring system, cap unscramblerr and electric control system etc.
The overturning device of the rinser is mainly composed of water distributor, bottle clamp, up turnplate, guide rail, protection cover, spraying device, defrosting tray.
Electronic control system part
The electronic components like PLC and transducer are from Mitsubishi, Siemens, Omron, etc., The pneumatic devices are also from international famous brand.
Main electric brand
Touch screen: Weinview or Siemens
PLC program controller: Mitsubishi or Siemens
Inverter: Mitsubishi or Siemens
Photoelectrical controller: Omron or Autonics
Proximity switch: Omron
Other electrical components: Schneider
Pneumatic component: Airtac or SMC or Festo
Water pump: CNP or Grundfos
Main motor: SL or ABB or SEW
Bearing: Harbin or Igus
Technical Parameter
Model | RHFC16/12/6 | RHFC18/18/6 | RHFC24/24/8 | RHFC32/32/10 | RHFC40/40/12 | RHFC50/50/15 | RHFC60/60/15 | RHFC72/72/18 | |
Rinsing Head | 16 | 18 | 24 | 32 | 40 | 50 | 60 | 72 | |
Filling Head | 12 | 18 | 24 | 32 | 40 | 50 | 60 | 72 | |
Capping Head | 6 | 6 | 8 | 10 | 12 | 15 | 15 | 18 | |
Capacity (500ml) | 2000BPH | 5000BPH | 8000BPH | 12000BPH | 15000BPH | 18000BPH | 21000BPH | 25000BPH | |
Pressure of air source | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | |
Air consumption | 0.25M3/min | 0.8M3/min | 0.8M3/min | 0.8M3/min | 0.8M3/min | 1M3/min | 1M3/min | 1.2M3/min | |
Pressure of rinse water | 0.2~0.25MPa | 0.2~0.25MPa | 0.2~0.25MPa | 0.2~0.25MPa | 0.2~0.25MPa | 0.2~0.25MPa | 0.2~0.25MPa | 0.2~0.25MPa | |
Consumption of rinsing water | 1t/hour | 1.2t/hour | 1.2t/hour | 2t/hour | 2t/hour | 3t/hour | 4t/hour | 5t/hour | |
Filling method | Hot Filling | ||||||||
Suitable bottle size | 300ml-1500ml D:50-90mm H:150-320mm | 300ml-1500ml D:50-90mm H:150-320mm | 300ml-2000ml D:50-115mm H:150-320mm | 300ml-2000ml D:50-115mm H:150-320mm | 300ml-2500ml D:50-120mm H:150-320mm | 300ml-2500ml D:50-120mm H:150-320mm | 300ml-2500ml D:50-120mm H:150-320mm | 300ml-2500ml D:50-120mm H:150-320mm | |
Power | 3KW | 3.5KW | 4.5KW | 6KW | 6.5KW | 8KW | 12KW | 15KW | |
Weight | 3000KG | 4000KG | 5000KG | 6000KG | 7000KG | 8500KG | 9500KG | 11000KG | |
Packing Size (L*W*H)(mm) | 2200×1800×2300 | 2300×2000×2300 | 3000×2200×2800 | 4000×2600×2800 | 4700×2950×2800 | 5100×4800×3000 | 6200×4950×3000 | 7000×5500×3000 |
