Home > Products > Refrigerator Condensor Fan > YJ80 Series Motor/ventilation Fan Motor

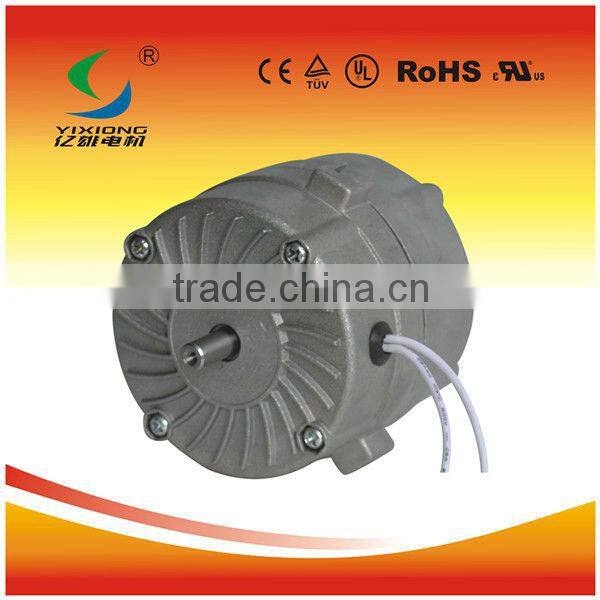

YJ80 Series Motor/ventilation Fan Motor
- Ningbo or Shanghai
- T/T
You May Like
-
YJ82 Series Motor/ice Chest Motor/icebox Motor/condensing Plant Motor
-
100-240V/YJ82 Asynchronous Motor/single Phase Asynchronous Motor/fan Motor/motor
-
YJ80 Series Motor
-
100-240V/YJ82 Icebox Motor
-
100-240V/YJ80 Series Motor/ventilation Fan Motor
-
100-240V/YJ82 Asynchronous Motor/single Phase Asynchronous Motor/fan Motor/motor
Product Details
| Place of Origin | Zhejiang, China | Brand Name | yixiong | |
| Model Number | YJ80-xx |
Product Description
FIGURE:
Model | Voltage | Frequency | Current | Power | Speed | Class | Rotation |
YJ80-13 | 110-240VAC | 50-60Hz | 0.35A | 36.0W | 1400RPM | E/B/F | CW/CCW |
YJ80-16 | 110-240VAC | 50-60Hz | 0.42A | 42.0W | 1300RPM | E/B/F | CW/CCW |
YJ80-19 | 110-240VAC | 50-60Hz | 0.48A | 48.0W | 1550RPM | E/B/F | CW/CCW |
YJ80-25 | 110-240VAC | 50-60Hz | 0.56A | 54.0W | 1350RPM | E/B/F | CW/CCW |
YJ80-30 | 110-240VAC | 50-60Hz | 0.65A | 65.0W | 1400RPM | E/B/F | CW/CCW |
YJ80-40 | 110-240VAC | 50-60Hz | 0.75A | 78.0W | 1300RPM | E/B/F | CW/CCW |
Motor size:
1. Stator diameter: 82 mm
2. Shaft diameter: 6/7/8 mm
3. Shaft length: As your request
4. Lead wire: 2*300mm, also can be made according to your demands
5. Number of pole: 4 pole
6. Rotation: CW/CCW
Certificate:
Rohs
Application:
1. This fan motor mainly be used in Refrigerator, Ice chest, Condensing Plant etc.,
2. It is safty and reliable, low noise, characteristics hard, good starting, long life, etc
3. It could be designed and produced as your request..
Delivery terms:
1.T/T in advance will be our popular payment terms.
2.We'd like to send you some samples for your close for your close inspecting first.
3.We have detailed specifications. If you are interested in it, please email me or talk me on skype.
Drawing:
