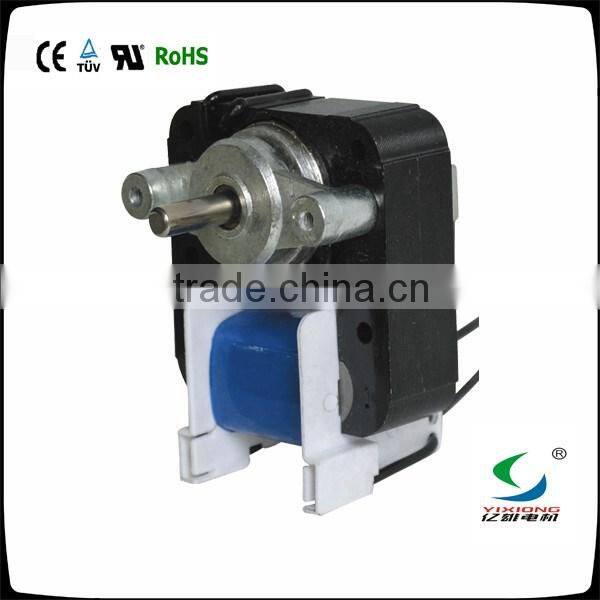

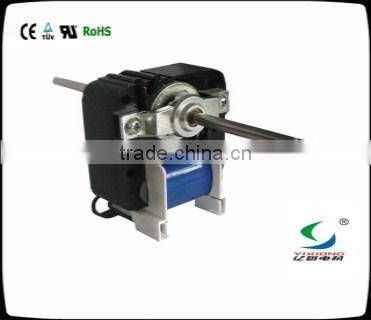

YJ 61series Mini Fan Motor
US$ 1.5 - 3.8
/ Carton
1000 Cartons(Min. Order)
- Ningbo/Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Yixiong | |
| Model Number | YJ61 |
Product Description
| Model | Voltage | Frequency | Current | Power | Speed | Class |
YJ61-10 | 110/220 VAC | 50-60 Hz | 0.18 A | 13.0 W | 1850 RPM | E/B/F |
YJ61-13 | 110/220 VAC | 50-60 Hz | 0.20 A | 16.0 W | 1800 RPM | E/B/F |
YJ61-16 | 110/220 VAC | 50-60 Hz | 0.24 A | 25.0 W | 2500 RPM | E/B/F |
YJ61-20 | 110/220 VAC | 50-60 Hz | 0.28 A | 27.0 W | 2400 RPM | E/B/F |
YJ61-25 | 110/220 VAC | 50-60 Hz | 0.31 A | 30.0 W | 2480 RPM | E/B/F |
YJ61-30 | 110/220 VAC | 50-60 Hz | 0.35 A | 32.0 W | 2450 RPM | E/B/F |
YJ61-40 | 110/220 VAC | 50-60 Hz | 0.43 A | 36.0W | 2400 RPM | E/B/F |
Motor size:
1. Stator diameter: 61.5mm
2. Shaft diameter: 4.5/5/5.5/6mm
3. Shaft length: As your request
4. Lead wire: 2*300mm, also can be made according to your demands
5. Number of pole: 2 pole
6. Rotation: CW/CCW
1. Stator diameter: 61.5mm
2. Shaft diameter: 4.5/5/5.5/6mm
3. Shaft length: As your request
4. Lead wire: 2*300mm, also can be made according to your demands
5. Number of pole: 2 pole
6. Rotation: CW/CCW
7.Insulation class:E/B/F/H
Application:
1. This shaded pole motor could be used for Fan-heater, refrigerator, Air-Conditioner, Microwave oven, Blender, Air-cleaner, Fan, Exhaust fan, Humidifier, Dehumidifier and Medical, Household and industrial appliances;
2. It is safty and reliable, low noise, characteristics hard, good starting, long life, etc.
2. This AC motor can be designed and produced according to your request.
1. This shaded pole motor could be used for Fan-heater, refrigerator, Air-Conditioner, Microwave oven, Blender, Air-cleaner, Fan, Exhaust fan, Humidifier, Dehumidifier and Medical, Household and industrial appliances;
2. It is safty and reliable, low noise, characteristics hard, good starting, long life, etc.
2. This AC motor can be designed and produced according to your request.
Delivery terms:
1,T/T in advance will be our popular payment terms.
2,We'd like to send you some samples for your close for your close inspectiong first.
3,We have detailed specifications. If you are interested in it, please write to me or talk me on TM.
