3700w without battery solar system three phase AC pump inverter
- 8888 Piece / Pieces per Month
- NINGBO OR SHENGZHEN OR SHANGHAI
- T/T Credit Card
You May Like
-
11kw three phase solar system water pump power inverters with VFD
-
15HP pumps inverter with variable frequency drive for solar pump system
-
high quality solar system water pump inverter for deep well pump
-
low price and high quality submersible pump 15kw solar power inverter
-
7500W solar system DC to AC pump inverter for sewage pump
-
3 phase centrifugal pump 3.7kw Solar systems sine wave pump inverters
Product Details
| Place of Origin | Zhejiang, China | Brand Name | BANGZHAO or OEM | |
| Model Number | BSPI-3700W | Specification | Normal | |
| Application | Commercial | Output Voltage (V) | 380v to 440v | |
| Load Power (W) | 3700w | Solar Power (W) | less than 4500w | |
| Work Time (h) | 24h |
Product Description
3700w without battery solar system for three phase AC pump inverter

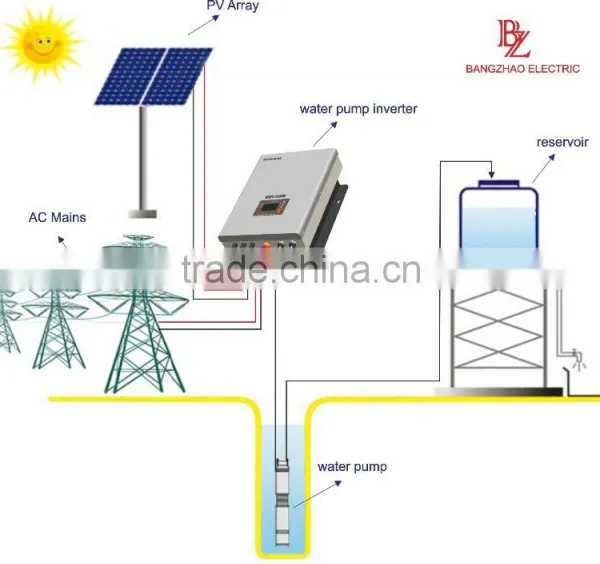

Solar Pumping System Introduction:
Bangzhao Solar pump system consists of the specialized pump inverter for PV, water pump and solar panels. This device widely used in domestic water, irrigation water, control of desert, animal husbandry, water supply for Sea Island, water treatment projects, etc. Water storage replaces battery and directly drives pumping, with high reliability, at the same time, it can reduce system cost and maintenance costs.
Product Features
1, Adopting the proposed dynamic VI maximum power point tracking (MPPT) control method & optimized SVPWM; fast response and stable operation; and the conversion efficiency achieves of 99.6%.
2, Adopting high-efficiency IPM (intelligentpower module) from Mitsubishiwith high reliability and high efficiency.
3, Designed with variable frequency driver (VFD), can be used in variable frequency speed regulation technology, greatly improves efficiency, and better to protect water pump and maximum utilizationof solar panels.
4, AC drive function. When is no sunshine, such as at night, solar pump inverter can connect to AC city power to work by manually if AC power is available.

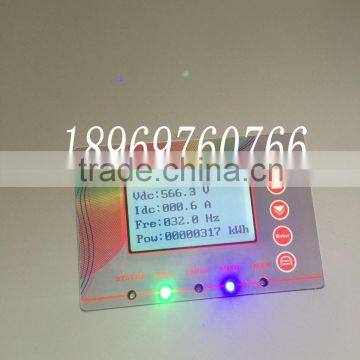

5, LCD display operating panel, can setting various parameters through LCD, easy to operation.
6, Complete protection function for PV input under voltage, PV input over voltage, input connection Reverse Polarity, DC over current, output, over load, short circuit, dry Well, overflow, dry running, and blocking protection.
Technical Specification
Model | Adapted pump motor | Max PV input power (KWP) | MPPT Tracking Voltage (V) |
Max. DC input voltage (V) | Rated output current(A) | Output frequency (Hz) | |
Rated power (kW) | Rated Voltage (V) | ||||||
BSPI-750W | 0.55~0.75 | 200~220 | 1 | 200~400 | 500 | 5 | 0~60 |
BSPI-1500W | 1.1~1.5 | 200~220 | 1.85 | 200~400 | 500 | 7 | 0~60 |
BSPI-2200W | 2.2 | 200~220 | 3 | 200~400 | 500 | 11 | 0~60 |
BSPI-3700W | 3~3.7 | 380~440 | 4.5 | 400~650 | 850 | 9 | 0~60 |
BSPI-5500W | 4~4.5 | 380~440 | 7 | 400~650 | 850 | 13 | 0~60 |
BSPI-7500W | 7.5 | 380~440 | 9 | 400~650 | 850 | 18 | 0~60 |
BSPI-11KW | 9.2~11 | 380~440 | 13 | 400~650 | 850 | 24 | 0~60 |
BSPI-15KW | 13~15 | 380~440 | 18 | 400~650 | 850 | 30 | 0~60 |
BSPI-18KW | 18.5 | 380~440 | 22 | 400~650 | 850 | 39 | 0~60 |
BSPI-22KW | 22 | 380~440 | 25 | 400~650 | 850 | 45 | 0~60 |
BSPI-30KW | 26~30 | 380~440 | 35 | 400~650 | 850 | 60 | 0~60 |
BSPI-37KW | 37 | 380~440 | 45 | 400~650 | 850 | 75 | 0~60 |
BSPI-45KW | 40~45 | 380~440 | 53 | 400~650 | 850 | 91 | 0~60 |
BSPI-55KW | 55 | 380~440 | 65 | 400~650 | 850 | 112 | 0~60 |
Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.
Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,
Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or wooden case for protection.
Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.
Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs and big capacity near 500pcs.
Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 7. What kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .
Q 8. What is the warranty period ?
A. Normally 1 year ,if order quantity enough can be extended to 3 years.
Q 8.How about the lifetime?
A:The life time for inverterl is 15-20years.
