Help CenterHOWO 6*4 Chassis, CIMC LINYU 15-25m3 Oil Tank Truck
Related Products
-
Dongfeng 6*4 Chassis, CIMC LINYU 15-25m3 Oil Tank TruckUS$ 35,000 - 50,000MOQ: 1 Unit -
Dongfeng Chassis, CIMC LINYU 15-25m3 Small Fuel Tank TruckUS$ 35,000 - 50,000MOQ: 1 Unit
-
Hot Sale CIMC LINYU 5-15m3 Oil Tanker TruckUS$ 18,000 - 30,000MOQ: 1 Unit
-
Dongfeng Chassis, CIMC LINYU 5-15m3 Small Fuel Tank TruckUS$ 18,000 - 30,000MOQ: 1 Unit
-
Dongfeng 4*2 Chassis, CIMC LINYU 6m3 Oil Tank TruckUS$ 15,000 - 30,000MOQ: 1 Unit
1. Product Features
Transport of goods:
Crude oil, Refined oil, Chemical liquid, Edible oil, etc.
Tank Material:
Carbon steel, stainless steel, aluminum alloy. Adopted BAOSTEEL and WISCO superior steel or aluminum alloy co-developed with ALCOA. Service temperature of some insulated liquid tanker can reach to 150℃, can be used for most of the material which need heat preservation, suit for the transport of crude oil, coal tar and bitumen etc.
Light weight:
Optimized structure and the aluminum frame make the kerb mass of CIMC LINYU aluminum alloy tank less than the other factory. Maximized actual loading weight can bring more profit to the owner.
Automatic welding:
Tank body fastener with automatic welding machine and vertical welding seam improve the welding quality and strength.
2. Detailed Parameter
Model |
CLY5257GJY |
Wheel base (mm) |
4325+1350 |
Chassis manufacturer |
SINO truck, HOWO |
Chassis model |
ZZ1257M4347C |
Engine |
WD615.92E, 266HP, EGR, diesel |
Steering system |
Power steering, ZF8098 |
Transmission |
Manual, HW15710, 10 speeds |
Front axle |
HOWO 7T, disc brake |
Rear axle |
ST16, 3.93 |
Tire |
11.00-20, 10+1 |
Cab |
HW76, Low-roof, one sleeper |
Tank volume(m3) |
15-25 |
Tank material |
Carbon steel, stainless steel, aluminum alloy |
Ball valve |
aluminum alloy DN80 |
Discharge rubber hose |
2 set |
Manhole |
Two, carbon steel, 20” |
Oil pump |
80YHCB-60, circular-arc cogwheel pump |
1. Brief Intrduction
Located in the ancient capital–Luoyang city
LUOYANG CIMC LINYU AUTOMOBILE CO.,LTD. a history of over 40 years in automobile manufacturing, and now has become an important back bone enterprise of CIMC Vehicle Investment Holding Co., Ltd (CIMC Vehicle Group for short).
The company owns a total asset of more than 700 million RMB, with over 1200 employees. Its main products consist of Linyu brand special purpose vehicle , passenger bus&Sanitation Vehicle. The annual production ability has reached 12000 units,With an extensive market covering domestic 31 provinces, the company has been exporting to majority country of the world. Up to now, the company has become the leading enterprise in tank truck filed.
2. Workshop
3. Customer visit

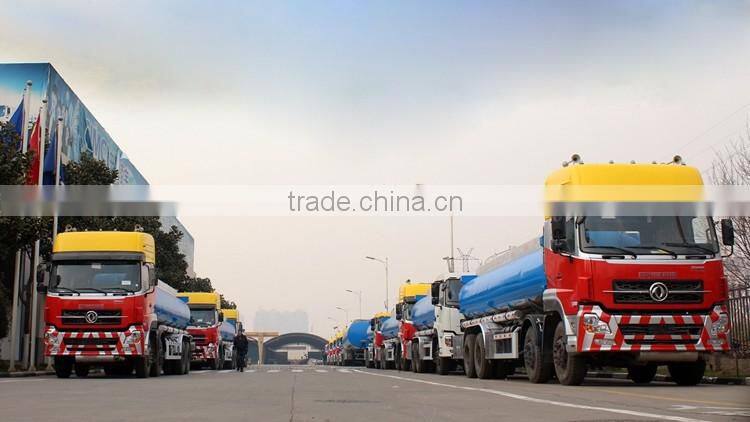

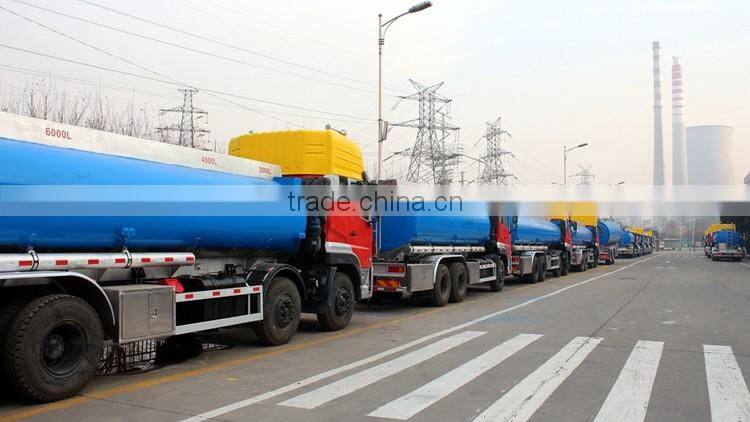

4. Shipment
1. Are you a manufacturer or trading company?
We are a manufacturer with a history of 40 years.
2. What chassis do you have?
HOWO, DONGFENG, HINO, FOTON, SHANCMAN, etc
3. what is the capacity of your tanker?
We have concrete mixer truck from 3-20m3, fuel tank truck from 5-30m3, cement truck from 20m3 t0 45m3, semi trailer can be provided as your different needs.
4. How about your guarantee?
Our guanantee is one year from the date of shipment, if there are any problems caused by the quality of our products, we will provide parts(wearing parts) or dispatch engineer to help you solve it.
