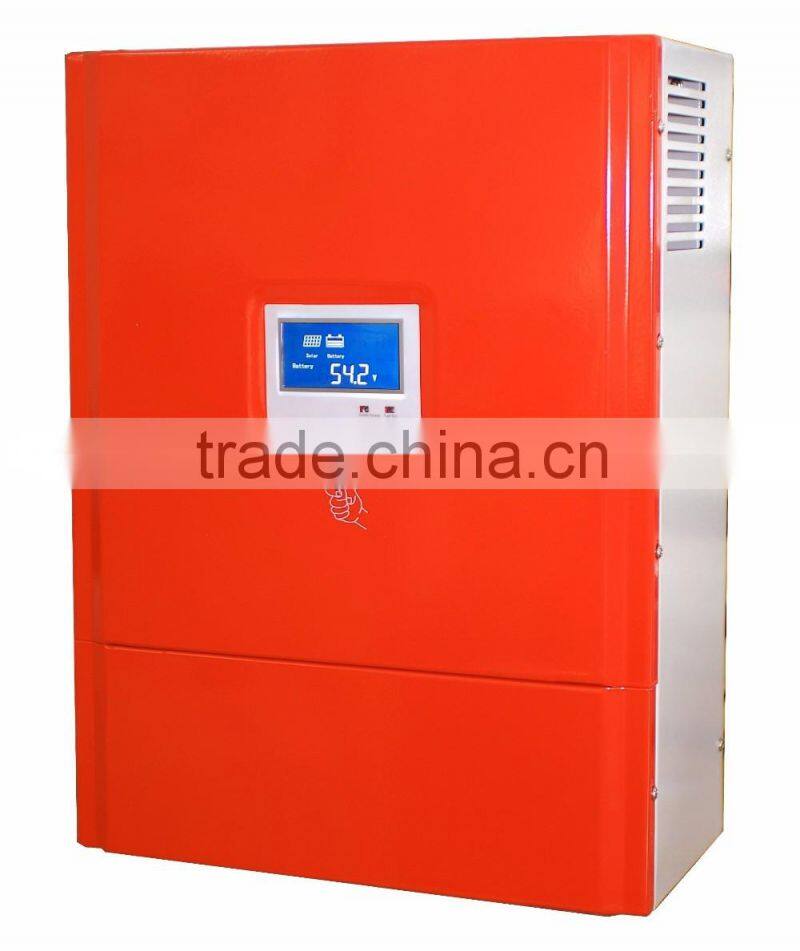

PWM Solar Charge Controller 96V-100A
PERFORMANCE FEATURES:
n Adopt PWM multistep sequential limiting current charge method, auto control multiple solar array connection or shut off orderly according to the battery group voltage change tendency.
n Adopt multiple-circuit charging-control circuit and individual killer switch on each circuit.
n With auto protection function of over charge, electronic short circuit, anti-reverse protection. Prevent the battery group reverse charging to the solar panel array at night.
n Big intuitionistic LCD screen shows the working status of solar panels, battery and controller. (the voltage, current, power of solar energy panel and battery)
n Power switch driving circuit is completely isolated from sampling circuit. The control signals is transmitted by opto isolation, with super-high disturbence rejection and stability.
n There are lightning protection device inside the controller. Limit instantaneous overvoltage which entered into solar panels under a level which the system can withstand; or unload the strong lightning current to the ground. To protect the equipment from lightning surge.
n Adopts the industrial-grade chips for all control, which can work under the cold, hot, humid conditions.
n Temperature compensation function. Compensate the temperature according different battery type.
n Fixable communication solution with RS-232, RS-485,USB,GPRS,Etherner,etc.
Model |
BZC96V-30A |
BZC96V-50A |
BZC96V-100A |
BZC96V-200A |
|||||
Battery group rated voltage |
96Vdc |
96Vdc |
96Vdc |
96Vdc |
|||||
Max. PV open circuit voltage |
176V |
176V |
176V |
176V |
|||||
PV Rated current |
30A |
50A |
100A |
200A |
|||||
Maximum power of solar panels |
2880Wp |
4800Wp |
9600Wp |
19200Wp |
|||||
Input PV module array number |
1 |
1 |
1/2 |
1/2 |
|||||
Function |
Auto stop charge, auto recharge voltage; Protection: connecting contrary, over current, short circuit, over heat etc. |
||||||||
Display mode |
LCD |
||||||||
Display content |
solar panel voltage, solar panel current, solar panel power, battery voltage, charge current |
||||||||
Floating Charge Voltage (adjustable) |
110Vdc |
110Vdc |
110Vdc |
110Vdc |
|||||
Stop charge voltage |
116Vdc |
116Vdc |
116Vdc |
116Vdc |
|||||
Recharge voltage |
108V |
108V |
108V |
108V |
|||||
Voltage drop between PV and battery |
1.5V |
||||||||
Max itself power consumption |
100mA-150mA |
||||||||
Work environment temperature |
-30-60°C |
||||||||
Relative humidity |
<90% No condensation |
||||||||
Applicable altitude |
The rated power should be reduced when it is higher than 2000m |
||||||||
Noise (1m) |
<40dB |
||||||||
Degree of protection |
IP20(Indoor) |
||||||||
Cooling method |
Forced air cooling |
||||||||
Communication interface (optional) |
RS485/USB/GPRS/Ethernet |
||||||||
Temperature compensation(optional) |
-4mv/°C/2V,-35°C~+80°C,Accuracy:±1°C |
||||||||
Product size (mm) |
520*430*200mm |
760*600*180mm |
585*585*980mm |
||||||
Weight |
10Kg |
26Kg |
55Kg |
||||||
