HTD-F35IC LED point light source :
Specifications
Hole Mount Punching Size | 26~30mm Diameter |
LED Chip Type | SMD RGB 5050 led |
LED Chip Quantity | 3 leds/pc |
Wattage | 0.72w/pc |
Beam Angle | >120 degrees |
Working Voltage | 12V DC |
Working Current | 60 mA |
Working Temperature | -30 ~ 60 centigrade |
Lifespan | >50,000 Hours |
Color | Multiple Colors |
Protection Grade | Waterproof IP65-IP68 |

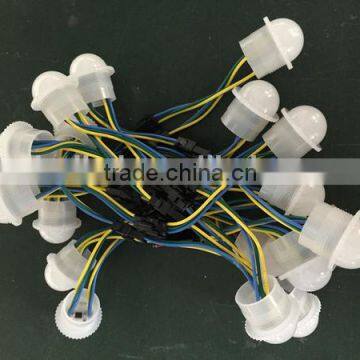

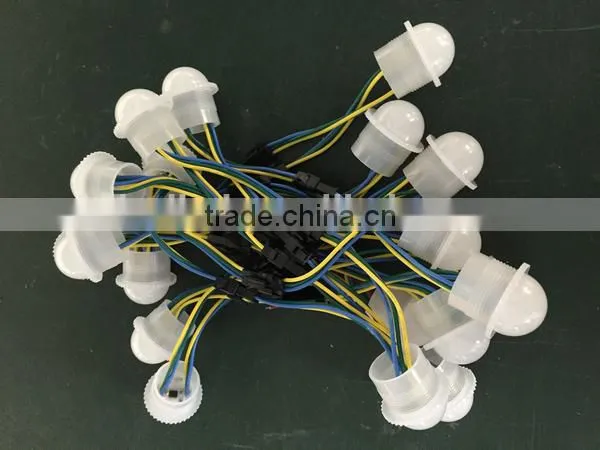

Product image:
Tips:
| #Controller technology parameters: (More detailed information please see the controller controller specification accessories.) | |||||||
| Item | Parameters | ||||||
| Input voltage | AC110V/220V (according to the end-user environment, the factory configuration) | ||||||
| Power plug | GB, the British regulations, the United States and its rules (based on end-user environment, the factory configuration) | ||||||
| Power consumption | 2W | ||||||
| Control Protocol | ICC/DMX512/1990 | ||||||
| Support chips | LPD6803/D705/D709/WS2801/DMX512/1990/1903 decoding device/drive. | ||||||
| Control points | 1200 Point 2048 Point 512 addresses (channels) | ||||||
| Gray scale level | 32level/256level | ||||||
| SD Card | Supports the FAT or FAT16 file system | ||||||
| Operating Temperature | –35℃—75℃ | ||||||
| Playback speed | Default of 20 frames / sec; switch DIP switch in between 1-40 and 8 adjustable speed | ||||||
| Indicator | Power indicator (Green Power), the playback speed of light (red, State) | ||||||
Connection mode (see below)
| 1.Connection controller and DC12V transformer; | |||||||
| 2.Controller meet ac 220V voltage. |
Shipping terms
Shipment Terms:EX-work,UPS,DHL,TNT others express door to door service; by sea; by air
Delivery: 3~25 days after order confirmed(according to actual order quantity)
Shipping port: Shenzhen, Mainland China
Payment terms
L/C T/T
Paypal / Western Union / HSBC / ESCROW/Bank of China/ICBC
