LED Point Full color pixel light HTD-F100
HTD - F100IC is made by Aluminum shell and PCB and red yellow, green, blue 3Pins line (high temperature resistant, coldresistant, UV resistant), including 12pcs 5050 RGB SMD LEDs, this product has high brightness, low power consumption,long life, low voltage, small attenuation, rich colors, etc. Products can achieve effect of flowing water, chase, scanning,etc. Depending on the installation, but it was a composition change different color characters, design, etc. Various kinds ofdynamic effect. Widely used in hotel, KTV entertainment and other indoor decorative lighting.This product can pick up maximum of 20 PCS, the combination of is strictly prohibited. Punch for 100mm in diameter. The power cord degree should be according to the actual possible maximum current, power products, wiring length (no morethan 5 m Suggestions) and low voltage transmission line pressure drop and decide.
Product Image
| Optical properties: | |||||||
| No. | Color | LED quantity | (lm/1LED) | Wavelength nm | LED Type | PCB (mm) | Subassembly |
| HTD-F100IC | Red | 3 | 3.3 | 619-635 | 5050RGB SMD LED | * | 20PCS/String |
| Green | 10 | 512-528 | |||||
| White | 2.7 | 463-475 | |||||
| HTD-F100IC Full color point light parameter: | |||||||
| Item | Parameter | Unit | |||||
| Working voltage | 24 | V | |||||
| Working power | 3 | W | |||||
| Operating Temperature | -40 ~60 | ℃ | |||||
| LED quantity | SMD5050 RGB/12pcs | ||||||
| IP level | IP66 | ||||||
| Hole diameter | 100 | mm | |||||
| Light source life | ≥50000 | ||||||
| Shine Angle | ≥140° | ||||||

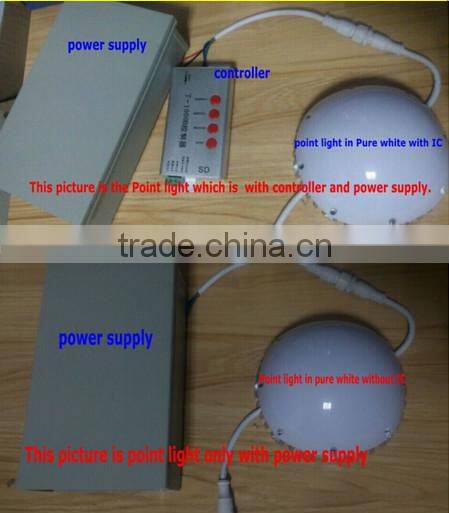

Connection mode (see below)
| 1.Connection controller and DC24V transformer; | |||||||
| 2.Controller meet ac 220V voltage. |
Tips:
| #Controller technology parameters: (More detailed information please see the controller controller specification accessories.) | |||||||
| Item | Parameters | ||||||
| Input voltage | AC110V/220V (according to the end-user environment, the factory configuration) | ||||||
| Power plug | GB, the British regulations, the United States and its rules (based on end-user environment, the factory configuration) | ||||||
| Power consumption | 2W | ||||||
| Control Protocol | ICC/DMX512/1990 | ||||||
| Support chips | LPD6803/D705/D709/WS2801/DMX512/1990/1903 decoding device/drive. | ||||||
| Control points | 1200 Point 2048 Point 512 addresses (channels) | ||||||
| Gray scale level | 32level/256level | ||||||
| SD Card | Supports the FAT or FAT16 file system | ||||||
| Operating Temperature | –35℃—75℃ | ||||||
| Playback speed | Default of 20 frames / sec; switch DIP switch in between 1-40 and 8 adjustable speed | ||||||
| Indicator | Power indicator (Green Power), the playback speed of light (red, State) | ||||||
