LPD6803 LED point light

FOB Price

USD $3.5 - $4.33 / Piece

1 Piece(Min.Order)

Supply Ability 30000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

LED Light Source:	Epistar SMD5050 RGB/12pcs	Input Voltage(V):	DC24V	Lamp Power:	3
Color Temperature(CCT):	Other, full color	Working Temperature(℃):	-20, 50	Working Lifetime(Hour):	30000
Lamp Body Material:	Plastic	IP Rating:	IP66	Certification:	CE, EMC, FCC, LVD
Emitting Color:	Changeable	Place of Origin:	Guangdong, China	Brand Name:	HTD
Model Number:	HTD-F100

Product Description

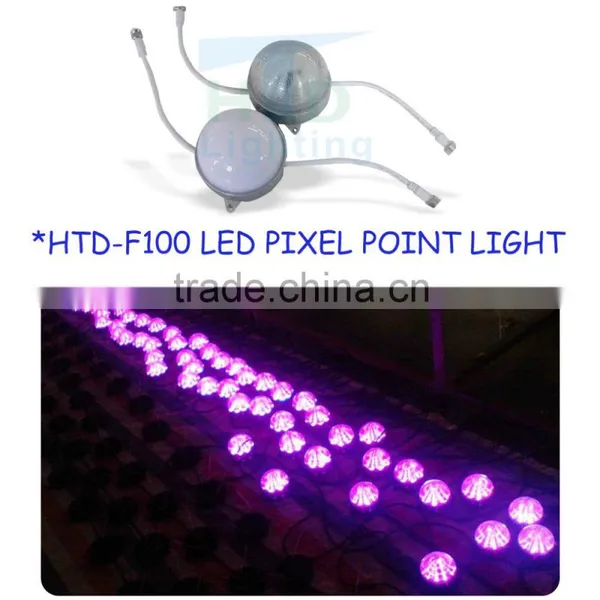

LED Point Full color pixel light HTD-F100

Product Description

HTD - F100IC is made by Aluminum shell and PCB and red yellow, green, blue 3Pins line (high temperature resistant, coldresistant, UV resistant), including 12pcs 5050 RGB SMD LEDs, this product has high brightness, low power consumption,long life, low voltage, small attenuation, rich colors, etc. Products can achieve effect of flowing water, chase, scanning,etc. Depending on the installation, but it was a composition change different color characters, design, etc. Various kinds ofdynamic effect. Widely used in hotel, KTV entertainment and other indoor decorative lighting.This product can pick up maximum of 20 PCS, the combination of is strictly prohibited. Punch for 100mm in diameter. The power cord degree should be according to the actual possible maximum current, power products, wiring length (no morethan 5 m Suggestions) and low voltage transmission line pressure drop and decide.

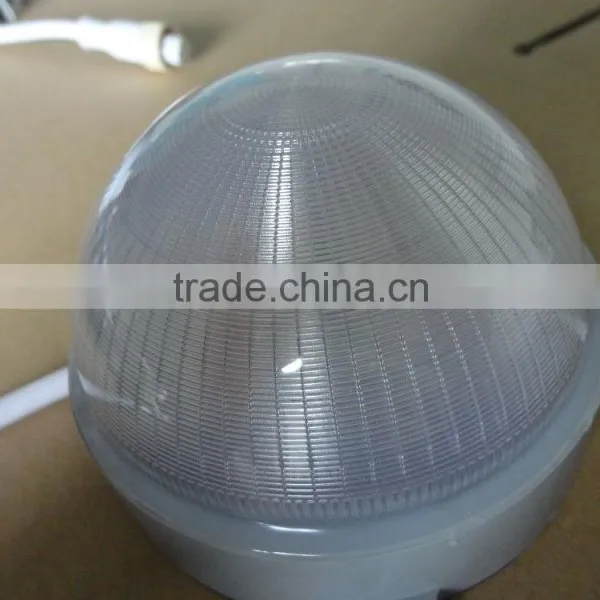

Product Image

Optical properties:
No.	Color	LED quantity	(lm/1LED)	Wavelength nm	LED Type	PCB (mm)	Subassembly

HTD-F100IC	Red	3	3.3	619-635	5050RGB SMD LED	*	20PCS/String
	Green		10	512-528
	White		2.7	463-475
HTD-F100IC Full color point light parameter:
Item			Parameter			Unit
Working voltage			24			V
Working power			3			W
Operating Temperature			-40 ~60			℃
LED quantity			SMD5050 RGB/12pcs
IP level			IP66
Hole diameter			100			mm
Light source life			≥50000
Shine Angle			≥140°

Connection mode (see below)

1.Connection controller and DC24V transformer;
2.Controller meet ac 220V voltage.

Tips:

#Controller technology parameters: (More detailed information please see the controller controller specification accessories.)
Item				Parameters
Input voltage				AC110V/220V (according to the end-user environment, the factory configuration)
Power plug				GB, the British regulations, the United States and its rules (based on end-user environment, the factory configuration)
Power consumption				2W
Control Protocol				ICC/DMX512/1990
Support chips				LPD6803/D705/D709/WS2801/DMX512/1990/1903 decoding device/drive.
Control points				1200 Point 2048 Point 512 addresses (channels)
Gray scale level				32level/256level
SD Card				Supports the FAT or FAT16 file system
Operating Temperature				–35℃—75℃
Playback speed				Default of 20 frames / sec; switch DIP switch in between 1-40 and 8 adjustable speed
Indicator				Power indicator (Green Power), the playback speed of light (red, State)
