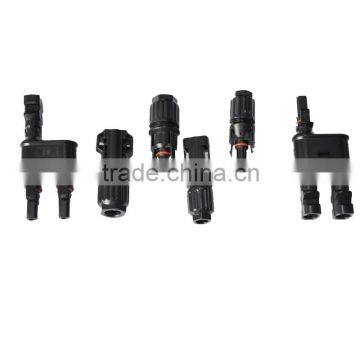

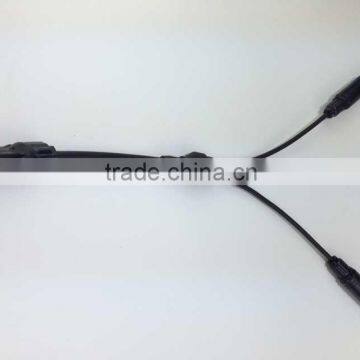

solar system 3-phase connector plug B4C and B4D

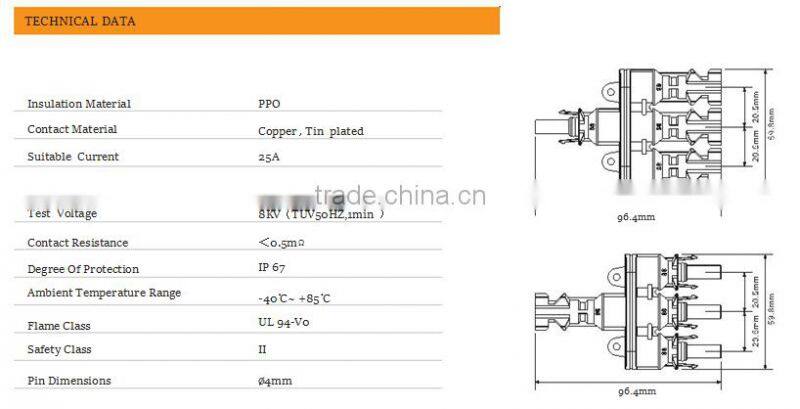

Product No. |
B4C/B4D |
Rated voltage |
TUV 1000V DC / UL 600V DC |
Rated current |
30A |
Suitable cable cross sections |
2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG |
Terminal size |
Φ4.0mm |
Test voltage |
DC 8KV 1min |
Pollution degree |
2 |
Protection class |
Class Ⅱ |
Terminal Material |
Tinned copper |
Contact resistance |
≤ 5mΩ |
Insulation Materials |
PPO |
IP rating |
IP67(IEC 60529) |
Pull-out force |
≥ 50N |
Insertion Force |
≤ 50N |
Test temperature |
-40℃~ +85℃ |
Flame Class |
UL94V - 0 |
Our Service:
1.Quality:
l Bangzhao sends all the items with outgoing quality inspection report.
l We guarantee 100% good quality when the products are sent out of factory.
2.Shipping:
l Bangzhao ship to world wide;
l We ship the goods by the fastest way of EMS,UPS,DHL and TNT,reaching most countries within 7 days.
3.Return Policy:
l Once we shipped the products,our after-sale service will send you the tracking number;
l If your item is not as described or faulty when you receive it,we will replace it for you with no additional charge.
l If the item is found non-defective,the item will be sent back to the buyer at buyer’s expense.
