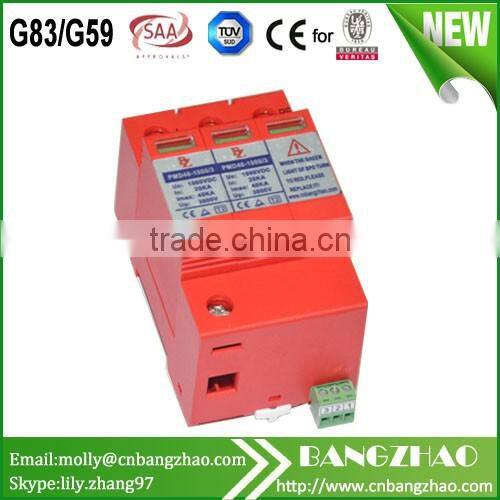

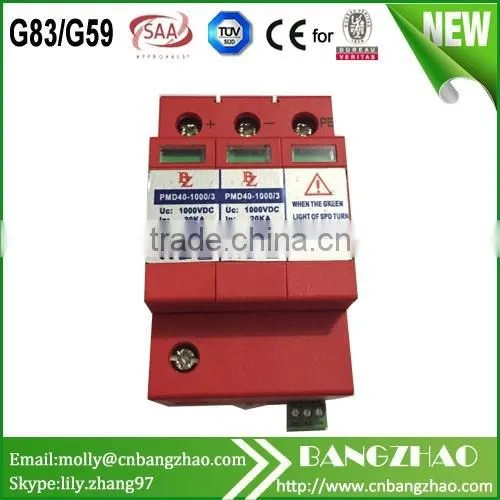

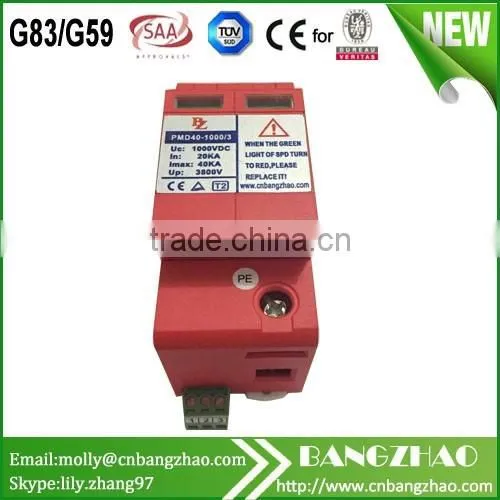

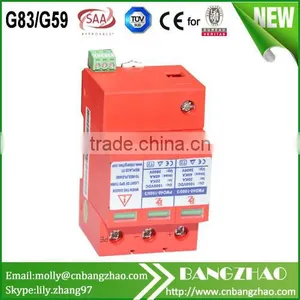

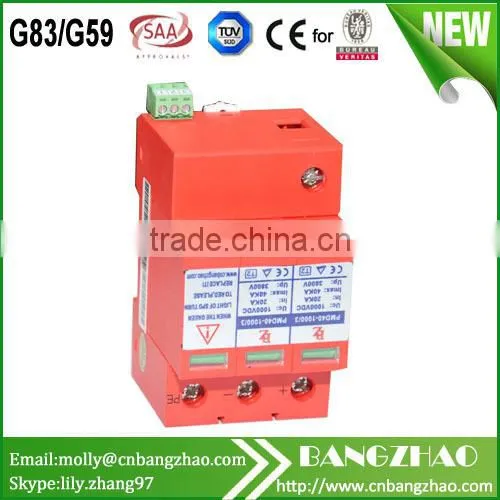

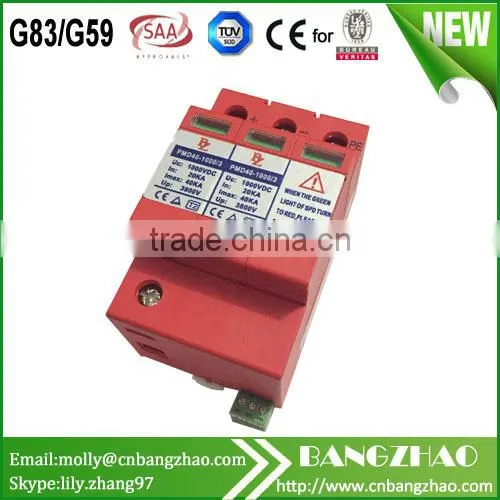

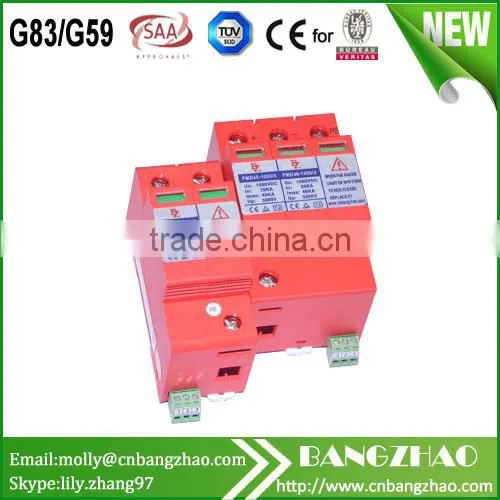

PV 2P & 3P SPD for solar panels system
1. Product Function
Products are mainly used in the DC power supply lighting protection and over-voltage operation protection function.
2. Main features:
Use high quality varistor, reliable high-quality assurance and stable performance
Modular design, can be charged plug, easy to test or replace
With remote alarm device, easy for remote monitoring
Adopt temperature control circuit technology, over-current and over-voltage double automatic protection circuit
With working and fault display, degradation status is clear at a glance
Fast response time, large discharge current capacity, low residual voltage
easy to install, maintain simple
3. Technical Data
Product Model | PMD40-1000/2 | ||
Nominal Voltage | 1000VDC | 800VDC | 500VDC |
Max Continuous Voltage | 1200VDC | ||
Nominal Discharge Current(8/20μs) | 20kA | ||
Max Discharge Current Capacity(8/20μs) | 40kA | ||
Protection Level(8/20μs) | ≤3300V | ||
Cross-Sectional Area of Access Wire | ≥10mm2 | ||
Dimension | 90×64×54 mm | ||
Working Environment | Temperature-40~+85℃,Relative Humidity≤95%(25℃) | ||
Altitude | <5000m | ||
5. Installation Method and Precautions:
(1) The power connecting wire use multi-strand copper wire and not less than 6mm2, ground wire use multi-strand copper wire and not less than 10mm2. Connecting wire should be short, straight, thick. Ground Resistance: R≤4Ω
(2) The front-end of SPD should be with appropriate fuse in series or be disconnected. (3) Must disconnect power when install, prohibited hot-line operation.
(4) Insert Lightning protection module in place correctly after finished installation, check if working normally.
(5) When the SPD module fault display window indication red (remote communication terminal output an alarm signal), then means the SPD happen fault and should be replaced.
(6) SPD not need special maintenance, just need regularly check if connections is loose, status indication is normal.
Q 1. What's the payment term?
A. We accept TT, Western Union,Paypal,MoneyGram.
Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-5 days for minimum order quantity.
Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or wooden case for protection.
Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.
Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 1000pcs.
Q 6.Where is your market?
A. Our products are popular in Australia, South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 7. What kind of certificate you have ?
A. Our company already achieve CE,TUV.
Q8. What is the warranty period ?
A. Normally 12 months.
OEM Services
1.Logo
Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo.
2.Label
Please offer us your own model numbers.
3. Manual
Please offer us the finished manual file that can be printed directly.
Lead Time
1.Sample orders will be delivered from our factory within 3-5 working days.
2.General orders will be delivered from our factory within 15 working days.
3.Big orders will be delivered from our factory within 30working days at most
Shipment
1.By EMS,DHL,FedEx,TNT,UPS or other express.
2.By our forwarding agent(by air or by sea).
3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
