High Quality Photovoltaic Accessories 2 Input 1 Output MC4 Branch PV Connector

High Quality Photovoltaic Accessories 2 Input 1 Output MC4 Branch PV Connector photo-1
High Quality Photovoltaic Accessories 2 Input 1 Output MC4 Branch PV Connector photo-2
High Quality Photovoltaic Accessories 2 Input 1 Output MC4 Branch PV Connector photo-3
High Quality Photovoltaic Accessories 2 Input 1 Output MC4 Branch PV Connector photo-4
High Quality Photovoltaic Accessories 2 Input 1 Output MC4 Branch PV Connector photo-5
High Quality Photovoltaic Accessories 2 Input 1 Output MC4 Branch PV Connector photo-6
US$ 1 - 10 MOQ: 100 Pairs
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Bangzhao
Model Number:
B4A/B4B
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai or Shengzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Bangzhao
Model Number B4A/B4B
Type Other, solar power system
Application Power
Gender Male
Product Description





  High Quality Photovoltaic accessories for branch PV connector

Product No.

B4A/B4B

Rated voltage

TUV 1000V DC / UL 600V DC

Rated current

30A

Suitable cable cross sections

2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG

Terminal size

Φ4.0mm

Test voltage

DC 8KV 1min

Pollution degree

2

Protection class

Class

Terminal Material

Tinned copper

Contact resistance

≤ 5mΩ

Insulation Materials

PPO

IP rating

IP67(IEC 60529)

Pull-out force

≥ 50N

Insertion Force

≤ 50N

Test temperature

-40℃~ +85℃

Flame Class

UL94V - 0

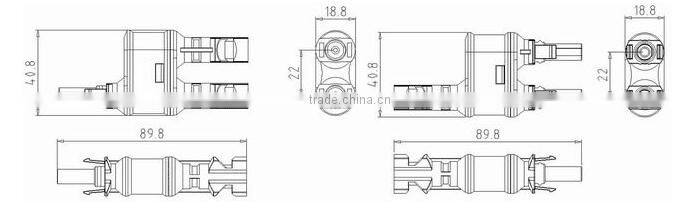

Product Overviews

High Quality Photovoltaic accessories 2 input 1 output MC4 branch PV connector

  High Quality Photovoltaic accessories for branch PV connector



High Quality Photovoltaic accessories 2 input 1 output MC4 branch PV connector

 High Quality Photovoltaic accessories 2 input 1 output MC4 branch PV connectorHigh Quality Photovoltaic accessories 2 input 1 output MC4 branch PV connectorHigh Quality Photovoltaic accessories 2 input 1 output MC4 branch PV connector



High Quality Photovoltaic accessories 2 input 1 output MC4 branch PV connector



High Quality Photovoltaic accessories for branch PV connector



Our Services



Our Service:

1.Quality:

Bangzhao sends all the items with outgoing quality inspection report.

We guarantee 100% good quality when the products are sent out of factory.

2.Shipping:

Bangzhao ship to world wide;

We ship the goods by the fastest way of EMS,UPS,DHL and TNT,reaching most countries within 7 days.

3.Return Policy:

Once we shipped the products,our after-sale service will send you the tracking number;

If your item is not as described or faulty when you receive it,we will replace it for you with no additional charge.

If the item is found non-defective,the item will be sent back to the buyer at buyer’s expense.
