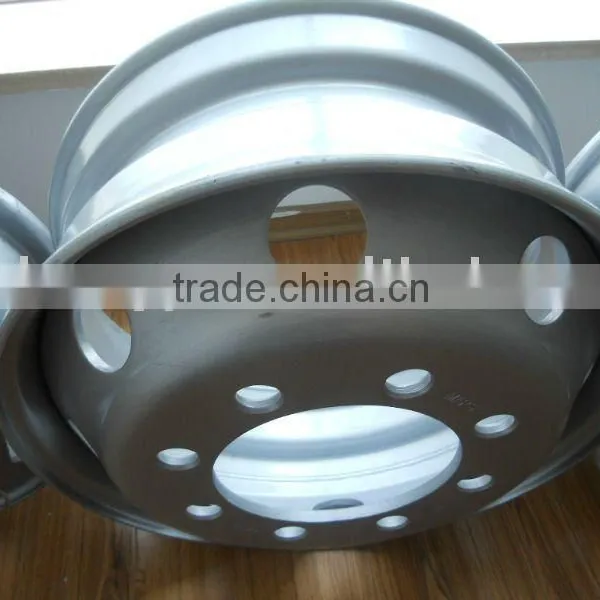

Truck steel wheel rim 22.5*9.00

Specifications

1)Truck steel wheel rim 22.5*9.00
2)Weight: 46/51kgs
3)Color: Silver/blue
4)Bolt No:10-27mm
5)Equipped tyre;12R22.5 13R22.5

Truck steel wheel rim 22.5*9.00

are one of the  maily truck steel wheel factory in china,Our production is the following size:



Tube steel wheel: 5.50F-16 6.00G-16  6.50-16  6.50-20  7.00T-20  7.50V-20  8.00V-20  8.50-20  8.50-24 9.00V-20

Tubeless steel wheel: 19.5x6.75  22.5x11.75  22.5x6.75 22.5x7.50  22.5x9.00  22.5x8.25



Wheel size	Bolt Hole			P.C.D  (mm)	Center Bore DIA  (mm)	DISC Thick  (mm)	Offset (mm)	TEC.TYPE	QTY/ 20GP
	Hole DIA(mm)	NO	Nut Type
22.5×9.00
22.5×9.00	Φ27	10	1*45	Φ335	Φ281	14           16	175	12R22.5      215/75R 22.5  298/80R 22.5  315/80R 22.5	280
22.5×9.00	Φ32	10	SR22	Φ285.75	Φ222		178
22.5×9.00	Φ26	10	1*45	Φ285.75	Φ221		175
22.5×9.00	Φ32	8	SR22	Φ285	Φ222		175
22.5×9.00	Φ32	8	SR22	Φ275	Φ214		175
