2U Height 600VA Line Interactive UPS Power Supply

2U Height 600VA Line Interactive UPS Power Supply thumbnail-1
2U Height 600VA Line Interactive UPS Power Supply thumbnail-2
2U Height 600VA Line Interactive UPS Power Supply photo-1
2U Height 600VA Line Interactive UPS Power Supply photo-2
US$ 60 - 70 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
JETPOWER
Model Number:
600S
Contact Supplier Request Quote Chat Now
Qingdao Powtech Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name JETPOWER
Model Number 600S
Phase Single Phase
Protection Short Circuit
Weight 9.6KGS
Output Voltage 115/230VAC
Type Line Interactive
Application Other, Communication,computer,monitoring etc,

Seagull Series1U/2U Height Rack Mount UPS,Line Interactive UPS(500VA-1000VA)

Product Description

Seagull Series1U/2U Height Rack Mount UPS, Line Interactive UPS(500VA-000VA)



Main Features:



1) Compact 1U or 2U design (1U for 500 ~800VA, 2U for 600~1000VA)

2) Provides line-interactive design and true sine wave output

3) Microprocessor control guarantees high reliability

4) Built-in Boost and Buck AVR to stabilize input voltage

5) User-Replaceable hot swappable battery design & cold startup capability

6) Enable to extend runtime with scalable external battery pack (inbuilt 10A battery charger)

7) Fully protection for overload, short-circuit, overheat and battery over discharge protection

8) RS232 /USB communication port

9) SNMP Card SLOT available





Technical Specifications:

Model

600S

600L

1000S

1000L

500S

800S

Capacity

600VA / 420W

600VA / 420W

1000VA / 700W

1000VA / 700W

500VA / 300W

800VA / 500W

Overview

Surge Protection Only (VA)

600VA

600VA

1000VA

1000VA

500VA

800VA

Outlook

19”/2U

19”/2U

19”/2U

19”/2U

19”/1U

19”/1U

Design Type

Line Interactive

Waveform

Pure sine wave

AVR Function

Boost, Buck

Input

Nominal Voltage

115 or 230Vac

Voltage Range

72~144V/145~275V

Frequency Range

60Hz-->115V/50Hz-->230V±6Hz

Power Line Surge

1482/476 Joules

1482/320 Joules

Socket Type

Power Cord+C.B->115V

Inlet Socket+C.B->230V

Output

Nominal Voltage

115/230Vac

Voltage Range (AC Mode)

100~127V/200~253V (+10~-13%)

Voltage Range (Batt. Mode)

115/230v±6%

Frequency Stability

50/60Hz +/- 0.5%

Socket Q'ty (Backup+Surge)

 (NEMA/IEC)*4

Transfer Time

< 4ms (typical)

Overload

Protection (AC Mode)

  100%~120%   1min S/D

Protection (Batt Mode)

100%~ 120%->25Sec S/D,    >120%->immed UPS Off.

Battery

Battery voltage

12VDC

12VDC

24VDC

24VDC

12VDC

12VDC

Battery Capacity

12V/7AH*1

NA

12V/7AH*2

NA

6V/7AH*2

6V/9AH*2

External Battery

No

Yes

No

Yes

No

No

DC Cold Start

Yes

Built-In Charger

1A Max.

6~10A Max.

1A Max.

6~10A Max.

1A Max.

Charger Over Protection

Yes

Charging When UPS off

Yes

Microprocessor Control

Yes

Communication

Port

RS232 or USB

Monitoring Software

UPSilon2000

SNMP Card (optional)

DP801 Slot

Display

LED

4 LEDs on Front Panel

LED Status

Line, Batt Mode/charger, Overload/Fault

LCD

option

Environment

Temperature

0-40 degree C

Humidity

3000 Meters max Elevation 10-95%

Audible Noise

Less than 45dBA (at 1M)

Physical

Dimension(D*W*H), mm

280*430*89

300*430*44

350*430*44

Net Weight (Kg)

9.6 kg

8kg

12.4kg

9kg

9.6kgs

12.4kgs

L for long backup time,S for standard backup time

Specifications subject to change without prior notice.

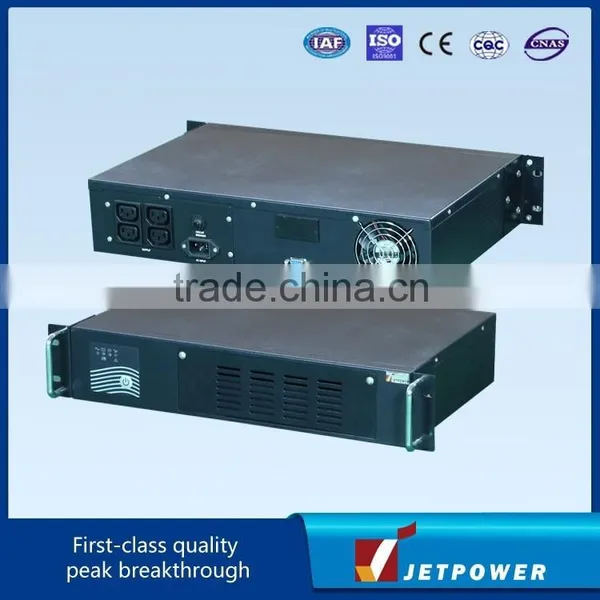

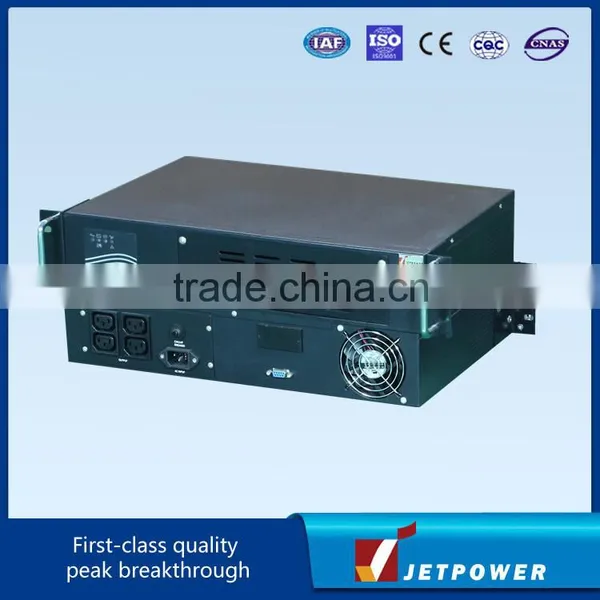

Detailed Images



2U Height 600VA Line Interactive UPS Power Supply
Packaging & Shipping



2U Height 600VA Line Interactive UPS Power Supply
2U Height 600VA Line Interactive UPS Power Supply
Certifications



2U Height 600VA Line Interactive UPS Power Supply



 2U Height 600VA Line Interactive UPS Power Supply



Why choose us

1. Major manufacturer,Competitive price, good quality and delivery in time

2. ISO9001:2008 certification

3. Many years' production experience
