1000VA Line Interactive UPS Power Supply
- 500 Piece / Pieces per Month
- Qingdao
- T/T
- Stackable Rack Energy Storage System Home energy storage system 5kWh 10kWh 15kWh and 20kWh
- Schneider Electric UPS
- Solar Generator With 5000W Inverter Portable Pull Rod LiFePO4 Battery Power Station
- 3000W Power bank EPS AC220V portable energy storage home power supply
- 5KW Outdoor Mobile Portable power station 220V Type-C DC12V DC5V Output UPS
- 500W portable UPS LFP Battery Solar Generator Backup Power Station
Product Details
Place of Origin: | Shandong, China | Brand Name: | JETPOWER | Model Number: | 1000S |
Phase: | Single Phase | Protection: | Short Circuit | Weight: | 12.4KGS |
Output Voltage: | 115/230VAC | Type: | Line Interactive | Application: | Other, Communication,computer,monitoring etc, |
Product Description

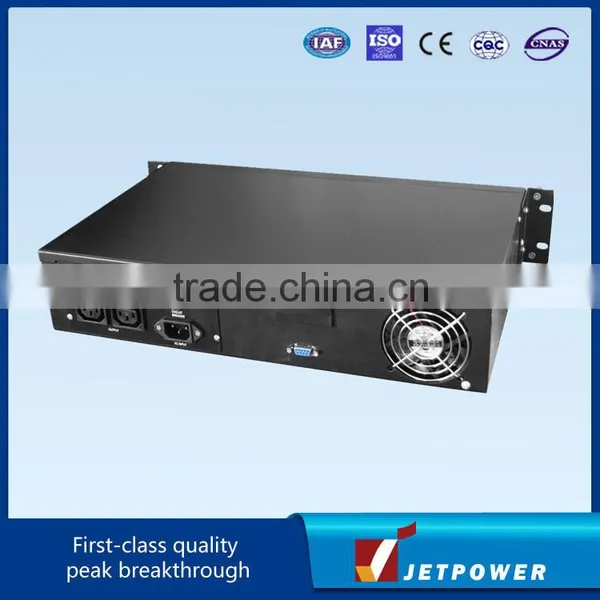

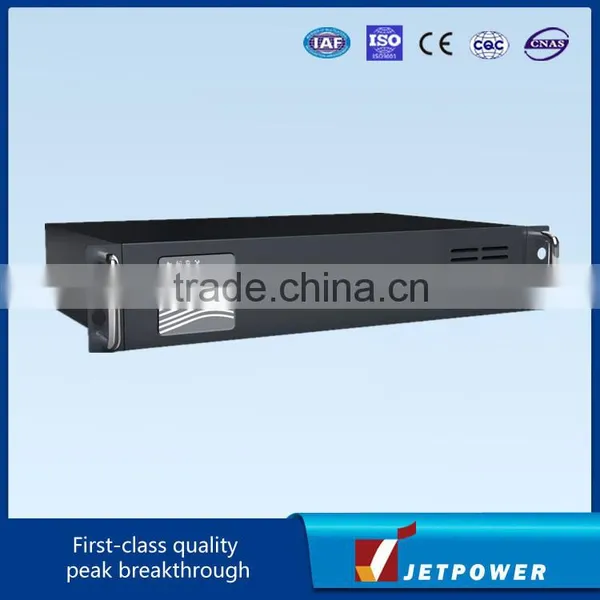

1U/2U Height Rack Mount UPS/Line interactive UPS(500VA-1000VA) Seagull series
1U/2U Height Rack Mount UPS, Line Interactive UPS(500VA~1000VA) Seagull series
Main Features
1) Compact 1U or 2U design (1U for 500 ~800VA, 2U for 600~1000VA)
2) Provides line-interactive design and true sine wave output
3) Microprocessor control guarantees high reliability
4) Built-in Boost and Buck AVR to stabilize input voltage
5) User-Replaceable hot swappable battery design & cold startup capability
6) Enable to extend runtime with scalable external battery pack (inbuilt 10A battery charger)
7) Fully protection for overload, short-circuit, overheat and battery over discharge protection
8) RS232 /USB communication port
9) SNMP Card SLOT available
Technical Specifications:
Model | 600S | 600L | 1000S | 1000L | 500S | 800S | |
Capacity | 600VA / 420W | 600VA / 420W | 1000VA / 700W | 1000VA / 700W | 500VA / 300W | 800VA / 500W | |
Overview | Surge Protection Only (VA) | 600VA | 600VA | 1000VA | 1000VA | 500VA | 800VA |
Outlook | 19”/2U | 19”/2U | 19”/2U | 19”/2U | 19”/1U | 19”/1U | |
Design Type | Line Interactive | ||||||
Waveform | Pure sine wave | ||||||
AVR Function | Boost, Buck | ||||||
Input | Nominal Voltage | 115 or 230Vac | |||||
Voltage Range | 72~144V/145~275V | ||||||
Frequency Range | 60Hz-->115V/50Hz-->230V±6Hz | ||||||
Power Line Surge | 1482/476 Joules | 1482/320 Joules | |||||
Socket Type | Power Cord+C.B->115V Inlet Socket+C.B->230V | ||||||
Output | Nominal Voltage | 115/230Vac | |||||
Voltage Range (AC Mode) | 100~127V/200~253V (+10~-13%) | ||||||
Voltage Range (Batt. Mode) | 115/230v±6% | ||||||
Frequency Stability | 50/60Hz +/- 0.5% | ||||||
Socket Q'ty (Backup+Surge) | (NEMA/IEC)*4 | ||||||
Transfer Time | < 4ms (typical) | ||||||
Overload | Protection (AC Mode) | 100%~120% 1min S/D | |||||
Protection (Batt Mode) | 100%~ 120%->25Sec S/D, >120%->immed UPS Off. | ||||||
Battery | Battery voltage | 12VDC | 12VDC | 24VDC | 24VDC | 12VDC | 12VDC |
Battery Capacity | 12V/7AH*1 | NA | 12V/7AH*2 | NA | 6V/7AH*2 | 6V/9AH*2 | |
External Battery | No | Yes | No | Yes | No | No | |
DC Cold Start | Yes | ||||||
Built-In Charger | 1A Max. | 6~10A Max. | 1A Max. | 6~10A Max. | 1A Max. | ||
Charger Over Protection | Yes | ||||||
Charging When UPS off | Yes | ||||||
Microprocessor Control | Yes | ||||||
Communication | Port | RS232 or USB | |||||
Monitoring Software | UPSilon2000 | ||||||
SNMP Card (optional) | DP801 Slot | ||||||
Display | LED | 4 LEDs on Front Panel | |||||
LED Status | Line, Batt Mode/charger, Overload/Fault | ||||||
LCD | option | ||||||
Environment | Temperature | 0-40 degree C | |||||
Humidity | 3000 Meters max Elevation 10-95% | ||||||
Audible Noise | Less than 45dBA (at 1M) | ||||||
Physical | Dimension(D*W*H), mm | 280*430*89 | 300*430*44 | 350*430*44 | |||
Net Weight (Kg) | 9.6 kg | 8kg | 12.4kg | 9kg | 9.6kgs | 12.4kgs |
L for long backup time,S for standard backup time
1. Major manufacturer,Competitive price, good quality and on-time delivery
2. ISO9001:2008 certification
3. Many years' production experience
1.Best prices
2.Professional after-sale response
3. Small order accepted
4. Excellent workmanship
5.Customized
