Product Details
Place of Origin: | Shandong, China | Brand Name: | OPTELEC | Model Number: | SDB-1000 |
Product Description

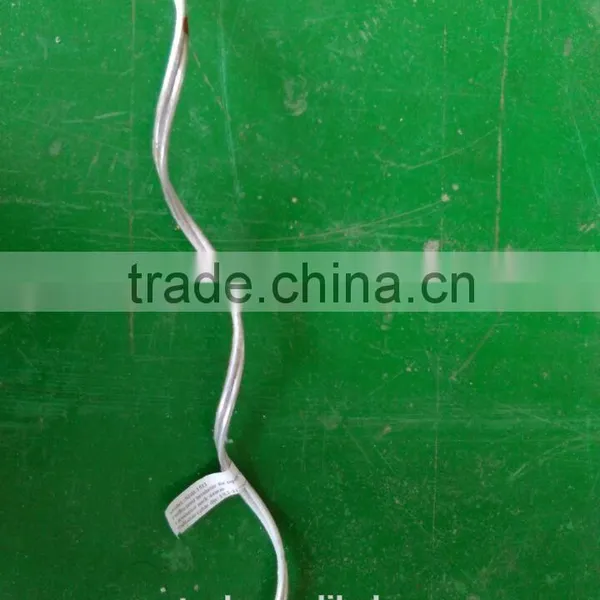

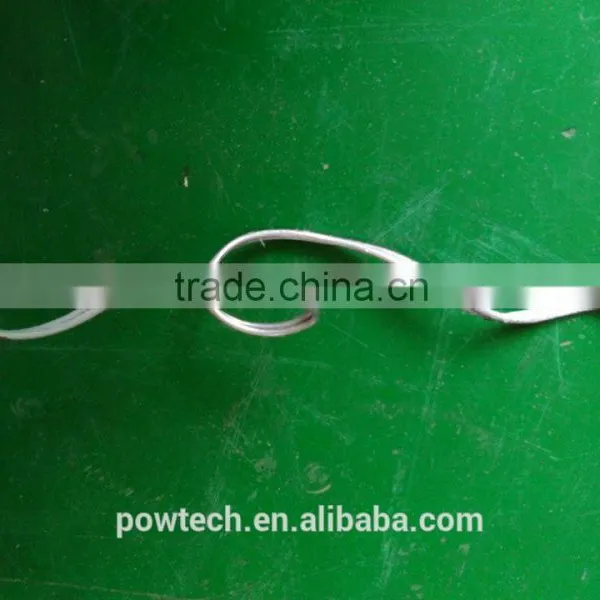

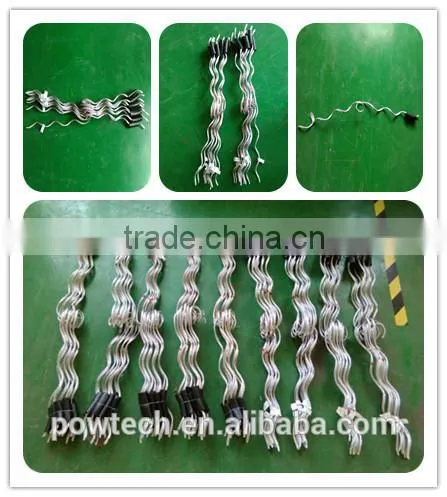

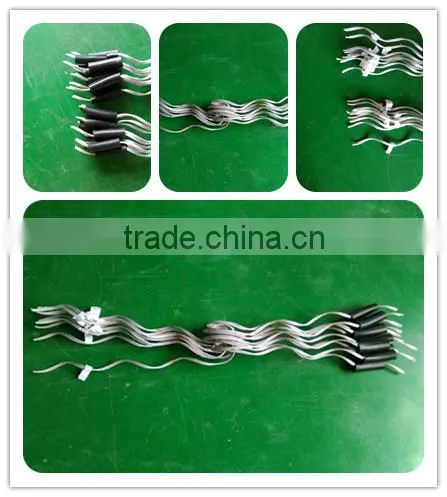

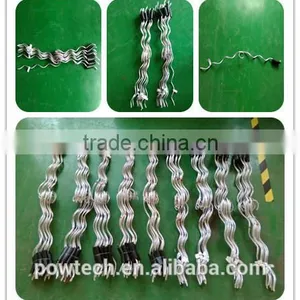

Top tie/Distribution Line ties
Helical insulator distribution tie,suitable for bare conductor and insulated wire used cooperatively with P-10 type pin insulators(neck diameterØ74)
Data sheet:
Model | Applicable diameter of conductor(mm) | Product parameters | Applicable international wire | ||||
Color code | Number in each group | LJ | Ordinary insulation 10KV | Thinner insulation 10KV | |||
SDB-1000 | 4.83 | 5.46 | Blue | 2 | 16 |
| 10 |
SDB-1001 | 5.47 | 6.20 | Brown | 2 |
|
| 16 |
SDB-1002 | 6.21 | 7.04 | Orange | 2 | 25 |
|
|
SDB-1003 | 7.05 | 8.00 | Purple | 2 | 35 |
|
|
SDB-1004 | 8.01 | 9.07 | Red | 2 | 50 |
|
|
SDB-1005 | 9.08 | 10.29 | Yellow | 2 |
|
|
|
SDB-1006 | 10.3 | 11.66 | Blue | 2 | 70 |
|
|
SDB-1007 | 11.67 | 13.21 | Orange | 2 | 95 | 10.16 |
|
SDB-1008 | 13.22 | 14.94 | Red | 2 | 120 |
| 25 |
SDB-1009 | 14.95 | 16.89 | Purple | 2 | 150 | 25,35 | 35,50 |
SDB-1010 | 16.9 | 19.18 | Brown | 2 | 185,210 | 50 | 70 |
SDB-1011 | 19.2 | 21.79 | Red | 2 | 240 | 70,95 | 95,120 |
SDB-1012 | 21.82 | 24.59 | Blue | 2 | 300 | 120,150 | 150,185 |
SDB-1013 | 24.61 | 27.84 | Green | 2 | 400 | 185 | 240 |
SDB-1014 | 27.85 | 31.50 | Yellow | 2 |
|
|
|
If any requirement,Please feel free to get in touch with us asap.
1.Excellent quality
2.Favoured price
3.Professional after-sales service
4.Experienced workers team
5.ADSS/OPGW cable,hardware,cable fittings leading manufacturer from China
6.Customized
